C205 (Hands Free) (Instrument Panel Side) 10 Way

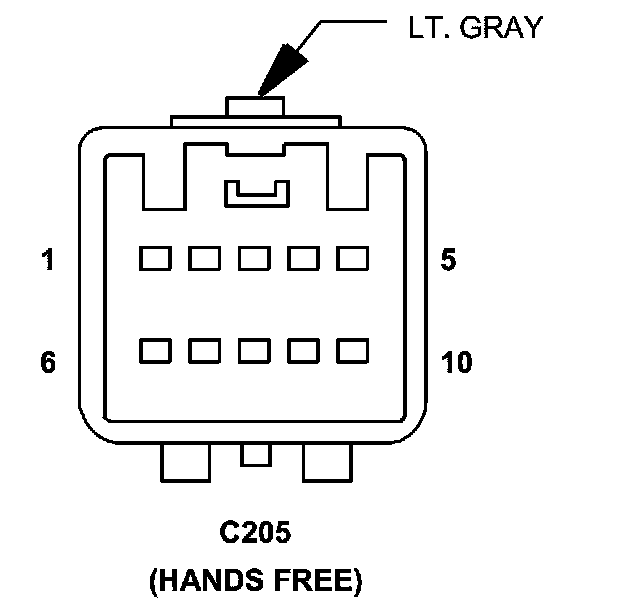

Connector (HANDS FREE) - (INSTRUMENT PANEL SIDE) 10 WAY

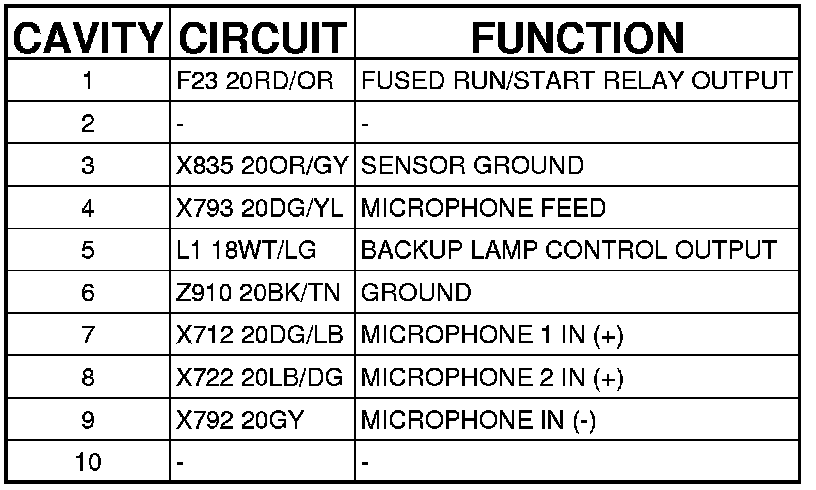

C205 (HANDS FREE) - (INSTRUMENT PANEL SIDE) 10 WAY
