C110 (MTX) (Headlamp And Dash Side) 12 Way
C110 (MTX) (Headlamp And Dash Side) 12 Way

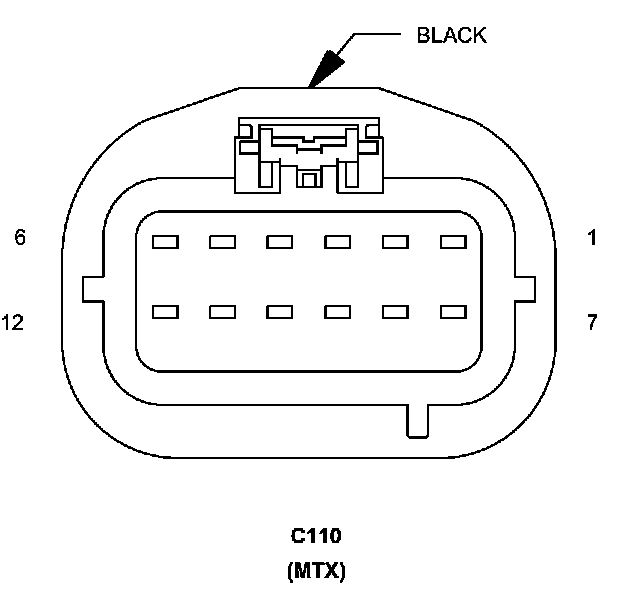

Connector (MTX) - (
HEADLAMP
AND DASH SIDE) 12 WAY

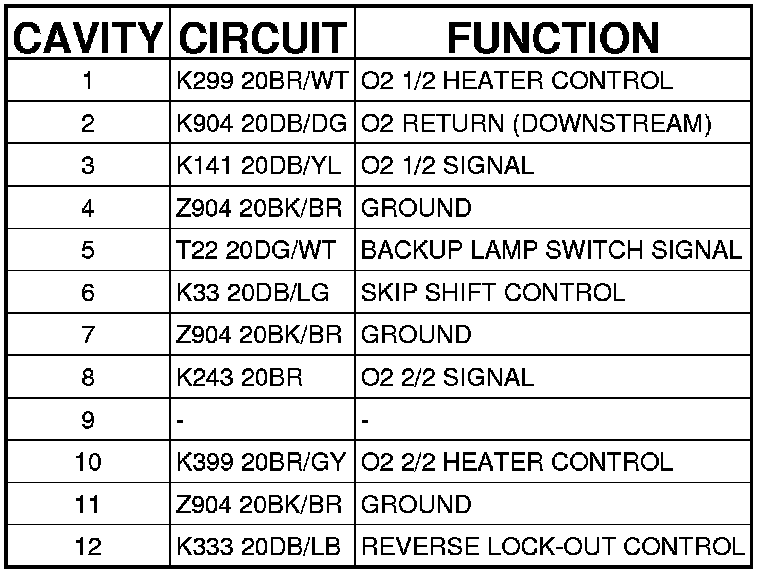

C110 (MTX) - (
HEADLAMP
AND DASH SIDE) 12 WAY
