C103 (Front Fascia Side) 6 Way
C103 (Front Fascia Side) 6 Way

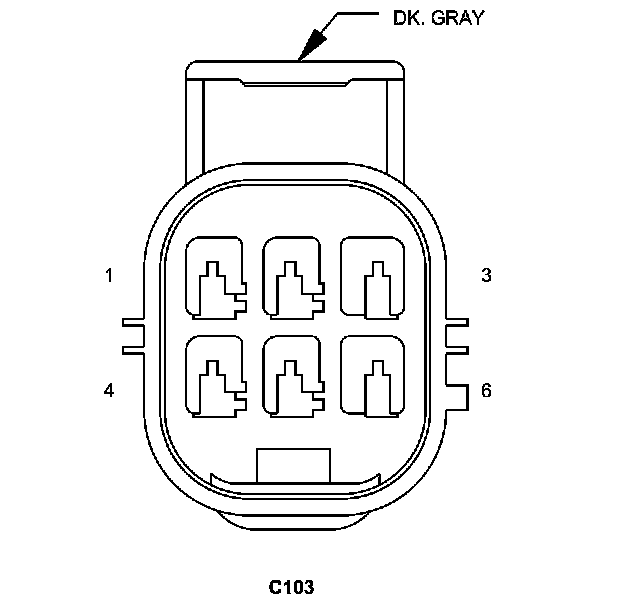

Connector - (FRONT FASCIA SIDE) 6 WAY

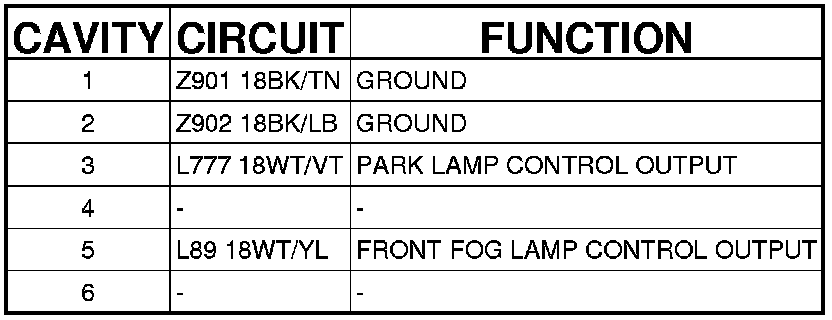

C103 - (FRONT FASCIA SIDE) 6 WAY
