C101 (5.7L) (Engine Side) 6 Way
C101 (5.7L) (Engine Side) 6 Way

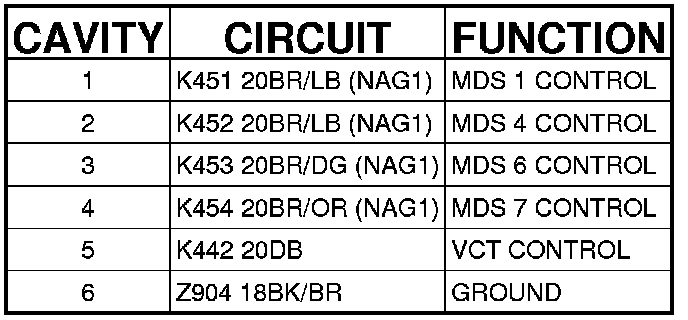

Connector (5.7L) - (ENGINE SIDE) 6 WAY

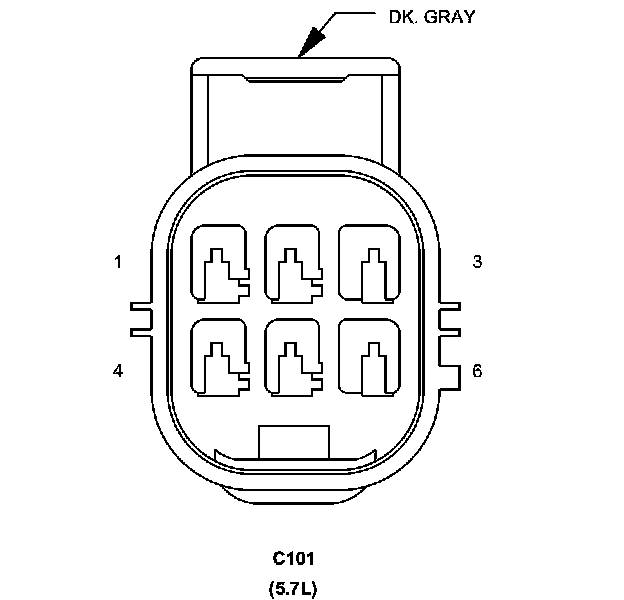

C101 (5.7L) - (ENGINE SIDE) 6 WAY
