Splash Shield - Installation

INSTALLATION

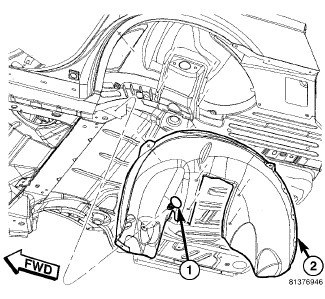

1. Position the rear splash shield (2) into the rear wheelhouse.
2. Install the push-pins (1) that secure the rear wheelhouse shield to the body.
3. Install the new plastic rivets to the splash shield.
4. Install the rear wheel. Tires and Wheels - Installation.
5. Lower the vehicle.
