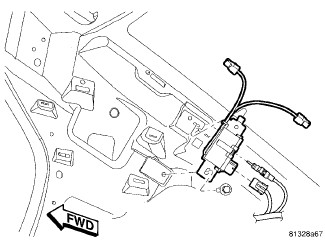

Radio Antenna Module - Removal

REMOVAL





1. Disconnect and isolate the battery negative cable.
2. Remove right quarter trim panel.Quarter Trim Panel - Removal.
3. Disconnect the wire harness connectors and the antenna cable.
4. Remove the mounting fasteners and the antenna module.
