NAG1 Automatic Transmission
NAG1 Automatic Transmission
SPECIFICATIONS

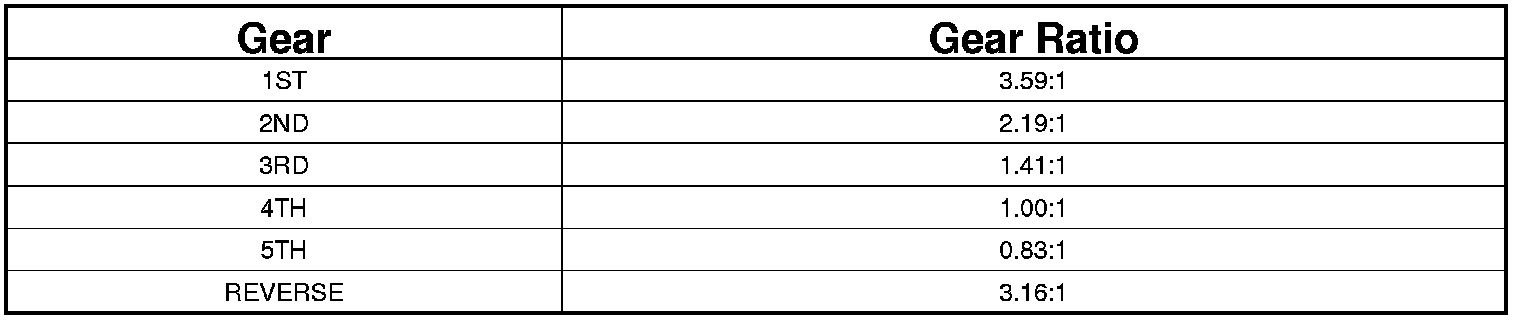

GEAR RATIOS

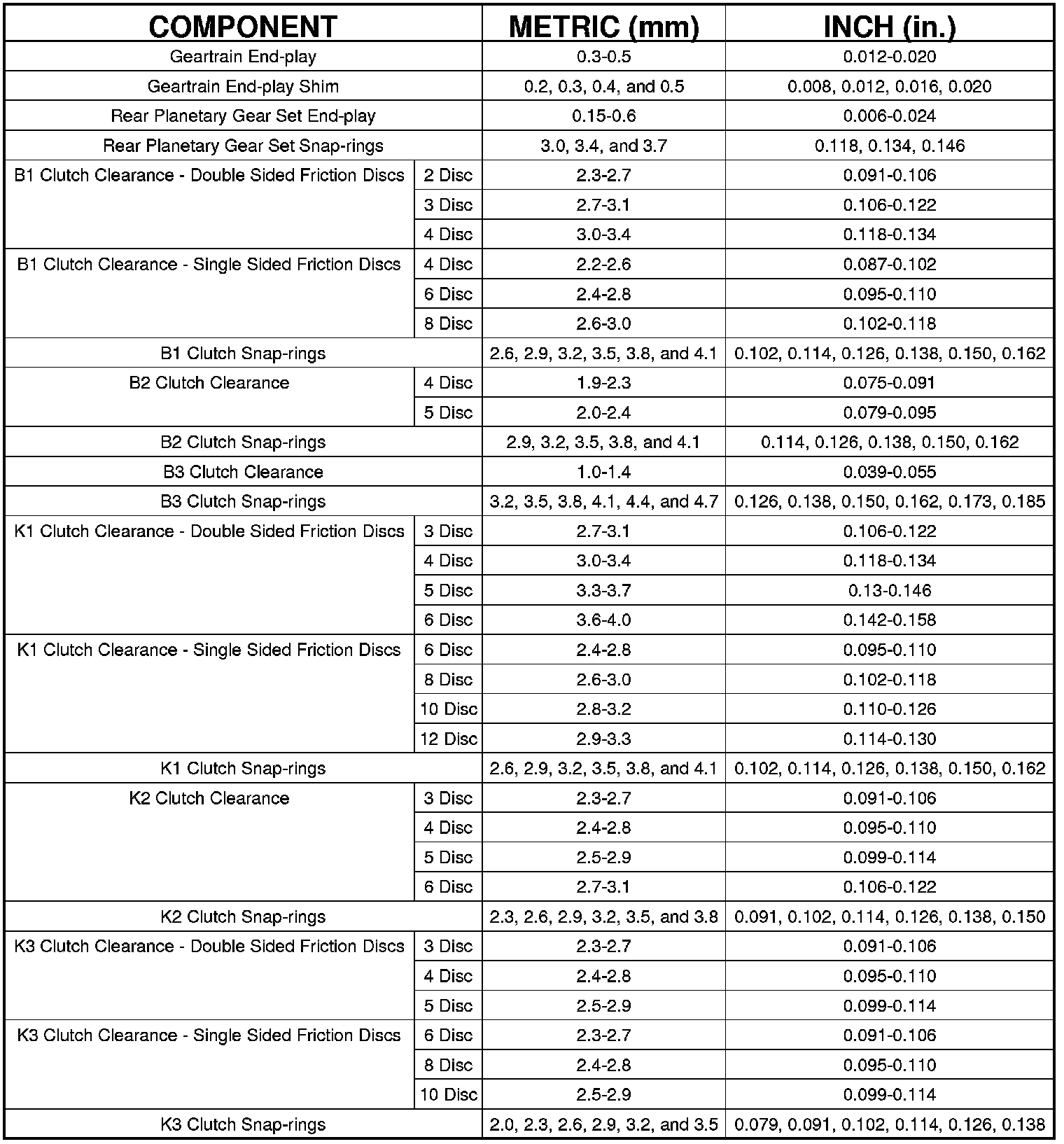

CLEARANCES

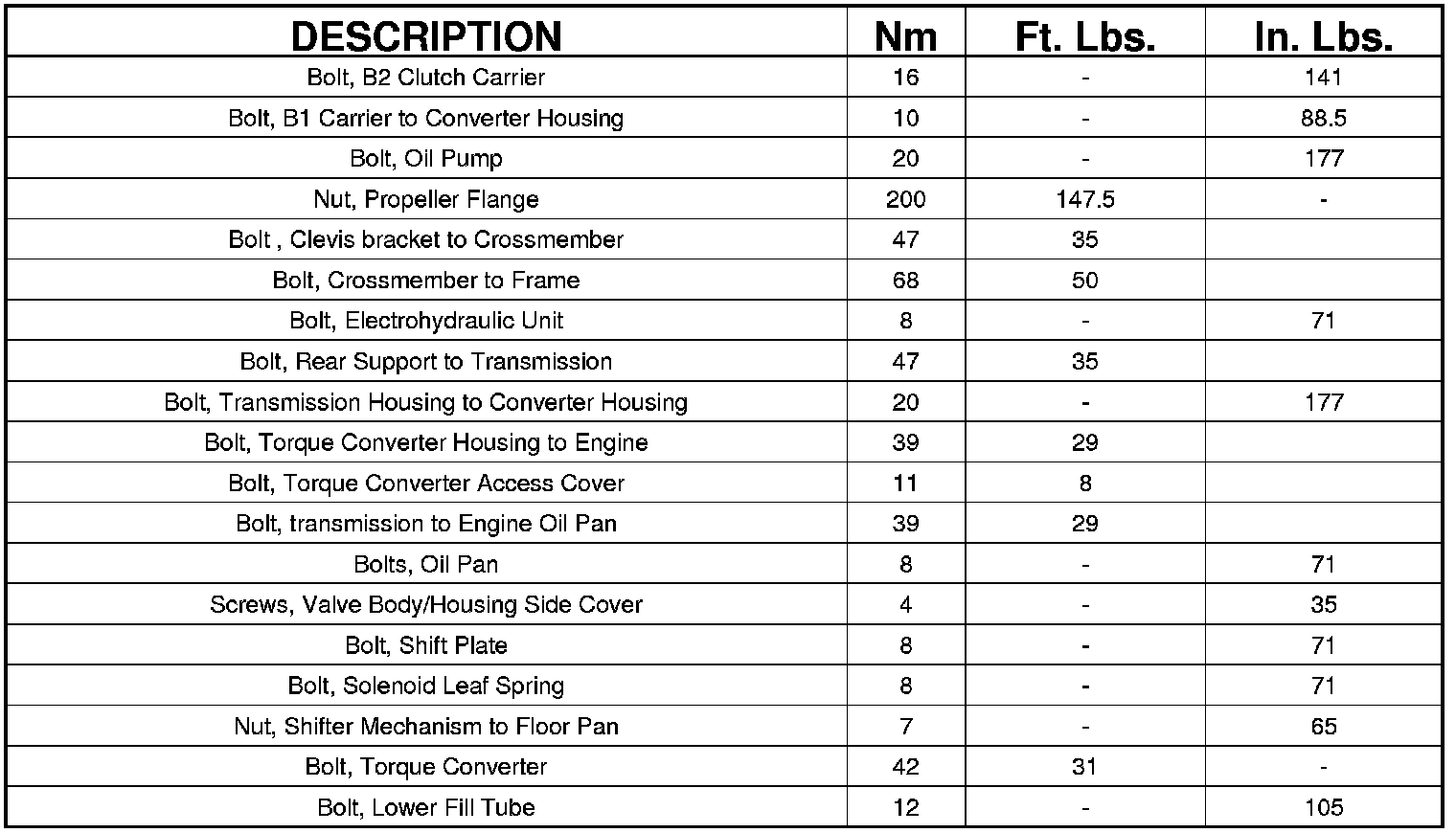

TORQUE
