Left

REMOVAL





1. Disconnect and isolate the negative battery cable.
2. Raise and support the vehicle Service and Repair.
3. Remove the fasteners (1) that secure the rear belly pan (2) to the underside of the vehicle.
4. Remove the rear belly pan from the underside of the vehicle.










5. Remove both of the engine mount to cradle nuts.
6. Remove both of the engine mount through studs.
7. Using a suitable jack stand and a block of wood positioned under the oil pan, raise the engine until the weight is off of the mounts (approximately 5 mm).

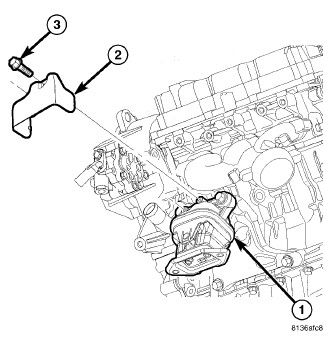

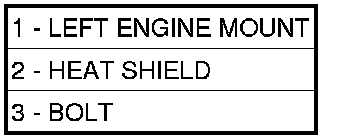

8. Remove the bolts (3) and the left mount heat shield (2).

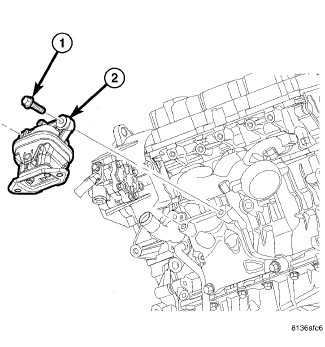

9. Remove the bolts (1) and the left engine mount (2).
