Center Tail Lamp Assembly C6 (Center Tail Lamp Jumper) 3 Way

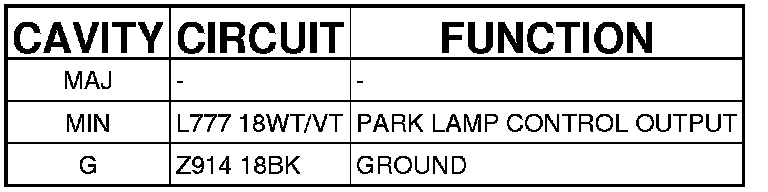

Connector C6 - (CENTER TAIL LAMP JUMPER) 3 WAY

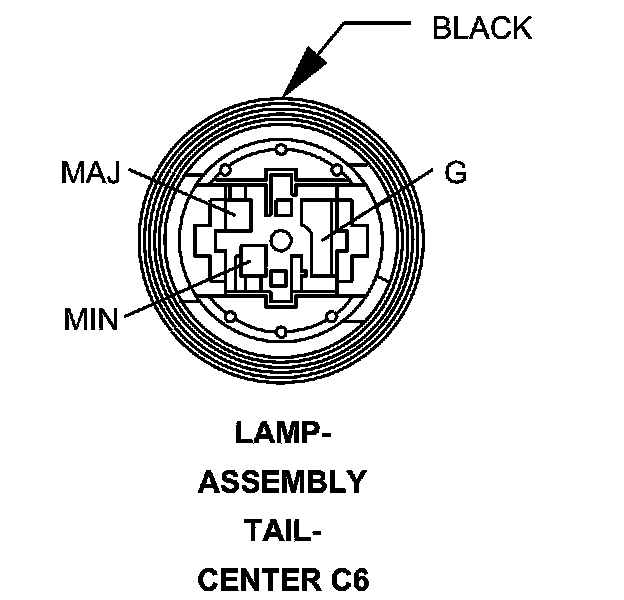

LAMP-ASSEMBLY TAIL-CENTER - (CENTER TAIL LAMP JUMPER) 3 WAY
