Home >> Dodge >> 2009 >> Challenger V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Shift Solenoid, M/T >> Skip Shift Solenoid (MTX) (Transmission Jumper) 2 Way

Skip Shift Solenoid (MTX) (Transmission Jumper) 2 Way

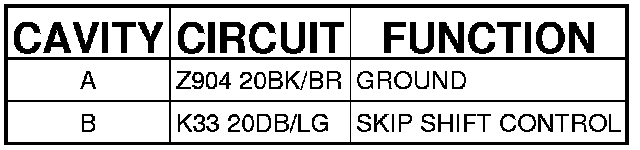

Connector (MTX) - (TRANSMISSION JUMPER) 2 WAY

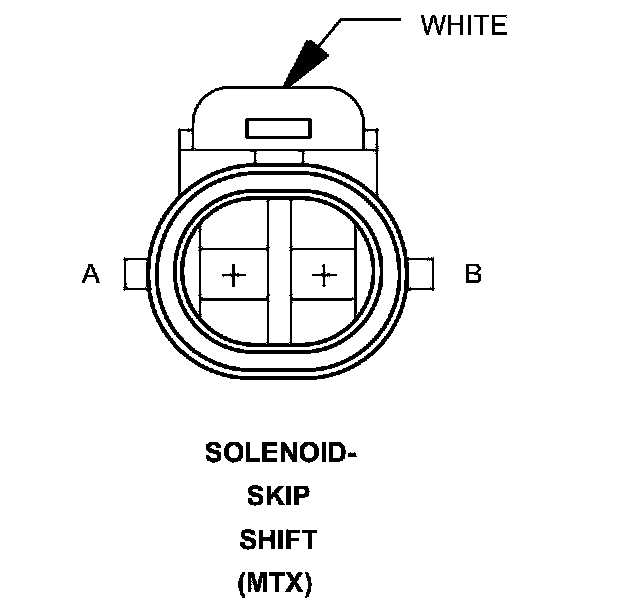

SOLENOID-SKIP SHIFT (MTX) - (TRANSMISSION JUMPER) 2 WAY
