Inside Rearview Mirror (Interior Mirror Jumper) 16 Way

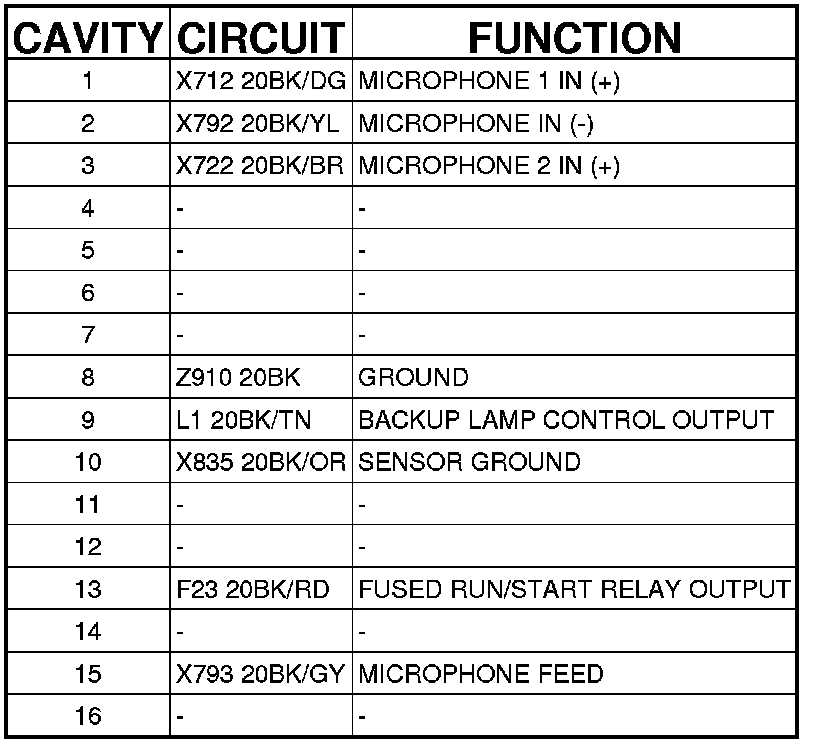

Connector - (INTERIOR MIRROR JUMPER) 16 WAY

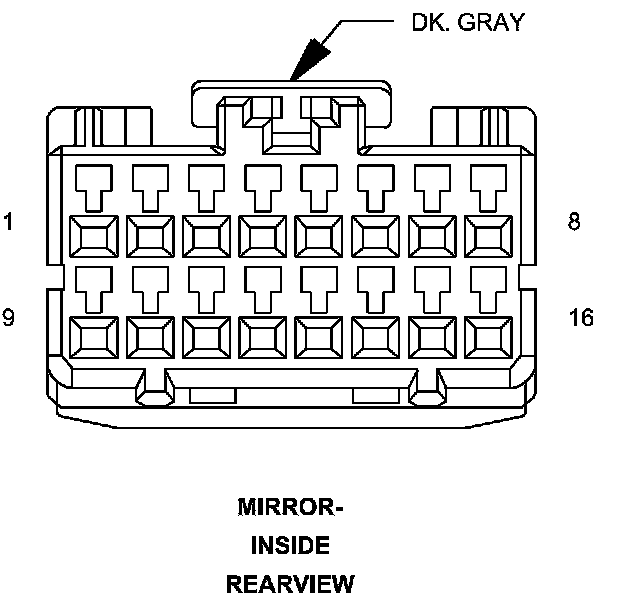

MIRROR-INSIDE REARVIEW - (INTERIOR MIRROR JUMPER) 16 WAY
