C100 (3.5L) (Headlamp And Dash Side) 14 Way
C100 (3.5L) (Headlamp And Dash Side) 14 Way

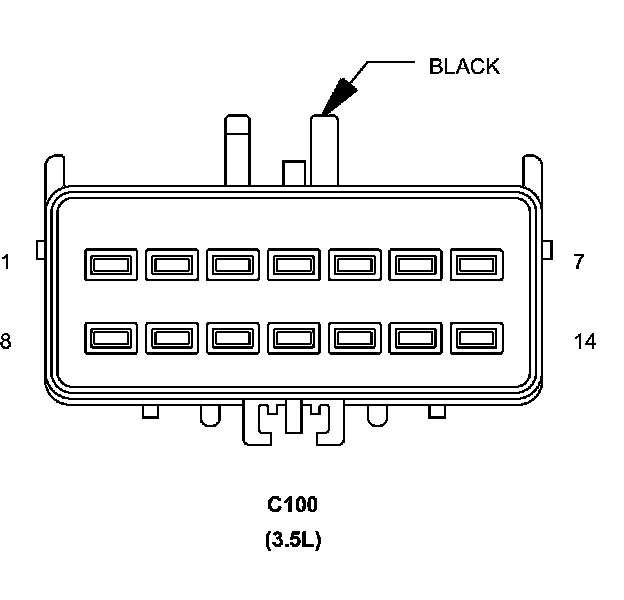

Connector (3.5L) - (
HEADLAMP
AND DASH SIDE) 14 WAY

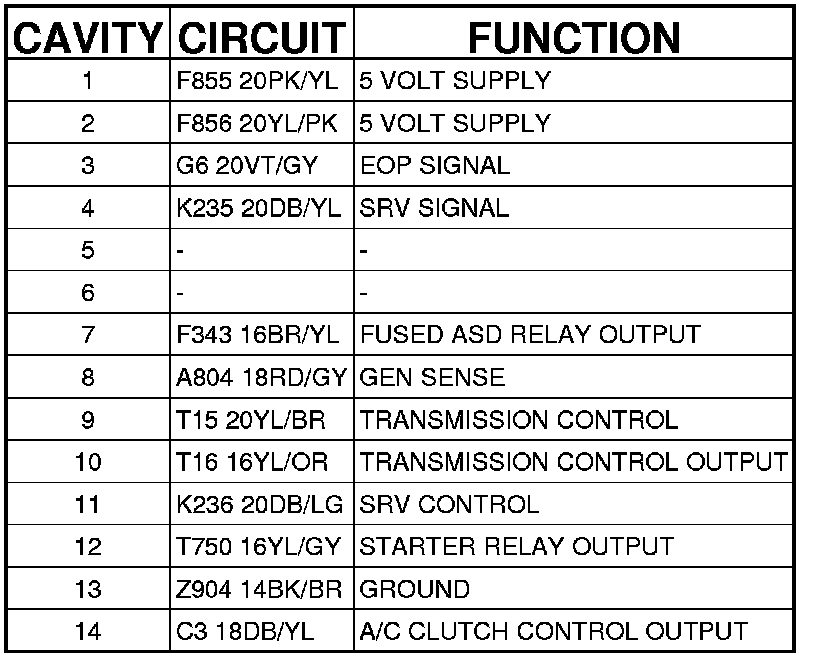

C100 (3.5L) - (
HEADLAMP
AND DASH SIDE) 14 WAY
