C100 (3.5L) (Engine Side) 14 Way
C100 (3.5L) (Engine Side) 14 Way

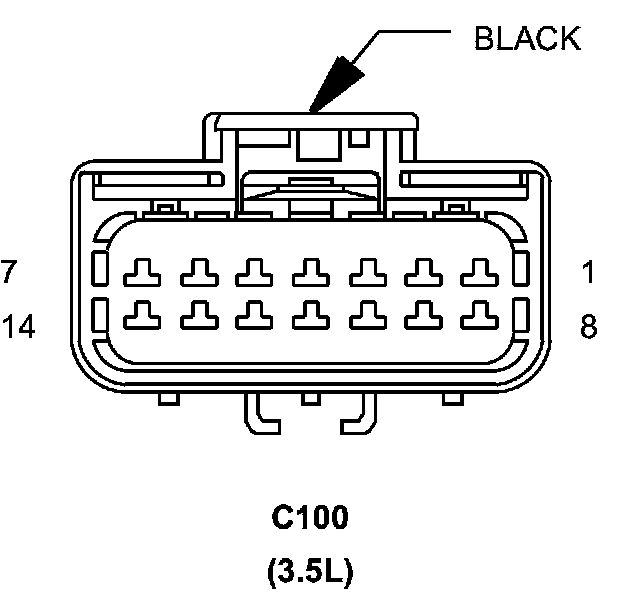

Connector (3.5L) - (ENGINE SIDE) 14 WAY

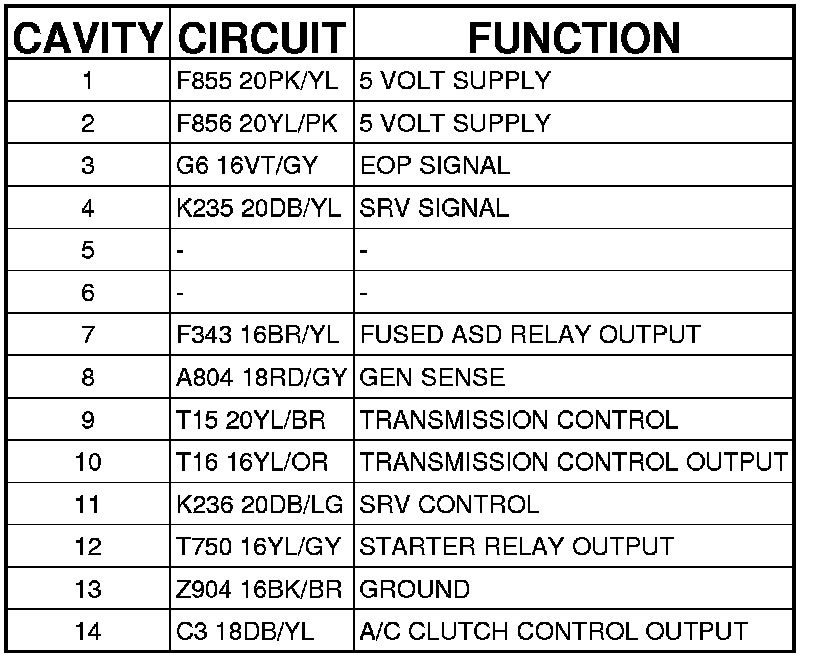

C100 (3.5L) - (ENGINE SIDE) 14 WAY
