Radio Amplifier C2 (Instrument Panel) 14 Way
Radio Amplifier C2 (Instrument Panel) 14 Way

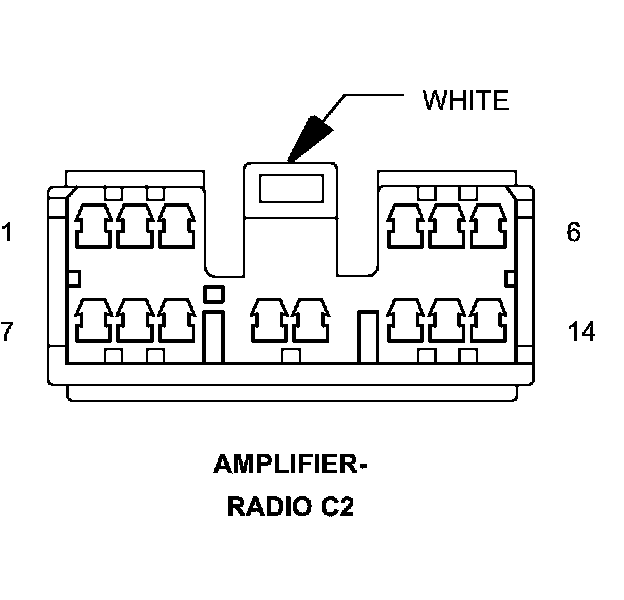

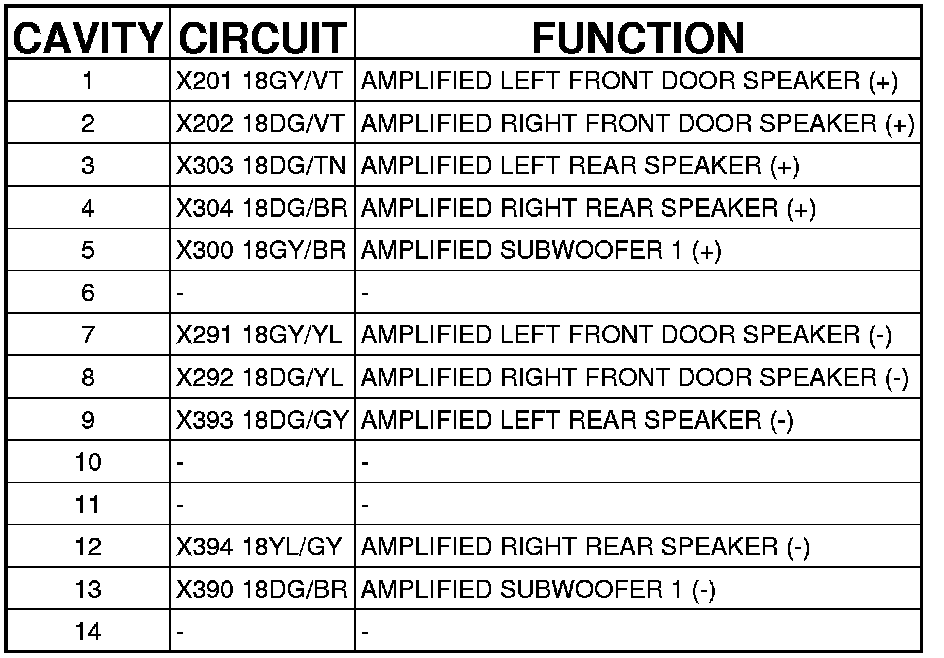

Connector C2 - (INSTRUMENT PANEL) 14 WAY
AMPLIFIER
-RADIO - (INSTRUMENT PANEL) 14 WAY
