Amplifier, Sound System
>>

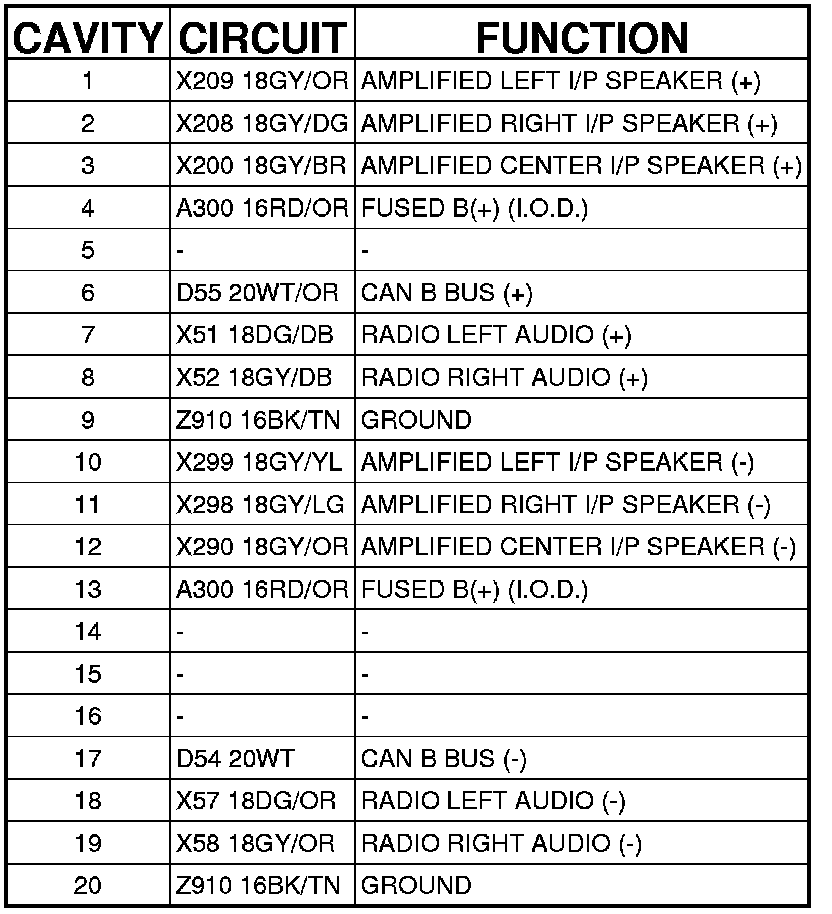

Radio Amplifier C1 (Instrument Panel) 20 Way
Radio Amplifier C1 (Instrument Panel) 20 Way
Connector C1 - (INSTRUMENT PANEL) 20 WAY
AMPLIFIER
-RADIO - (INSTRUMENT PANEL) 20 WAY
