Description






DESCRIPTION

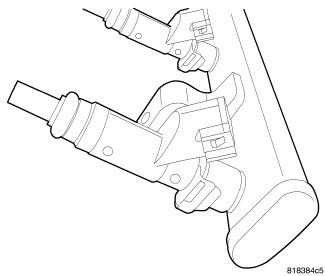

The injectors are positioned in the intake manifold with the nozzle ends directly above the intake valve port.
