Right Front Door Speaker (Right Rear Door) 3 Way
Right Front Door Speaker (Right Rear Door) 3 Way

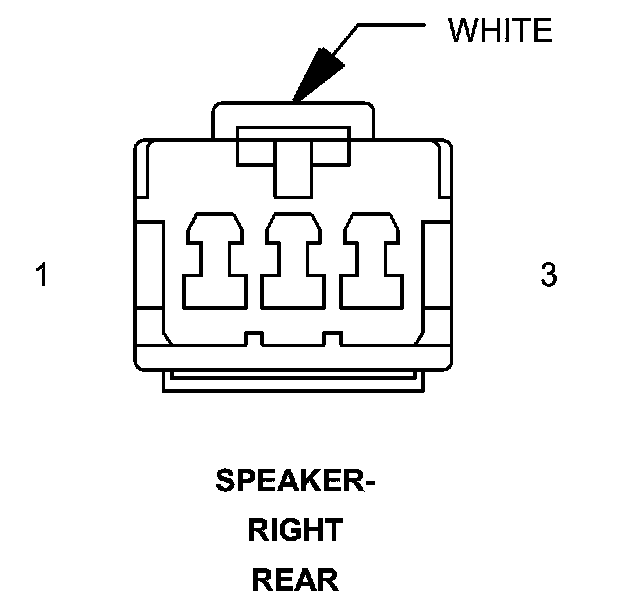

Connector - (RIGHT REAR DOOR) 3 WAY

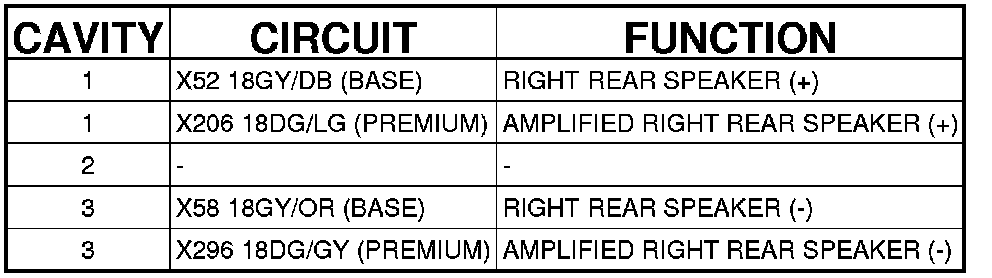

SPEAKER-RIGHT FRONT DOOR - (RIGHT REAR DOOR) 3 WAY
