Home >> Dodge >> 2009 >> Caliber L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Speaker >> Right Front Door Speaker (Premium) (Instrument Panel) 2 Way

Right Front Door Speaker (Premium) (Instrument Panel) 2 Way

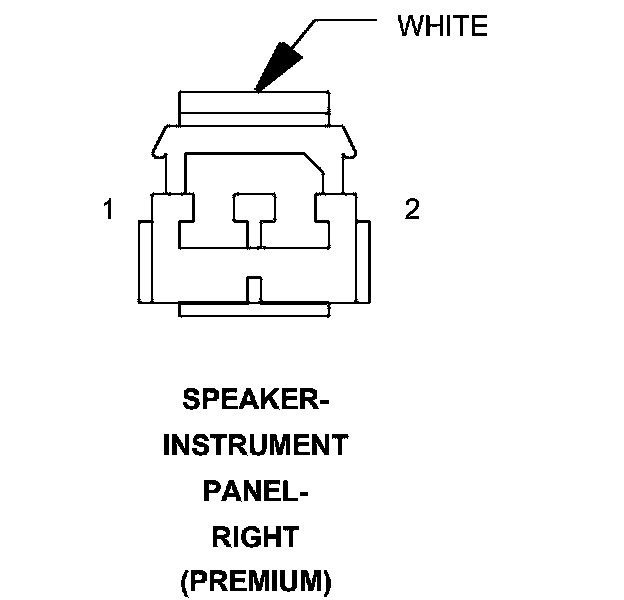

Connector (PREMIUM) - (INSTRUMENT PANEL) 2 WAY

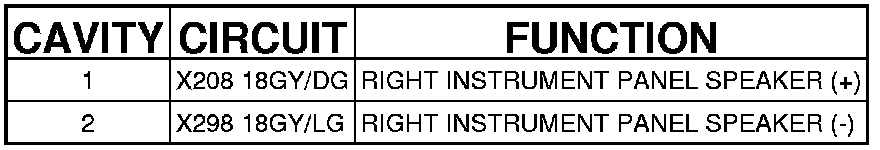

SPEAKER-RIGHT FRONT DOOR (PREMIUM) - (INSTRUMENT PANEL) 2 WAY
