Home >> Dodge >> 2009 >> Avenger L4-2.4L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Motor >> Diagrams >> Passenger Window Motor (Express) (Passenger Door) 6 Way

Passenger Window Motor (Express) (Passenger Door) 6 Way

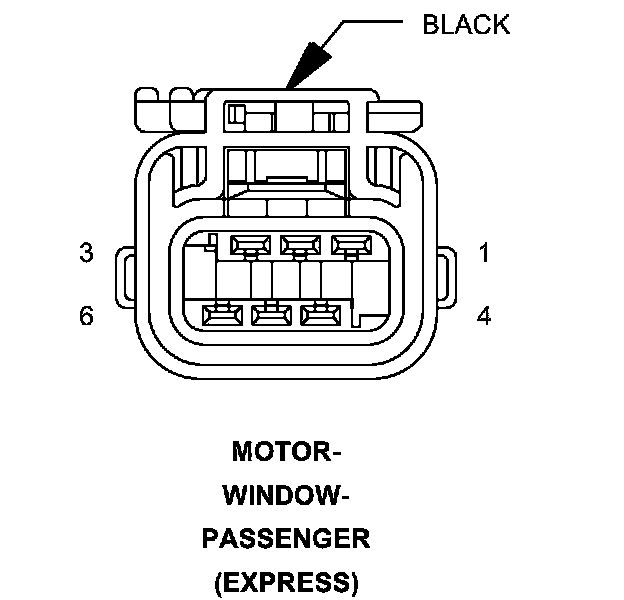

Connector (EXPRESS) - (PASSENGER DOOR) 6 WAY

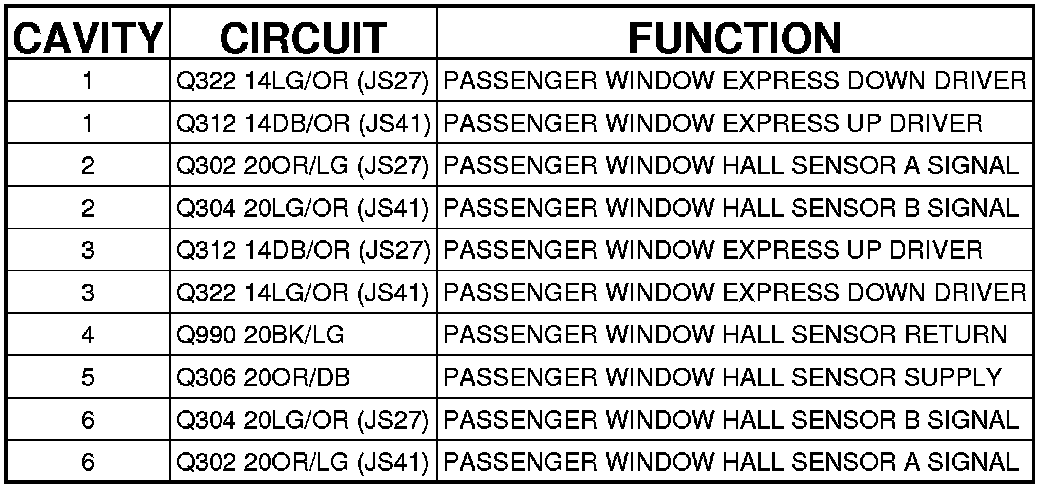

MOTOR-WINDOW-PASSENGER (EXPRESS) - (PASSENGER DOOR) 6 WAY
