Engine Control Module

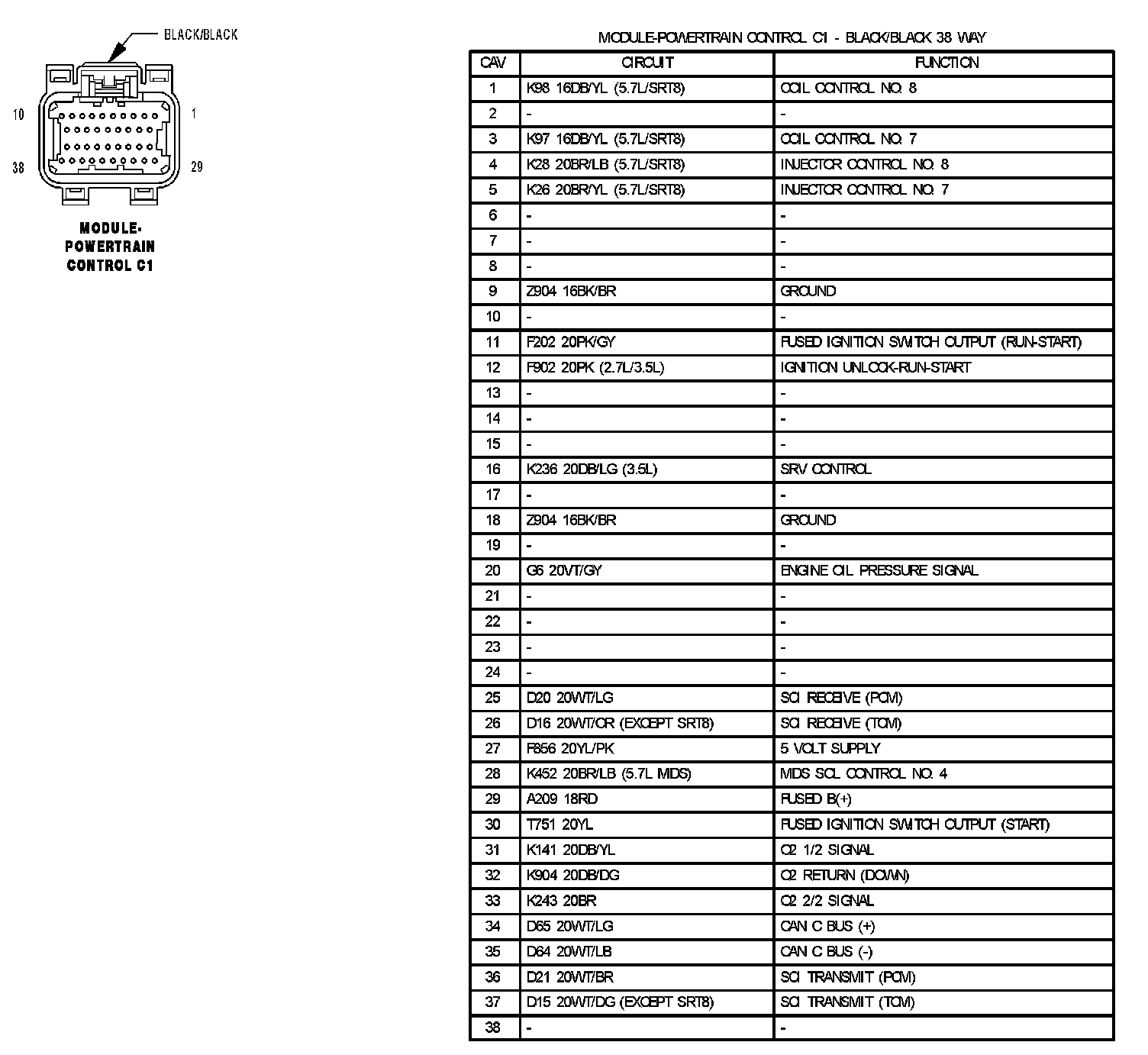

Module Powertrain Control C1:

Module Powertrain Control C1:

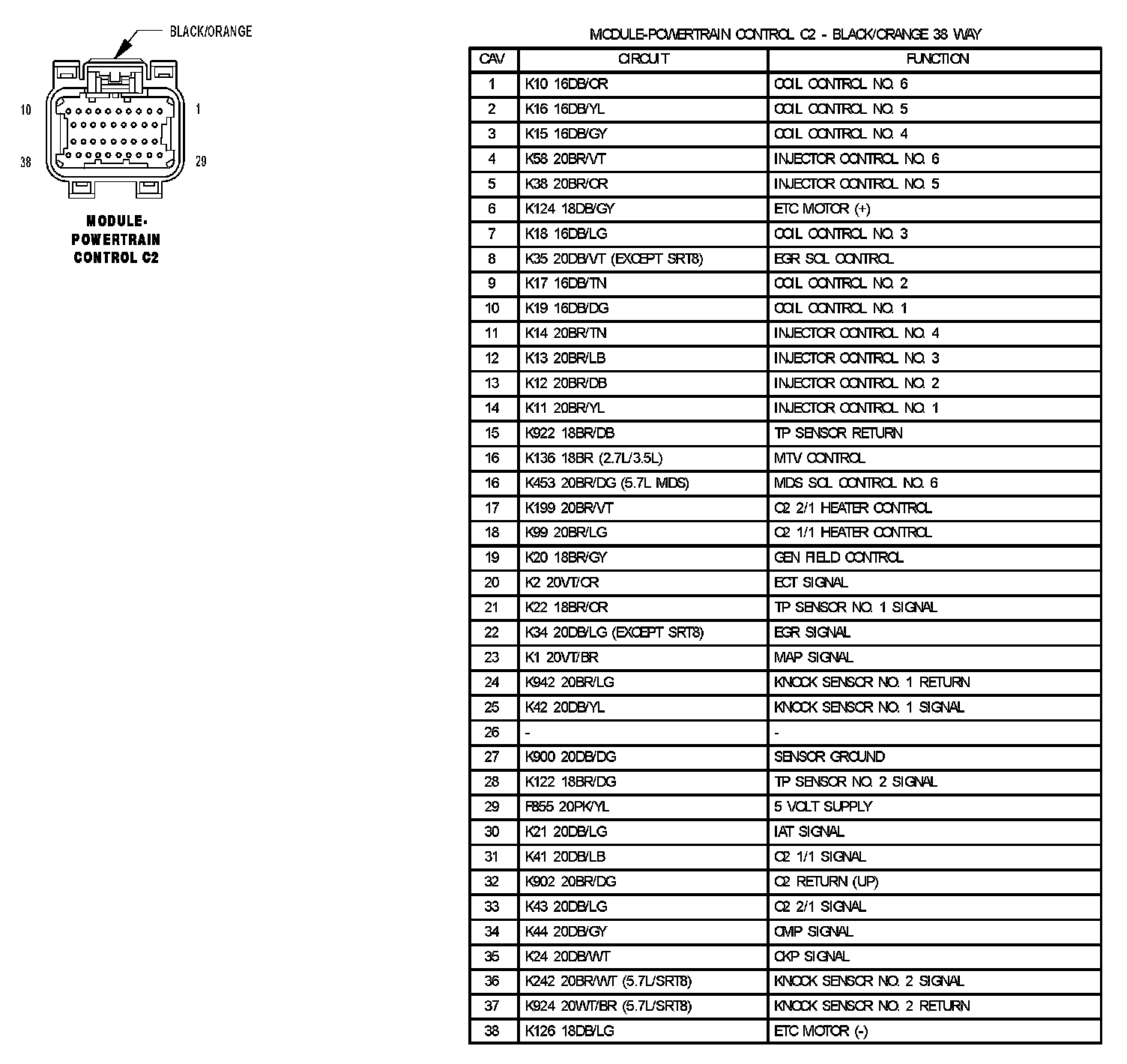

Module Powertrain Control C2:
