Front Door Window Glass: Service and Repair

DOOR GLASS

REMOVAL

1. Remove the door trim panel.
2. Remove the inner belt weatherstrip.
3. Remove the watershield.
4. Temporarily connect the batter negative cable.

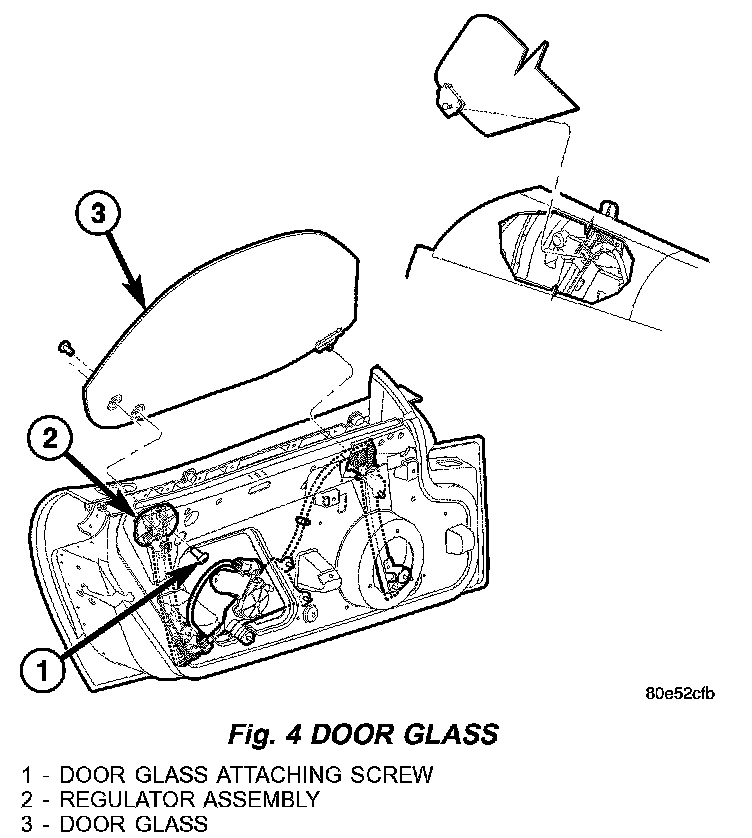

Fig. 4:

5. Lower the glass almost all the way down and remove the front retainer clip. (Fig. 4)
6. Raise the glass and remove the two rear screws.
7. Disconnect the glass from the regulator and remove from the door.

INSTALLATION

1. Position the regulator in the up position.
2. Install the glass through the window opening and align the front mounting plate to the lift plate.
3. Engage the front glass to the regulator lift plate.
4. Install the two rear screws and tighten to 4 N.m (35 in.lbs.).
5. Lower the glass.
6. Disconnect and isolate the battery negative cable.
7. Install the watershield.
8. Install the inner belt weatherstrip.
9. Install the door trim panel.
