Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Dodge
>>
2004
>>
Neon L4-2.0L VIN F
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
System Schematics
System Schematics

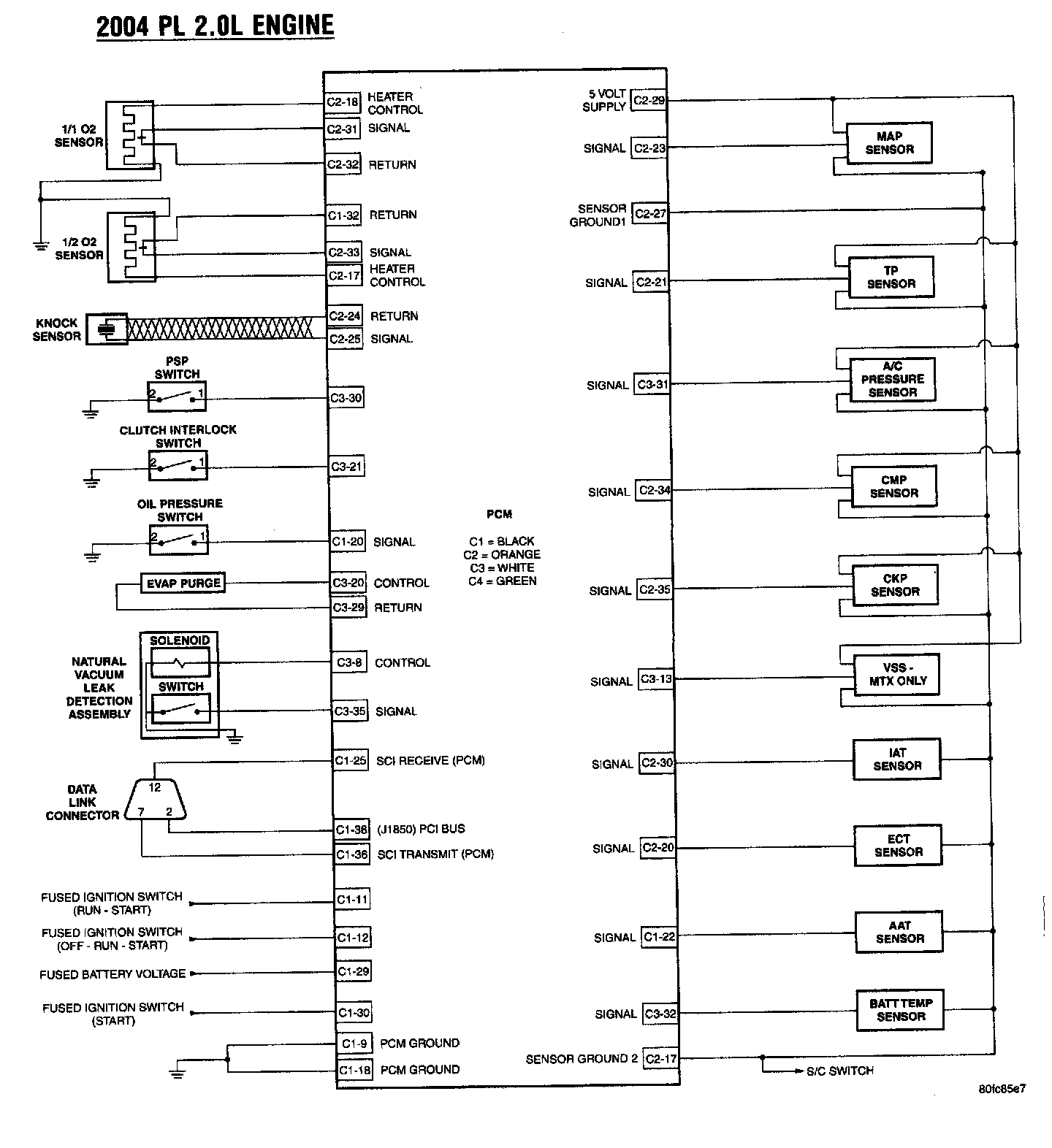

2004 PL 2.0L Engine:

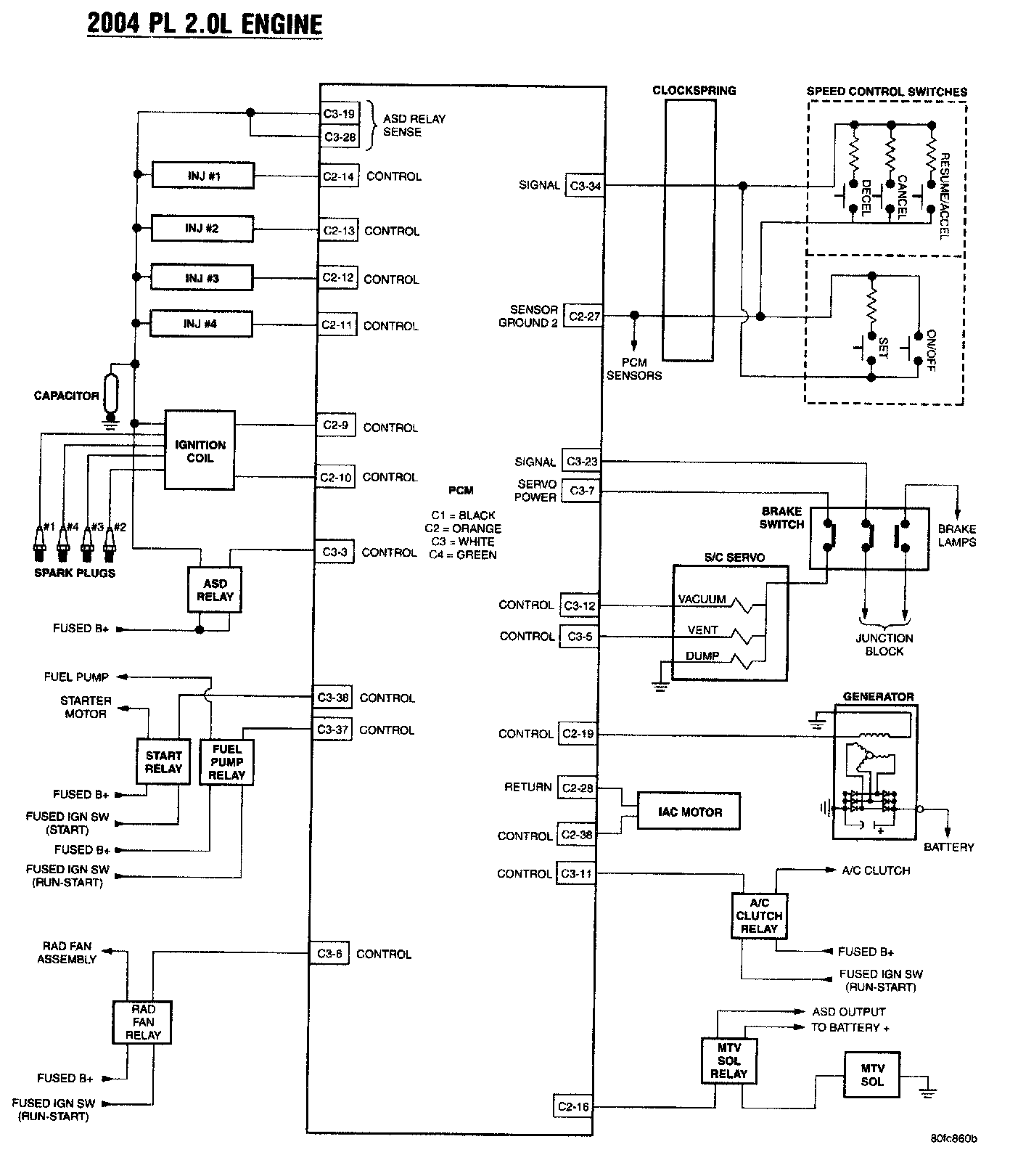

2004 PL 2.0L Engine:
