Dodge
>>
2003
>>
Neon L4-2.0L VIN C
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Evaporative Emissions System
>>
Specifications
Evaporative Emissions System: Specifications

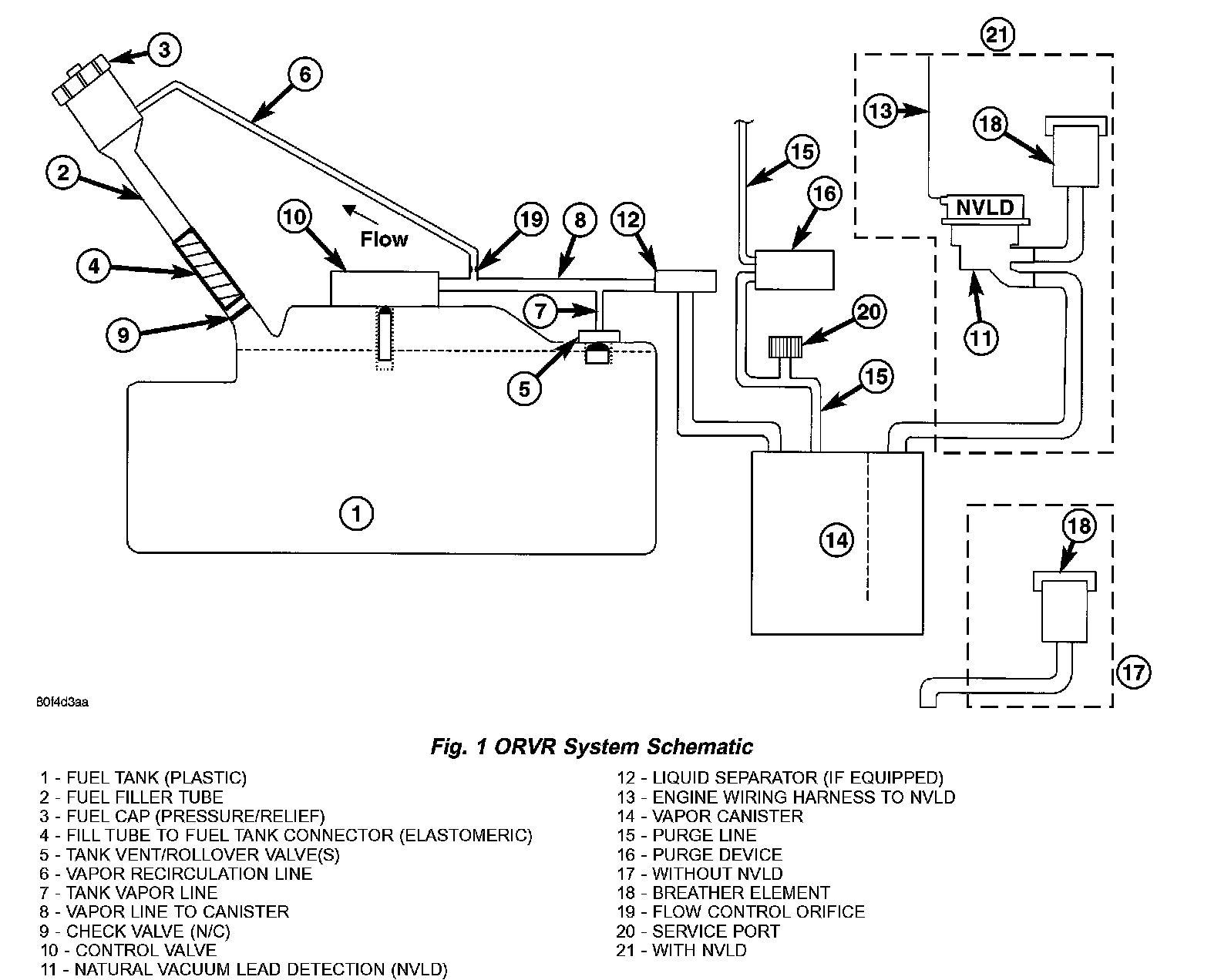

Fig.1 ORVR System Schematic:
