Home >> Dodge >> 2002 >> Stratus Sedan V6-2.7L VIN R >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Knock Sensor >> Diagrams

Knock Sensor: Diagrams

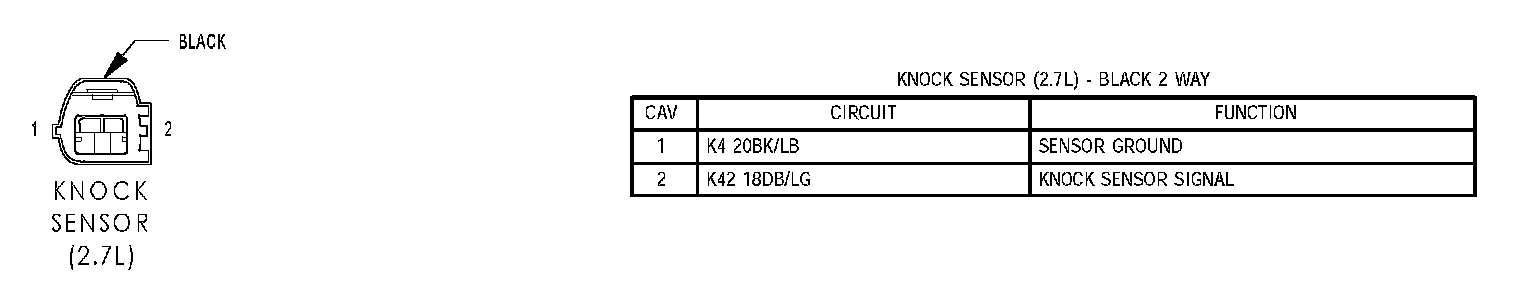

Knock Sensor (2.7L):
