Home
>>
Dodge
>>
2002
>>
Stratus Sedan L4-2.4L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>
C169
C169

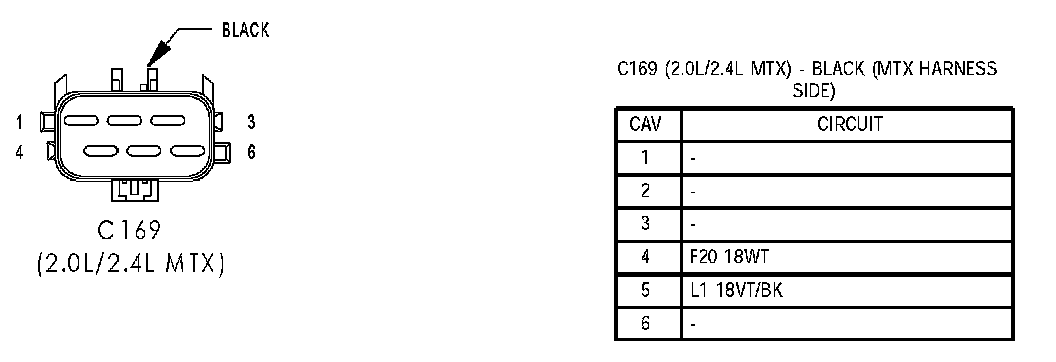

C169 (2.0L/2.4L MTX):
C169 (2.0L/2.4L MTX):

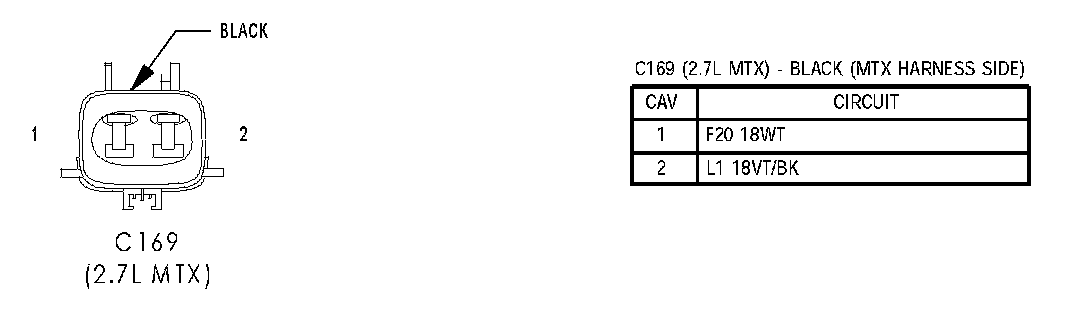

C169 (2.7L MTX):
C169 (2.7L MTX):
