Home
>>
Dodge
>>
2002
>>
Stratus Coupe L4-2.4L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>

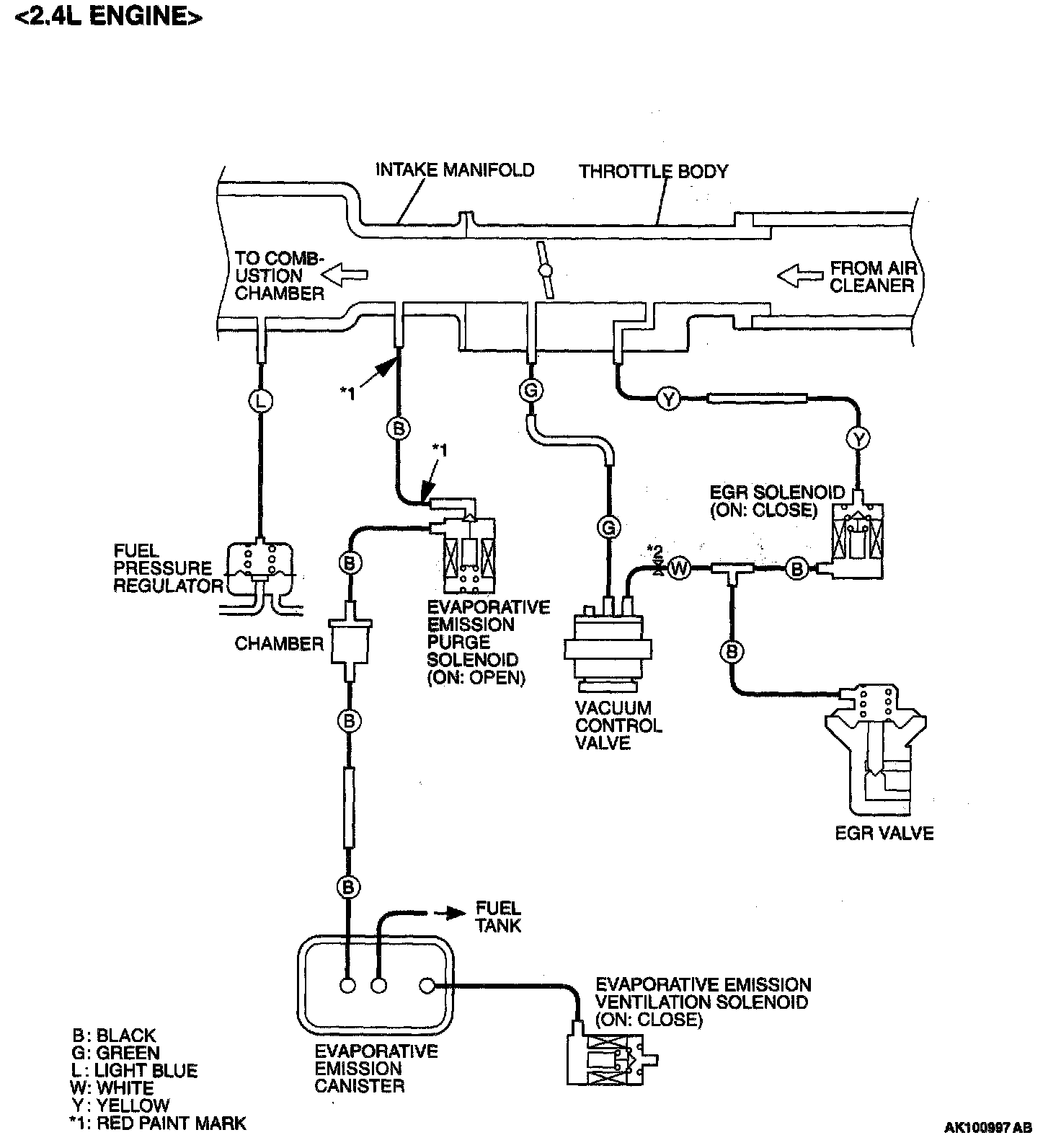

Vacuum and Vapor Hose Diagrams
>>
Powertrain Management
>>
Emission Control Systems
>>
System Diagram
System Diagram

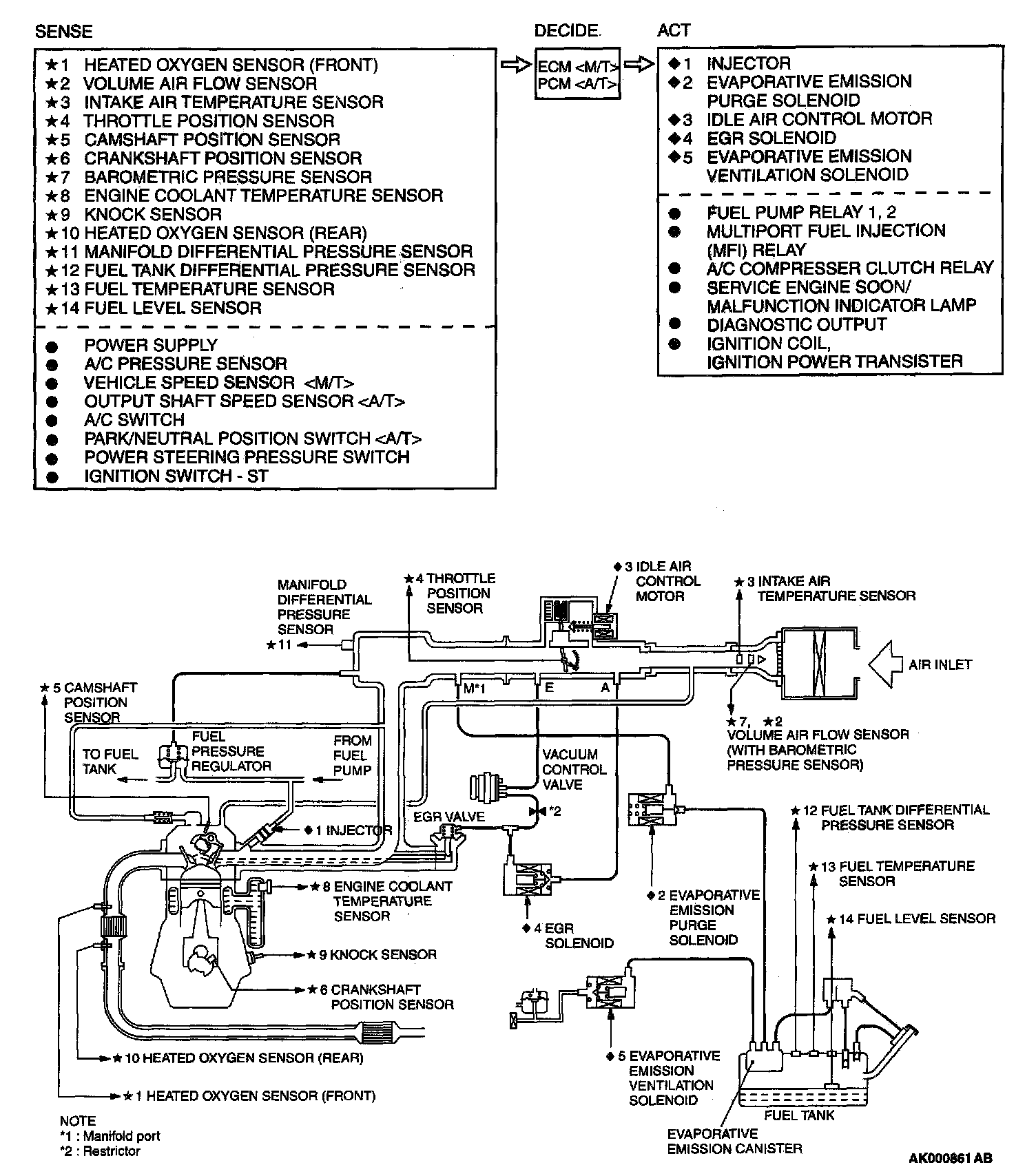

Multiport Fuel Injection (MFI) System Diagram:
