Home >> Dodge >> 2002 >> Neon ACR L4-2.0L VIN F HO >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems >> System Schematic

System Schematic

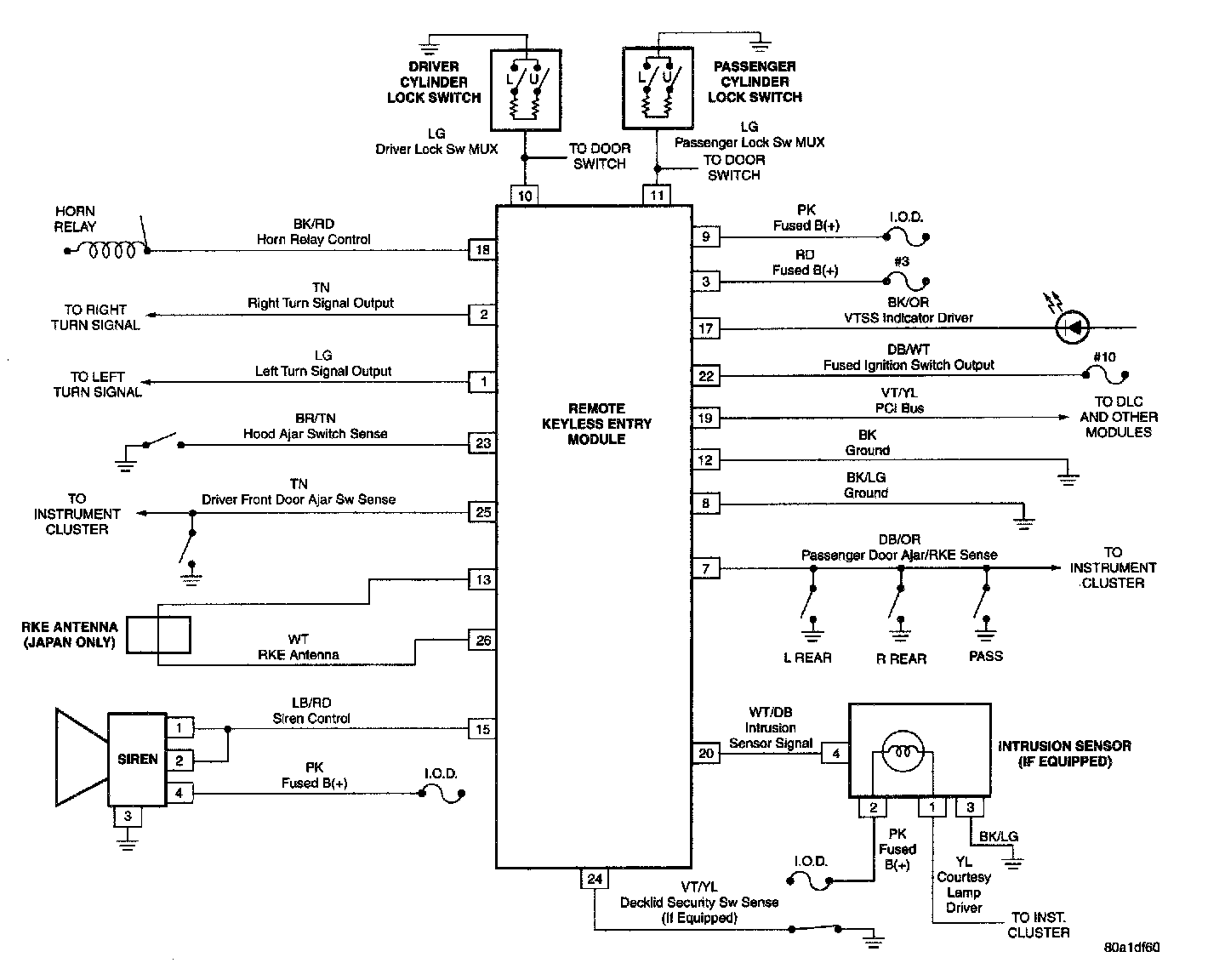

Vehicle Theft Security System:

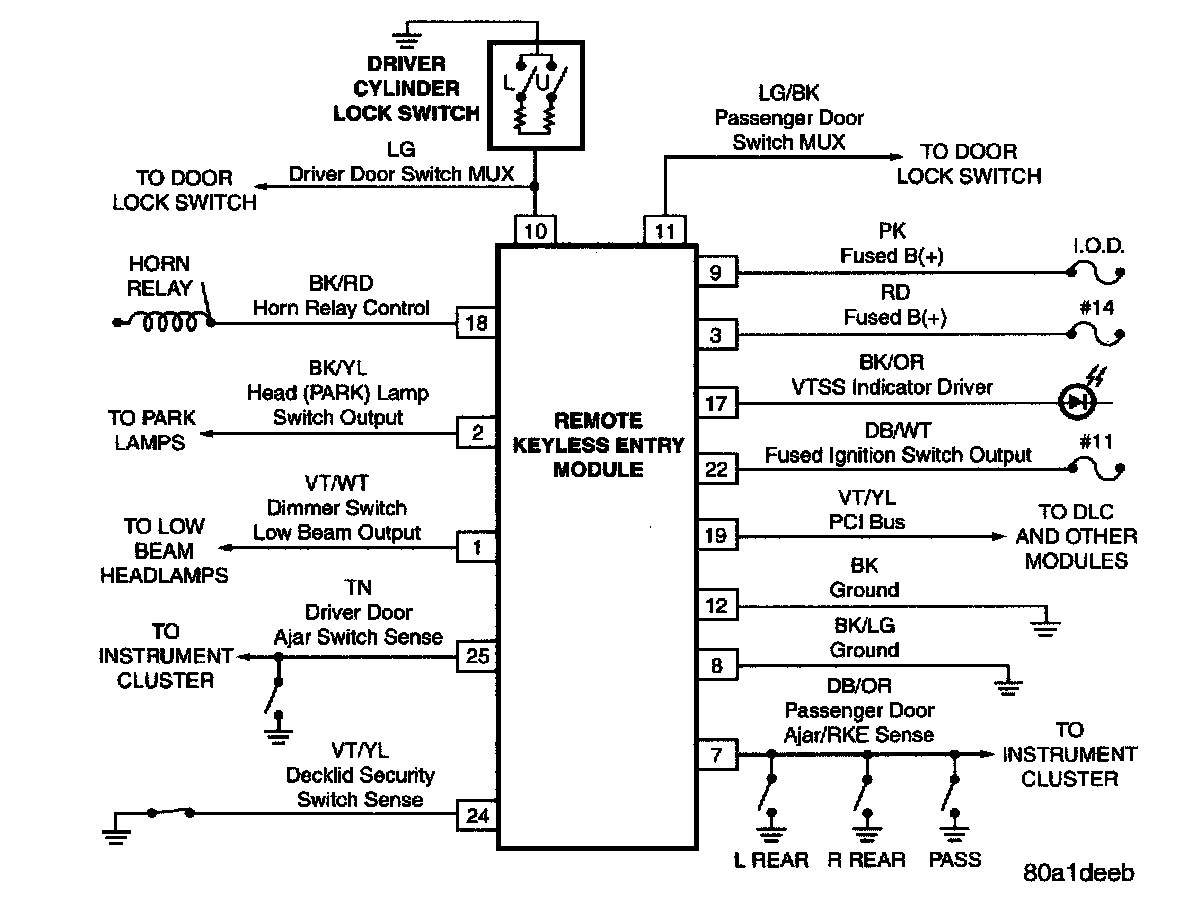

Vehicle Theft Security System (BUX Only):
