Rear

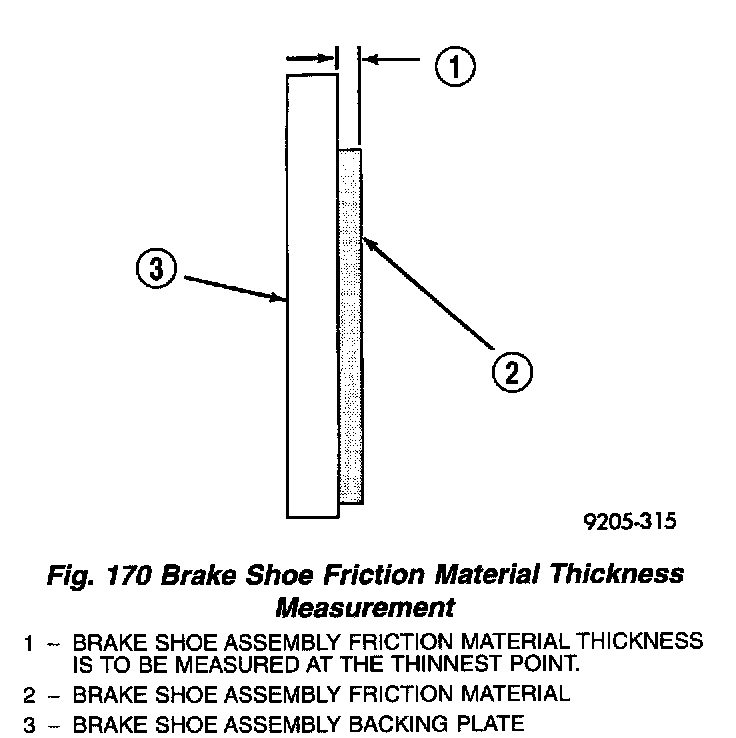

The brake shoe friction material thickness is to be measured at the thinnest point of the friction material.

When the friction material on the rear disc brake shoes is worn to a thickness of approximately 2.5 mm (0.100 inch) the brake shoes must be replaced.
