Evaporative Emission Control Canister: Service and Repair

REMOVAL
1. Raise vehicle and support.
2. Disconnect the negative battery cable.
3. Remove right rear wheel.

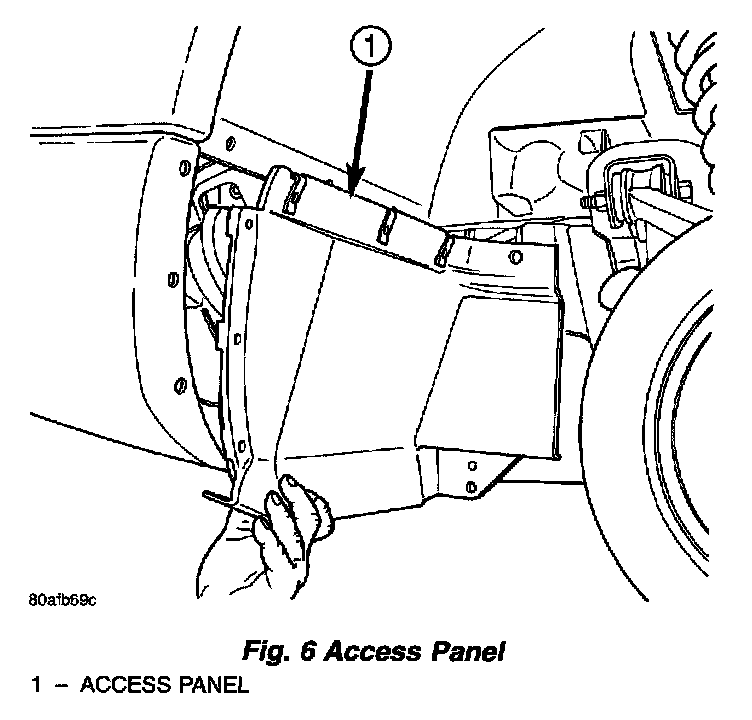

Fig. 6 Access Panel:

4. Remove the access panel in the rear of the wheel well.

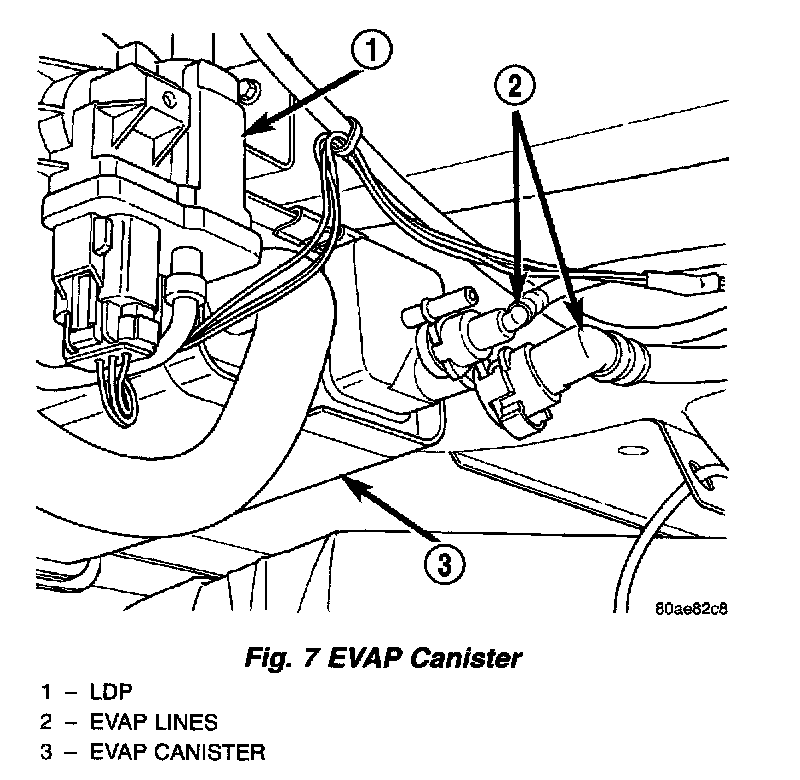

Fig. 7 EVAP Canister:

5. Disconnect the hoses from the EVAP canister.

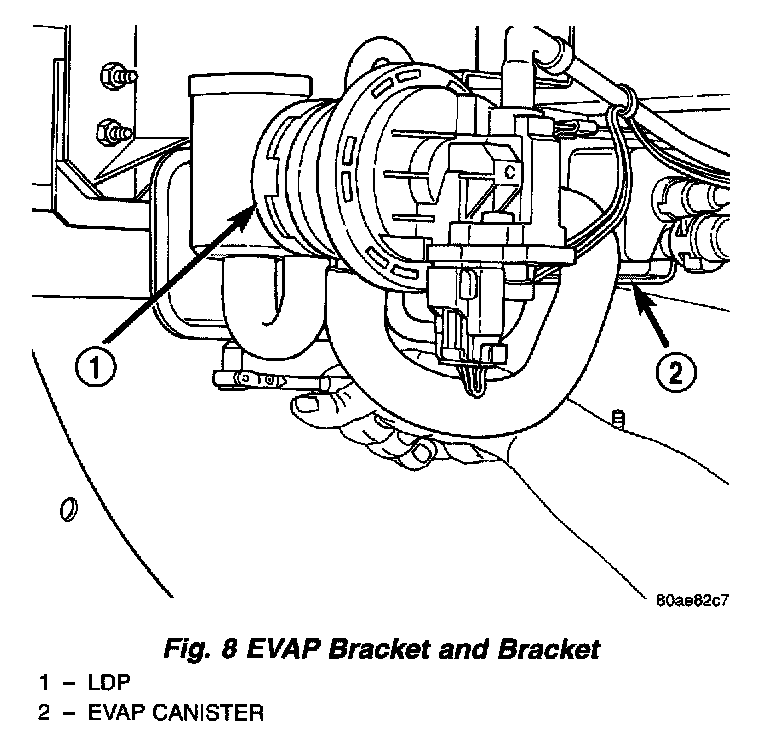

Fig. 8 EVAP Bracket And Bracket:

6. Remove 1 bolt from the bracket of the EVAP canister.

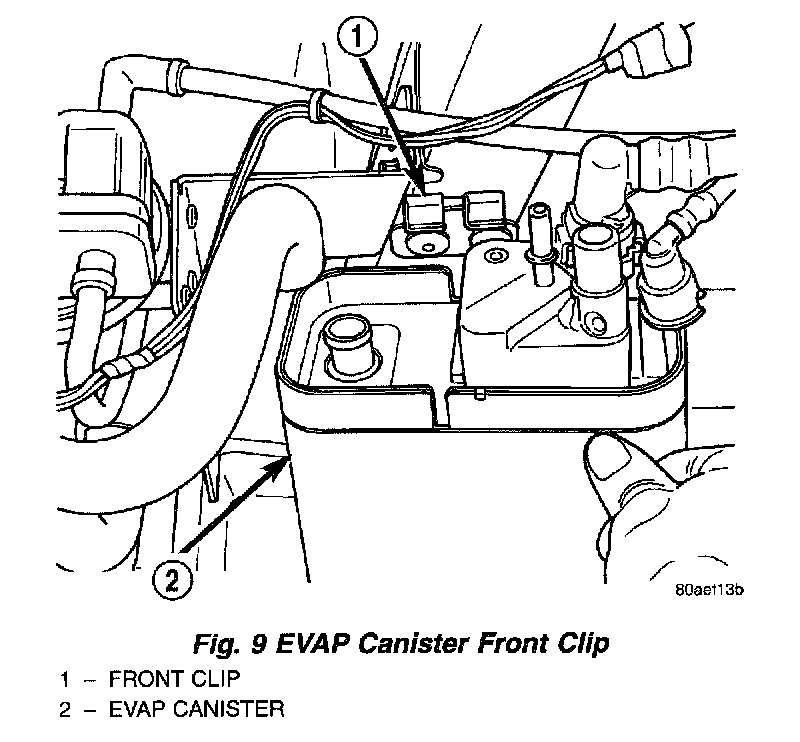

Fig. 9 EVAP Canister Front Clip:

7. Slide canister rearward to remove EVAP canister from front clip.

INSTALLATION
1. Install EVAP canister to Bracket.
2. Install bolt to EVAP canister and tighten to 6.7 Nm (60 in. lbs.).
3. Connect hoses.
4. Install rear wheel.
5. Connect negative battery cable.
6. Lower vehicle.
