P1492

Tests 1 - 3:

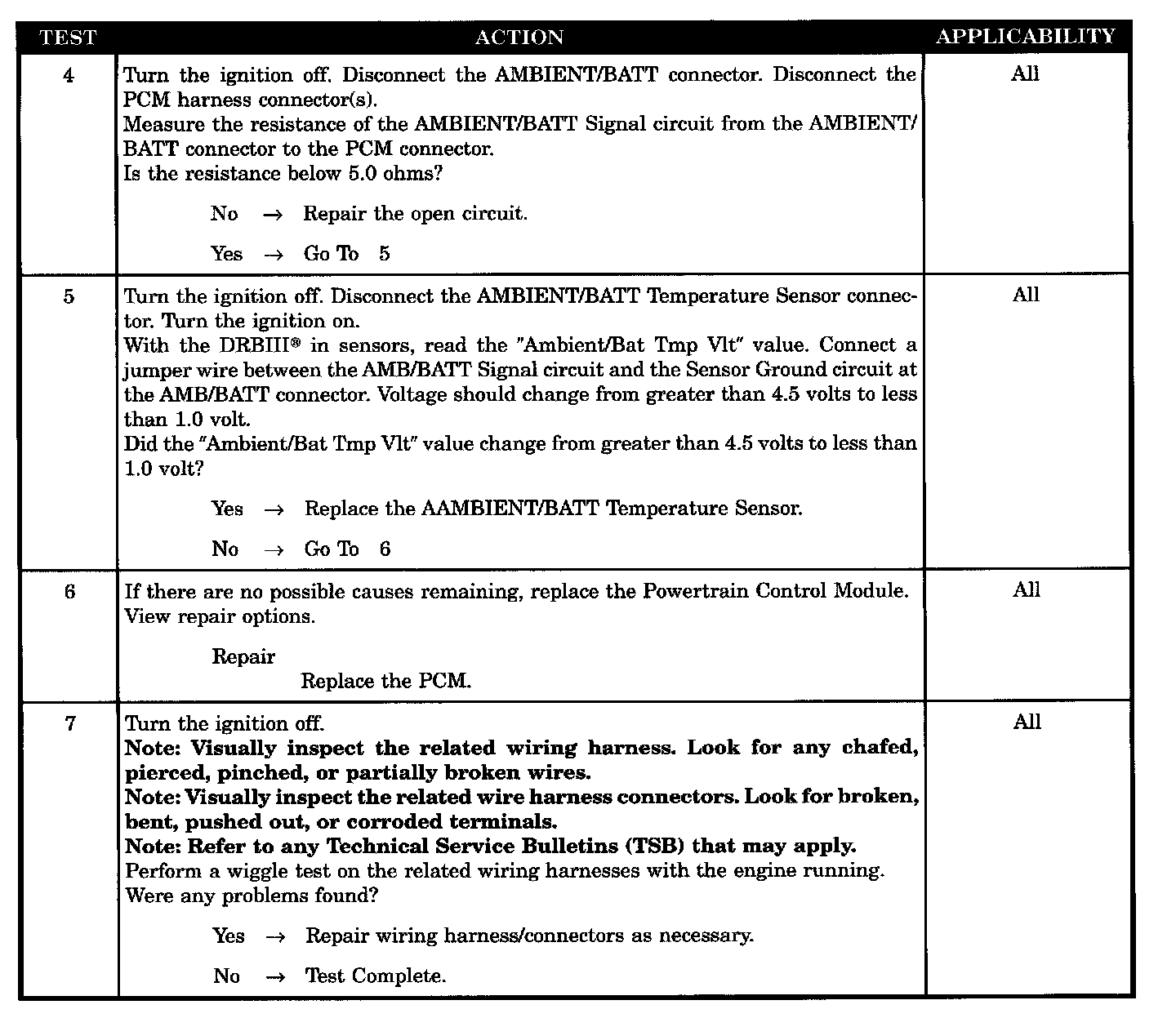

Tests 4 - 7:

SYMPTOM
P1492 - AMBIENT/BATTERY TEMPERATURE SENSOR VOLTS TOO HIGH

WHEN MONITORED
With the ignition key ON.

SET CONDITION
The PCM senses the voltage from the Ambient/Battery Temperature Sensor to be above 4.9 volts for 3 seconds.

POSSIBLE CAUSES
- Sensor ground circuit open
- Ambient/Battery Temperature Sensor signal circuit shorted to voltage
- Ambient/Battery Temperature Sensor signal circuit open
- Ambient/Battery Temperature Sensor
- PCM
- Wiring harness intermittent
