P0340

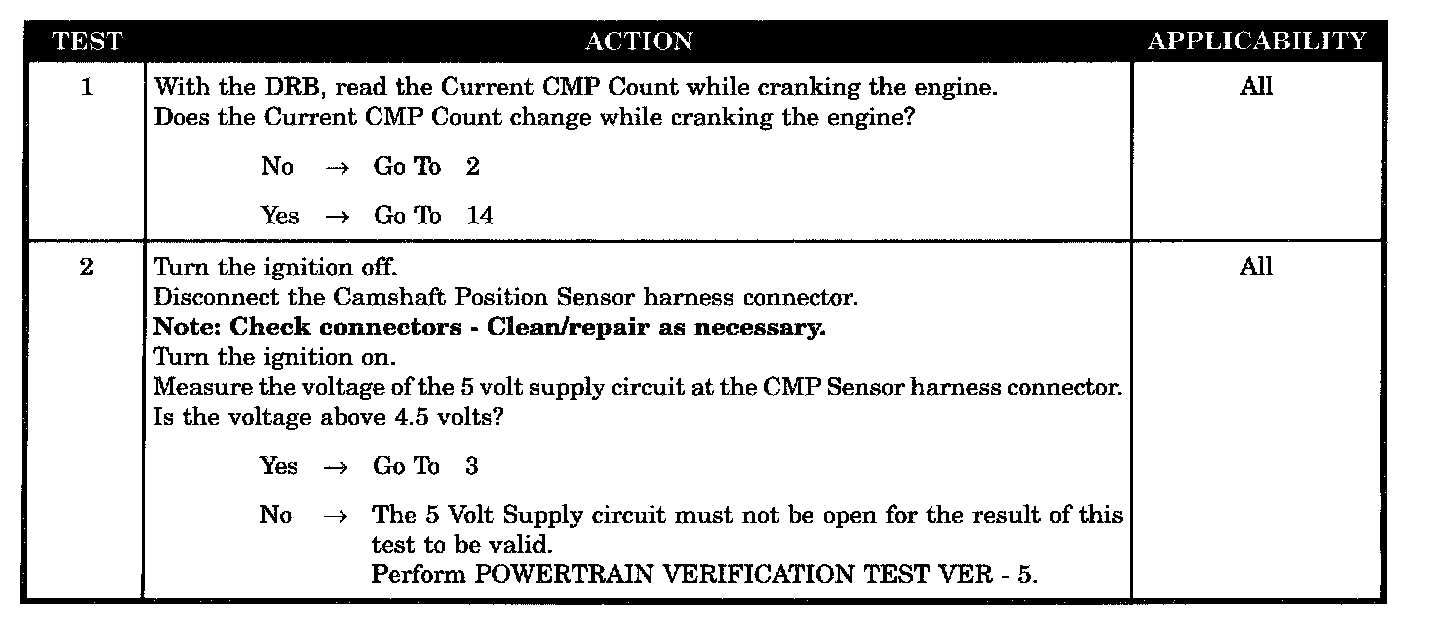

Tests 1 - 2:

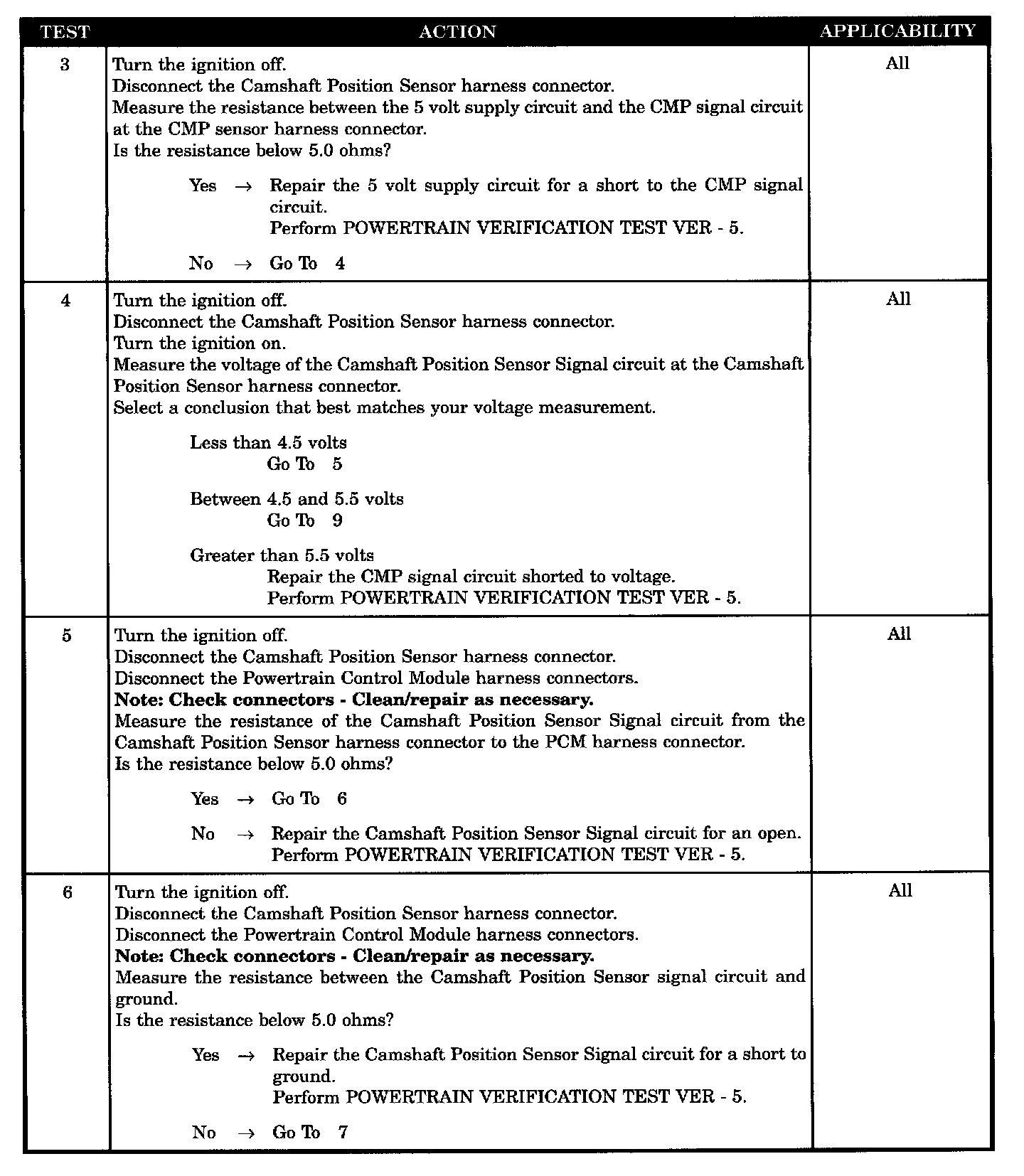

Tests 3 - 6:

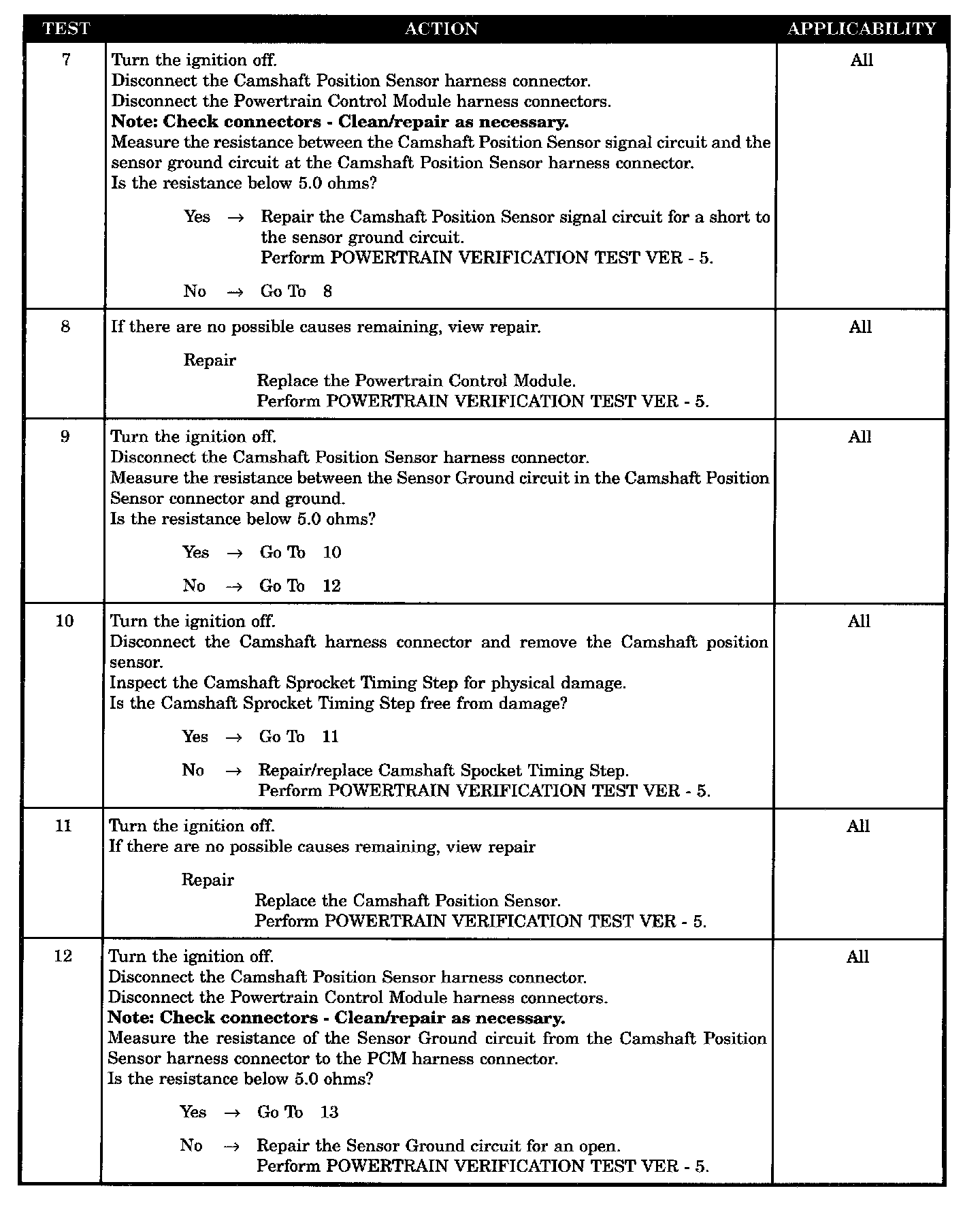

Tests 7 - 12:

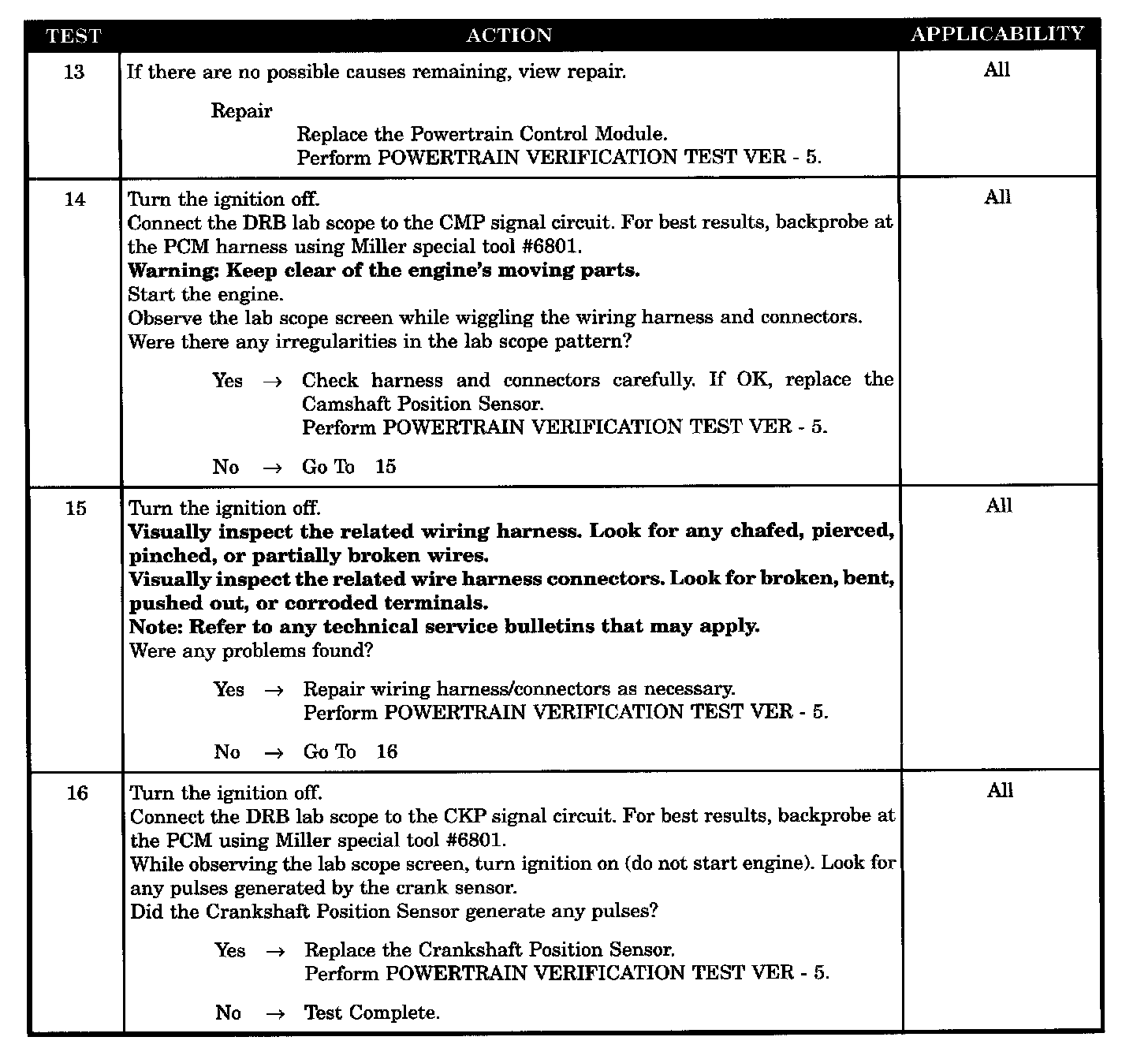

Tests 13 - 16:

SYMPTOM
P0340 - NO CAM SIGNAL AT PCM

WHEN MONITORED
Engine cranking/running.

SET CONDITION
At least 5 seconds have elapsed with Crankshaft Position Sensor signals present but no Camshaft Position Sensor signal.

POSSIBLE CAUSES
- CMP signal circuit shorted to voltage
- Damaged camshaft spocket timing step
- CMP sensor ground circuit open
- 5 volt supply circuit open
- Irregular lab scope pattern of CMP signal
- Wiring harness intermittent
- Stray signal from the crankshaft position sensor
- CMP signal circuit open
- CMP signal circuit shorted to ground
- CMP signal circuit shorted to sensor ground circuit
- 5 volt supply circuit shorted to CMP signal circuit
- Camshaft Position Sensor
- Powertrain Control Module (CMP sensor signal circuit)
- Powertrain Control Module (CMP sensor ground circuit)
