P0175

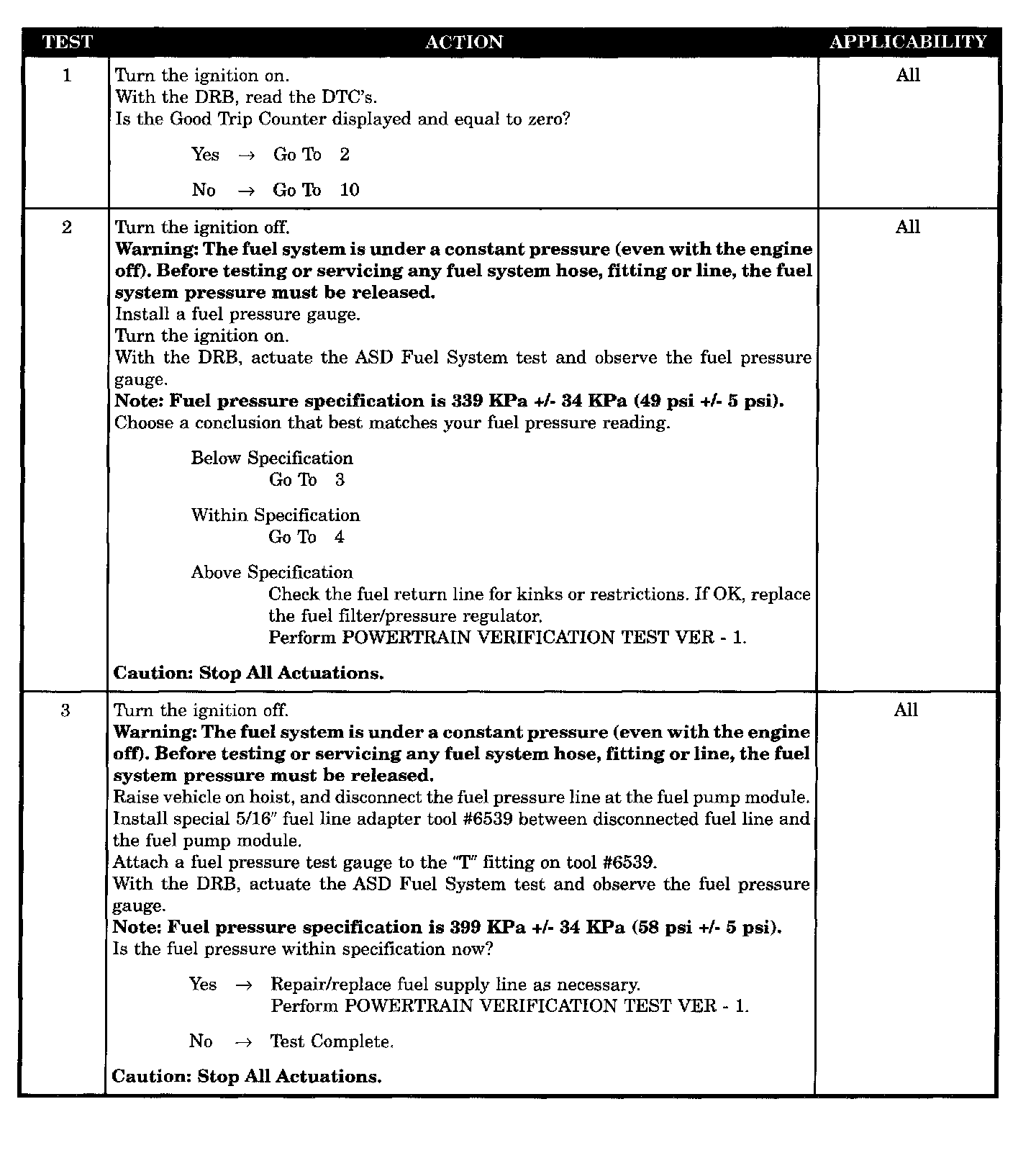

Tests 1 - 3:

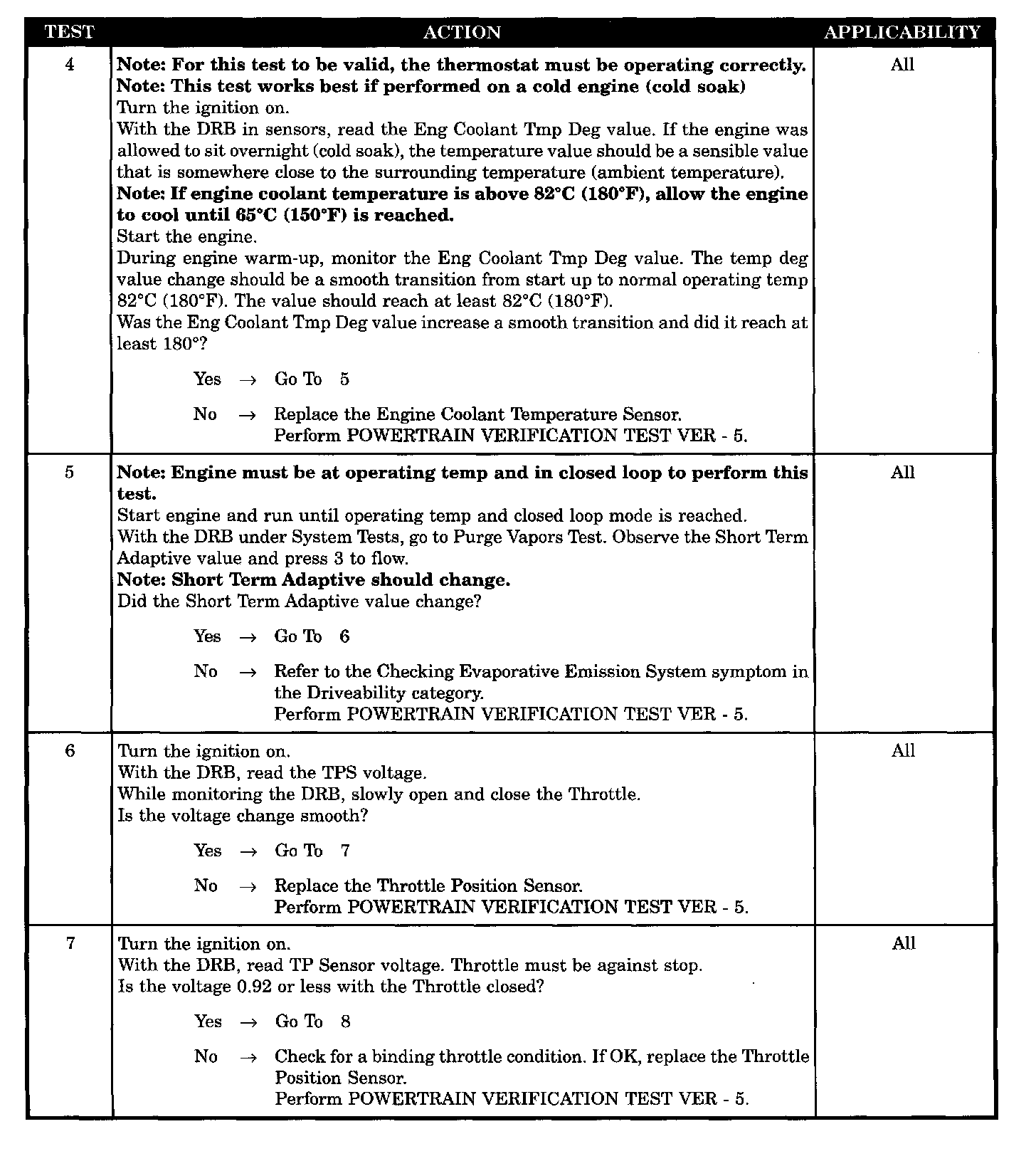

Tests 4 - 7:

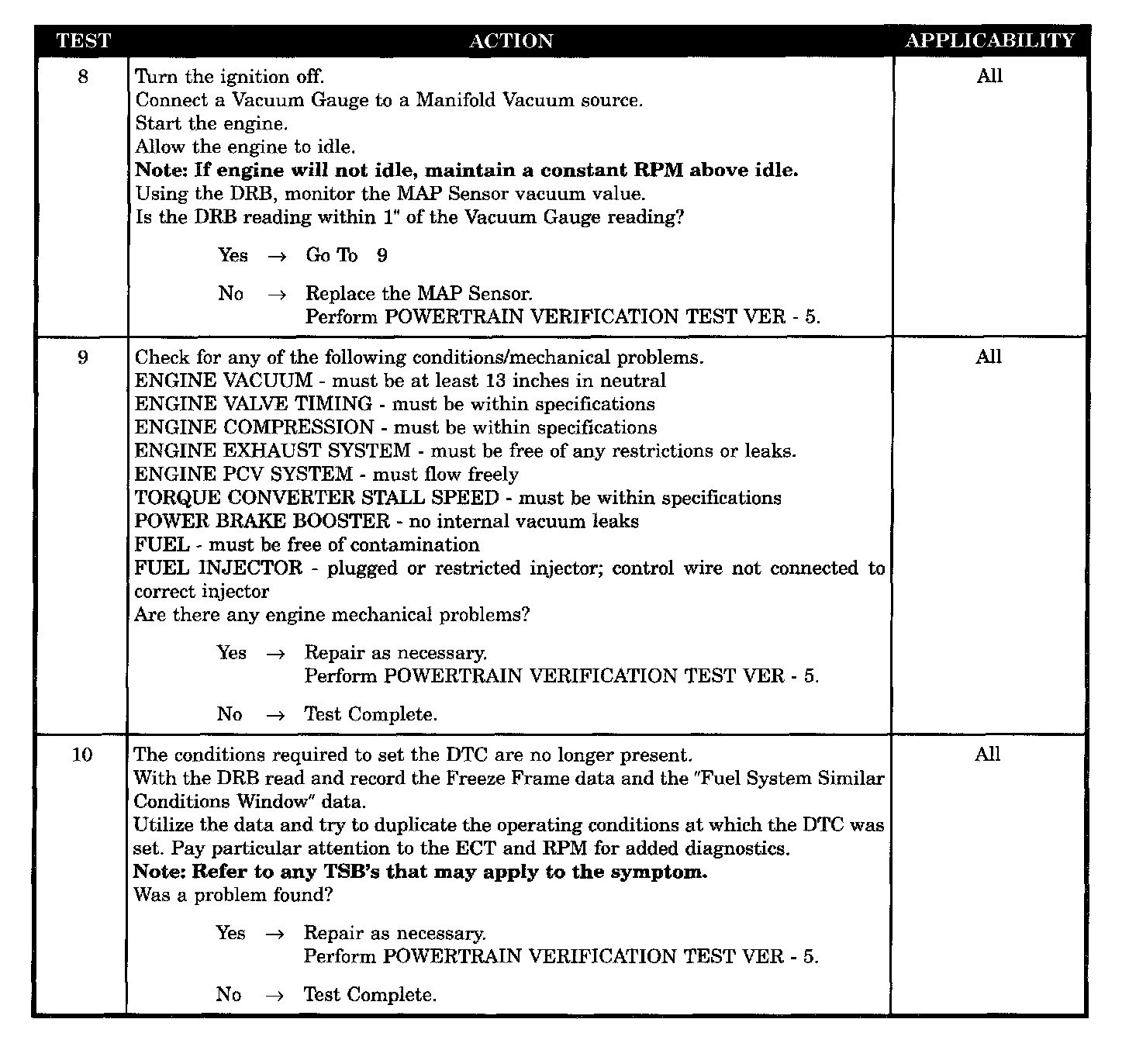

Tests 8 - 10:

SYMPTOM
P0175 - 2/1 FUEL SYSTEM RICH

TEST NOTE
This symptom is diagnosed using the test P0172 - 1/1 FUEL SYSTEM RICH

WHEN MONITORED
With the engine running in closed loop mode, the ambient/battery temperature above 20 °F and altitude below 8000 ft.

SET CONDITION
If the PCM multiplies short term compensation by long term adaptive and the result is below a certain value for two trips, a freeze frame is stored, the MIL illuminates and a trouble code is stored.

POSSIBLE CAUSES
- Fuel filter/pressure regulator (high)
- ECT sensor (out of calibration)
- Engine mechanical problem
- EVAP system failure
- Intermittent fuel system DTC
- Restricted fuel supply line
- TPS voltage change not smooth
- TPS voltage greater than 0.92 volts with throttle closed
- Fuel pump inlet strainer plugged
- Fuel pump module
- MAP sensor (out of calibration)
