VTSS Indicator Lamp Not Operating Properly

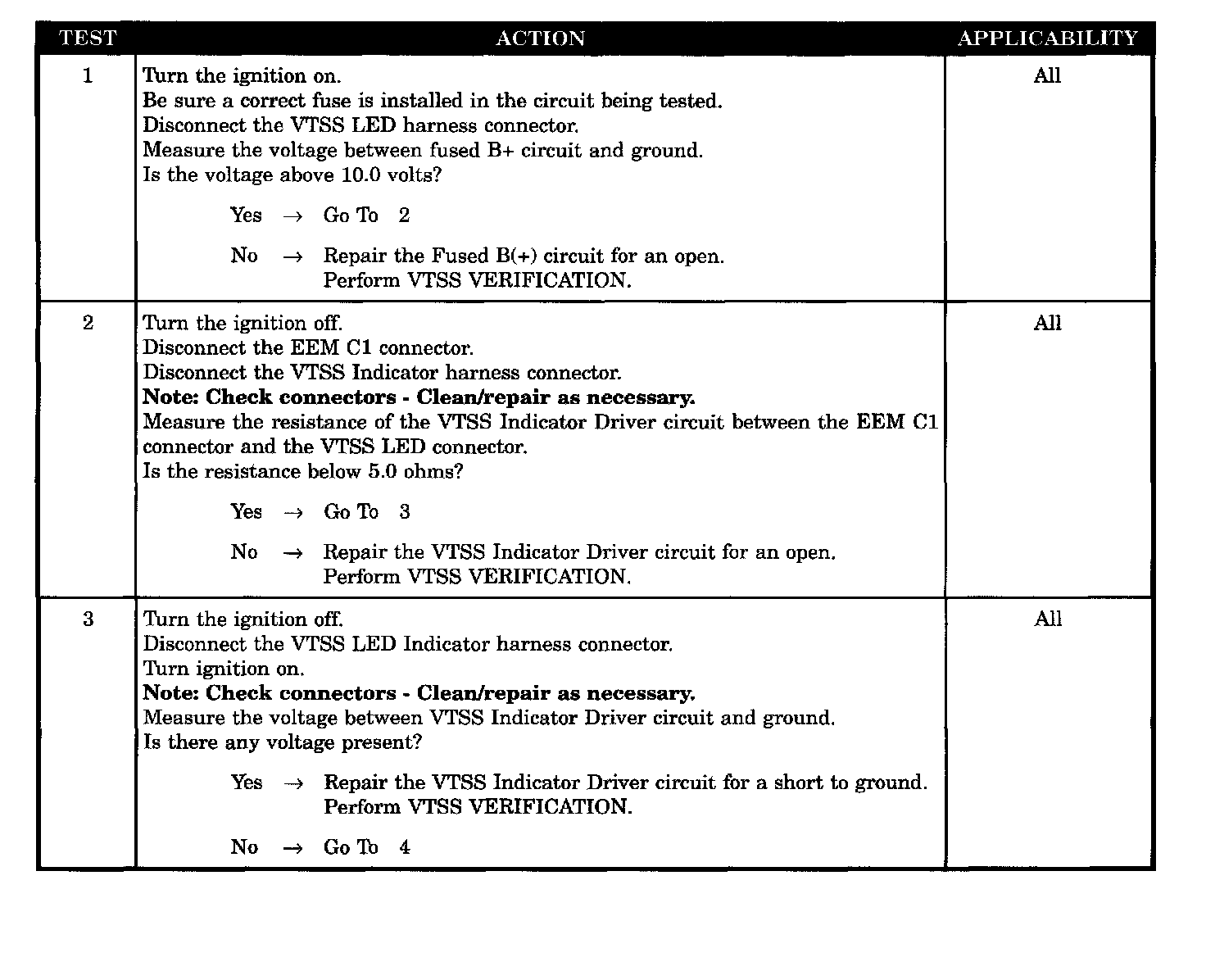

Test 1 - 3:

Test 4 - 5:

SYMPTOM
VTSS INDICATOR LAMP NOT OPERATING PROPERLY

POSSIBLE CAUSES
- VTSS Fused B(+) circuit open
- VTSS Indicator Driver Circuit open
- VTSS Indicator Driver Circuit shorted to ground
- VTSS Indicator - inoperative
- EEM-VTSS Indicator Lamp inoperative
