Loss of Ignition Run/Start (Active)

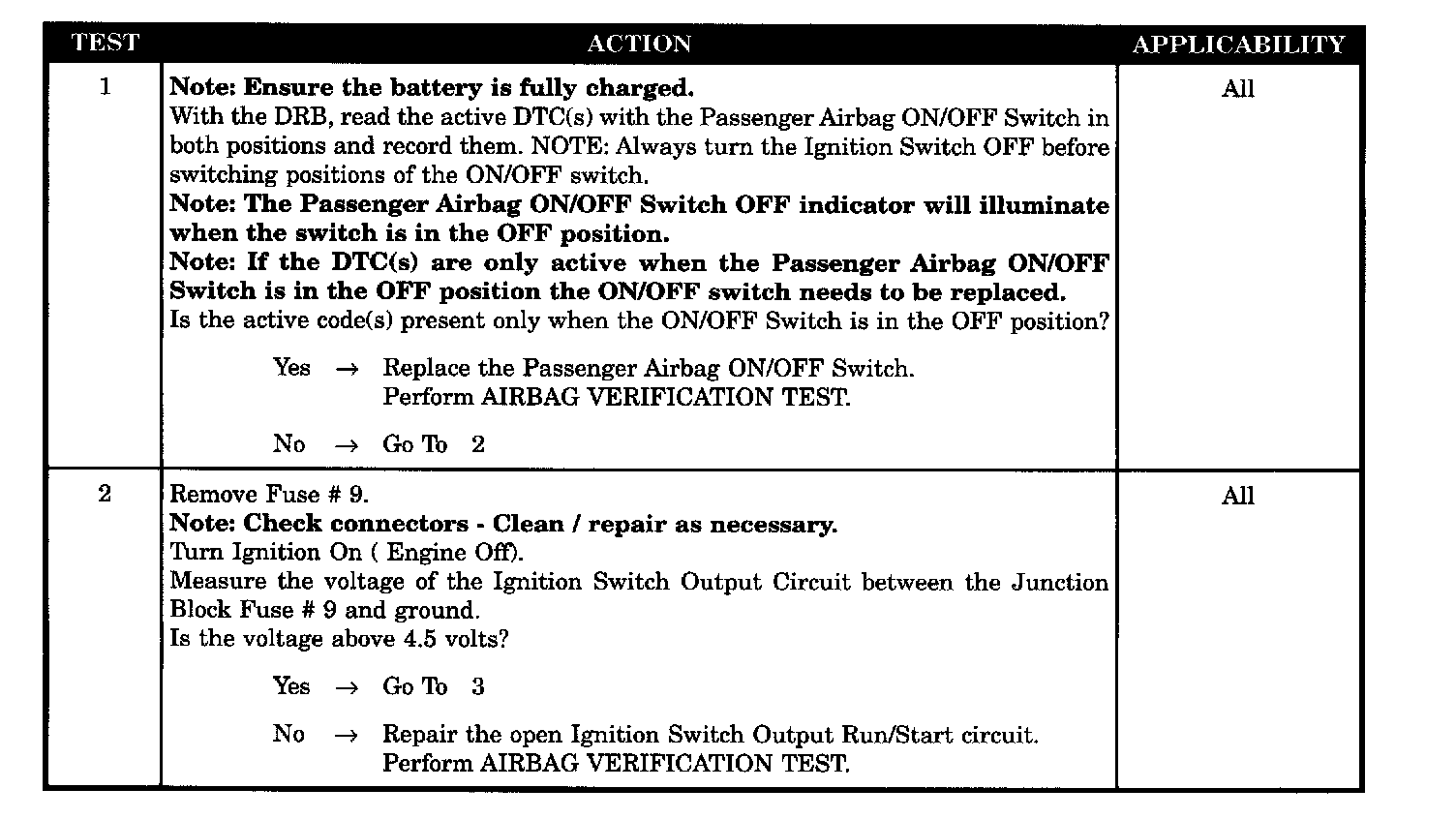

Test 1 - 2:

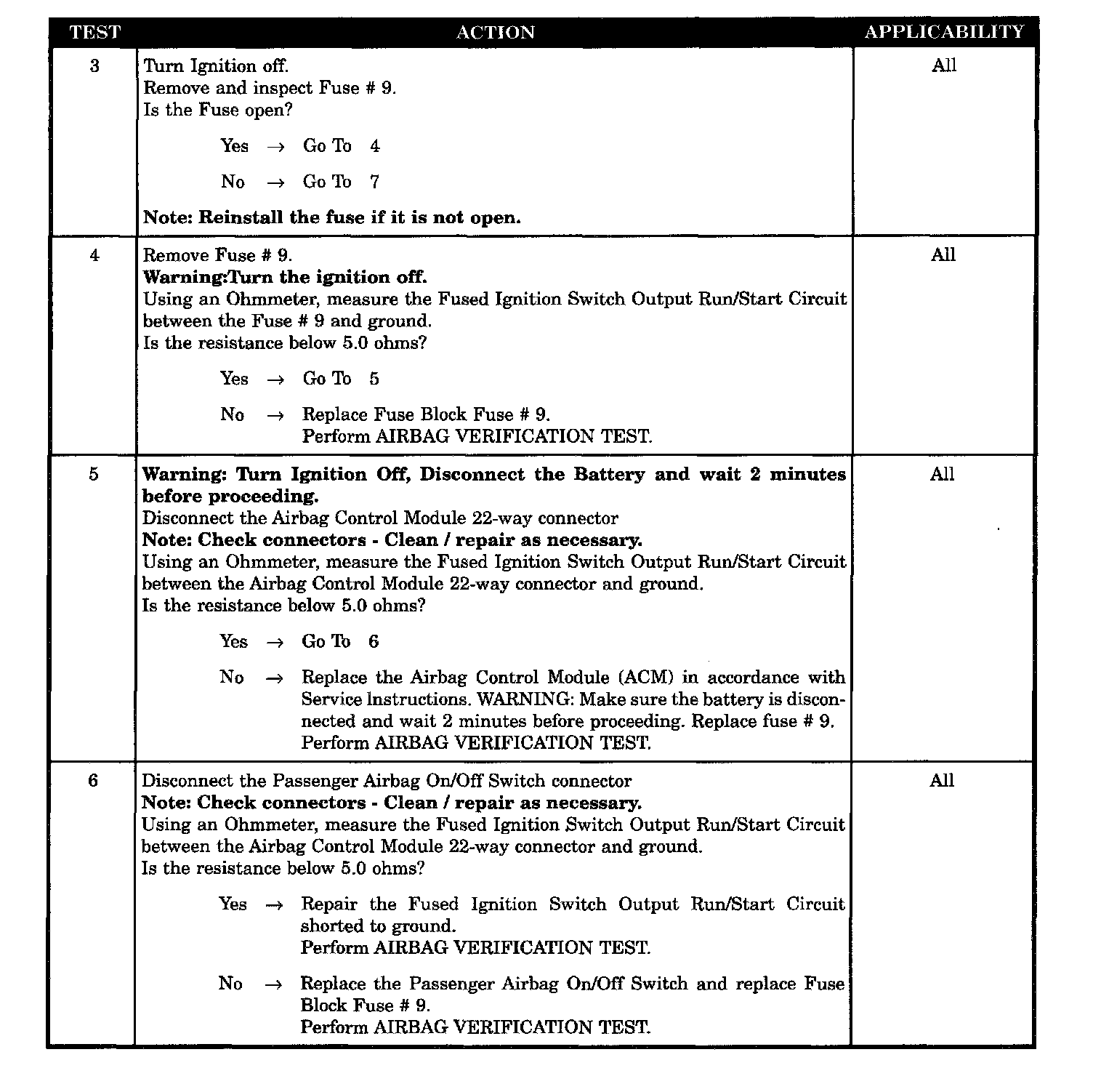

Test 3 - 6:

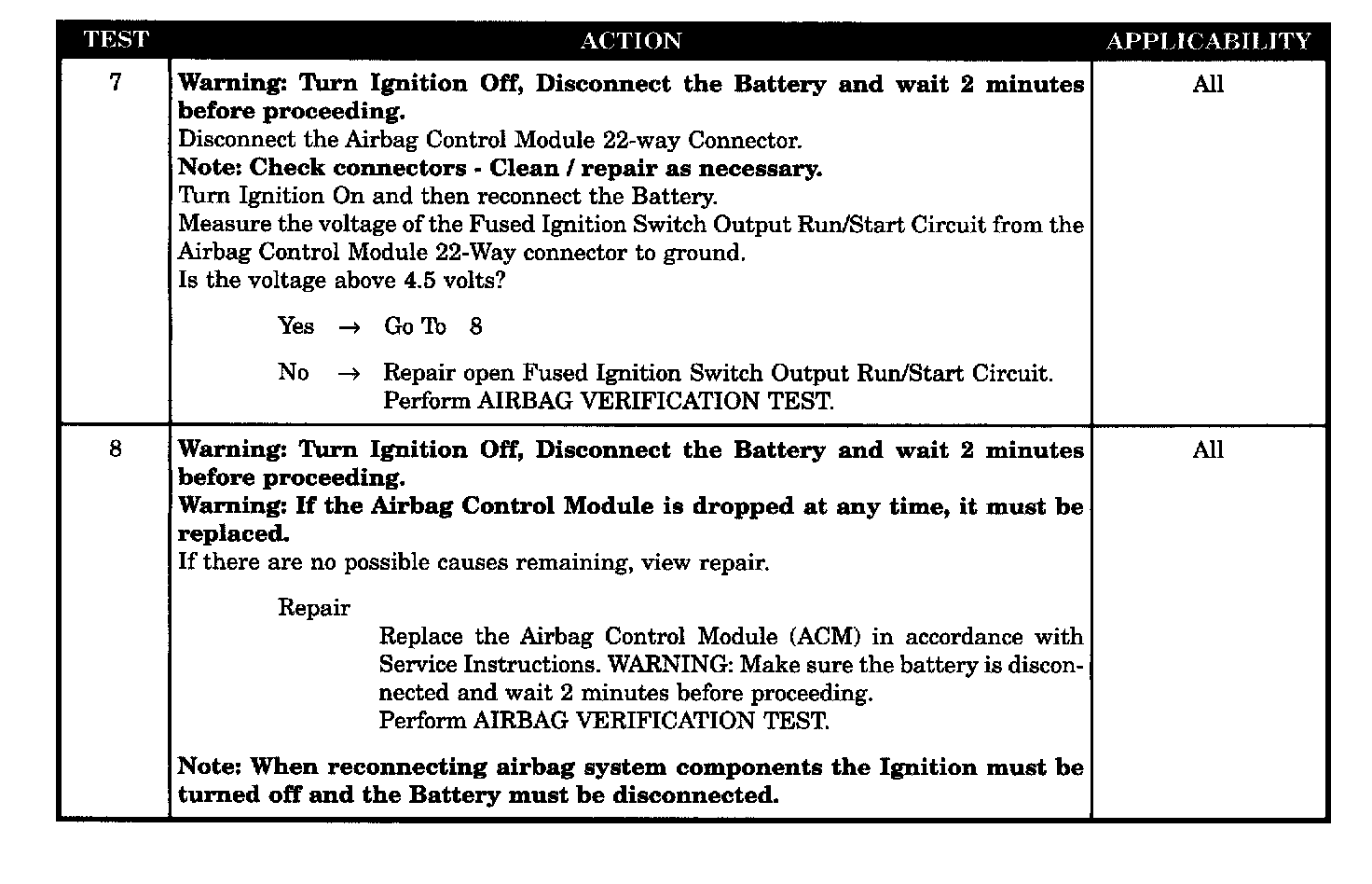

Test 7 - 8:

SYMPTOM
LOSS OF IGNITION RUN/START (ACTIVE)

WHEN MONITORED
With the ignition in the Run/Start position the ACM monitors the Fused Ignition Switch Output Run/Start circuit for proper system voltage.

SET CONDITION
If the voltage on the Fused Ignition Switch Output Run/Start circuit drops below 4.5 volts , the code will set.

POSSIBLE CAUSES
- Fused Ignition Switch output run/start circuit shorted to ground
- DTC active with PAB in OFF position only
- Ignition Switch Run/Start circuit
- Fused Ignition SW output run/start shorted to ground
- ACM, Fused Ignition SW output run/start shorted to ground
- ON/OFF switch, fused ignition switch output run/start circuit shorted to ground
- Fused Ignition Switch output run/start circuit open ACM, fused ignition Run/Start open
