No Response From Electronic Entry Module

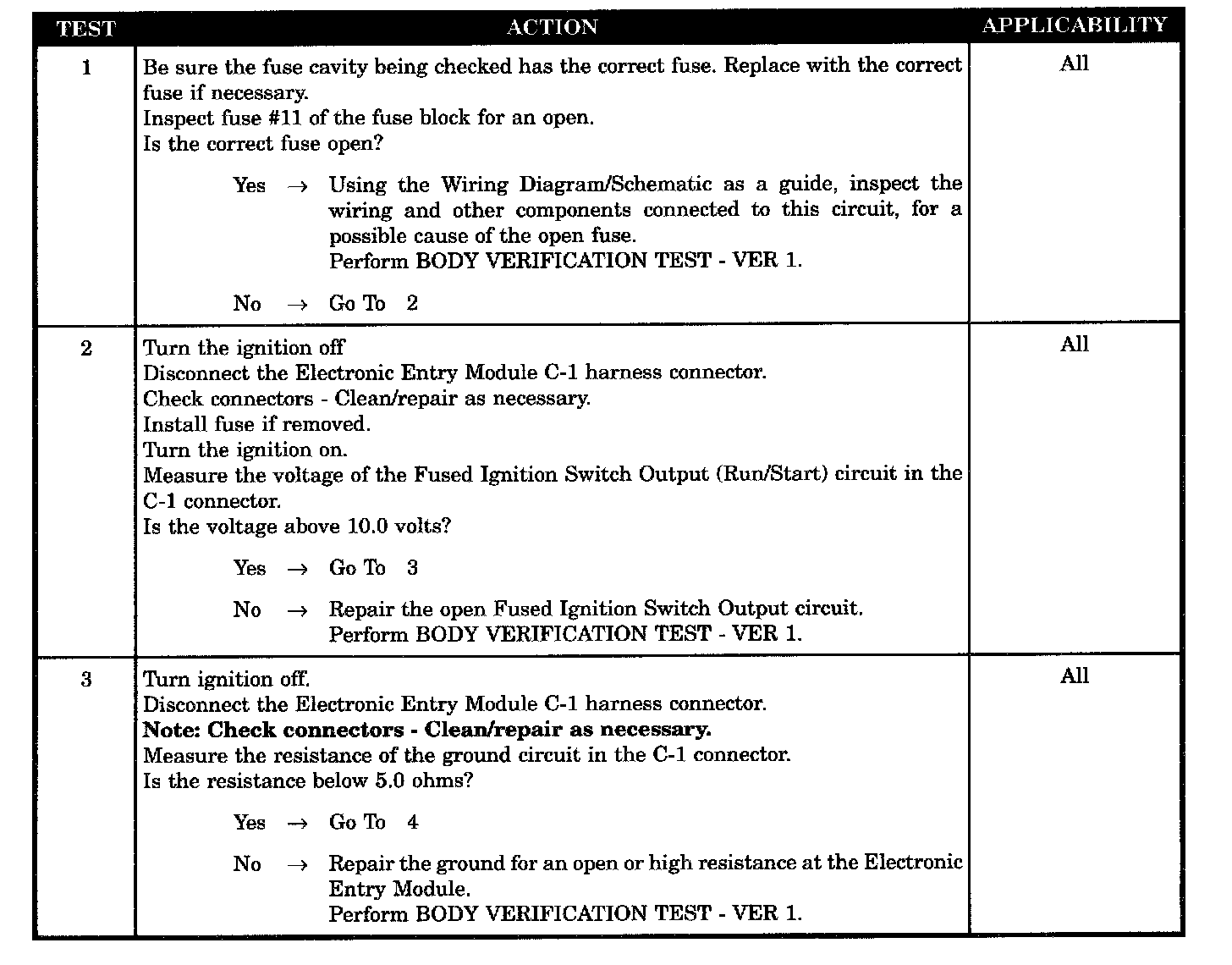

Test 1 - 3:

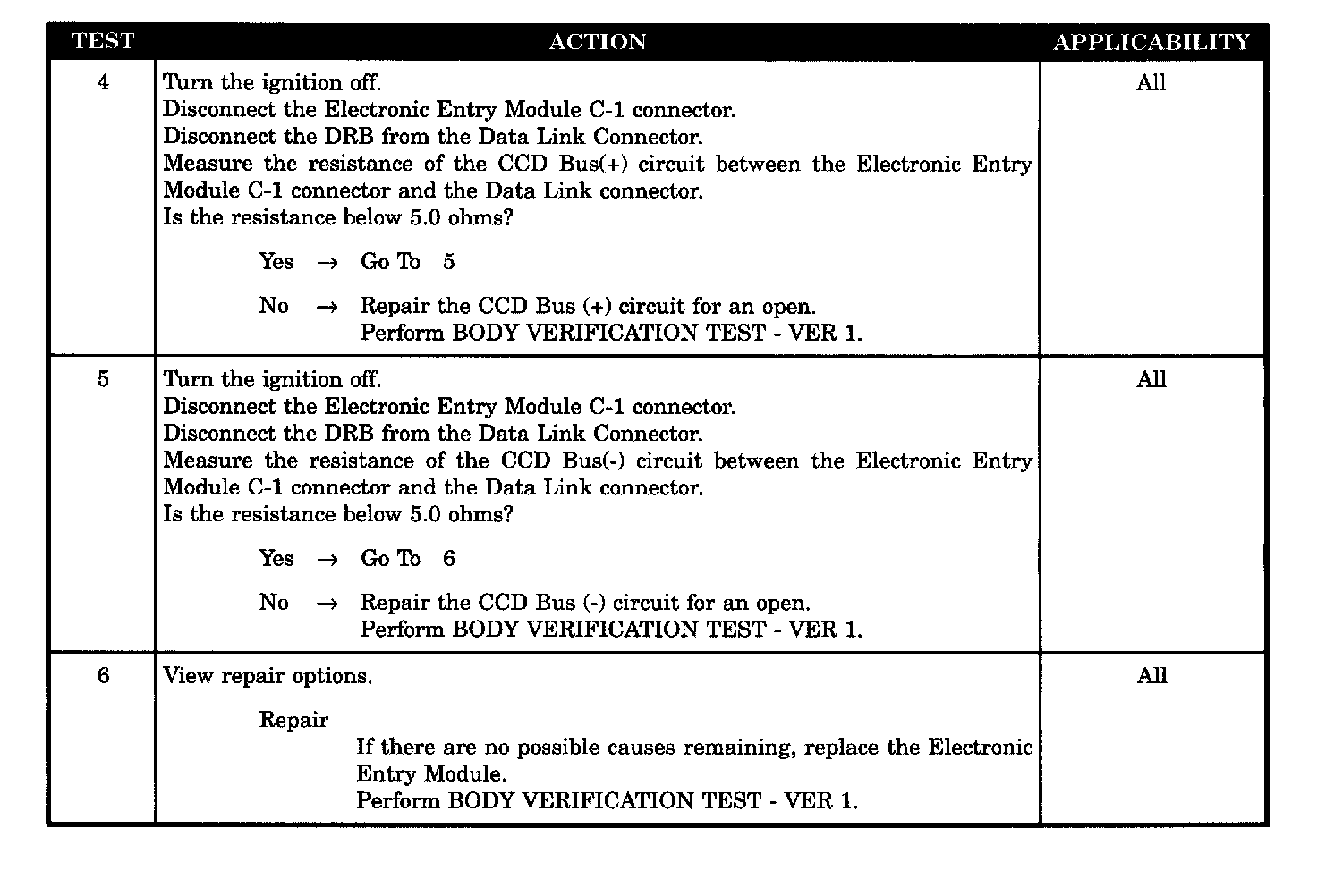

Test 4 - 6:

SYMPTOM
NO RESPONSE FROM ELECTRONIC ENTRY MODULE

POSSIBLE CAUSES
- Fuse block fuse #11 open
- Fused ignition switch output (Run/Start) open
- EEM ground circuit open
- CCD bus (+) open to EEM
- CCD bus (-) open to EEM
- Electronic entry module
