No Response From Airbag Control Module

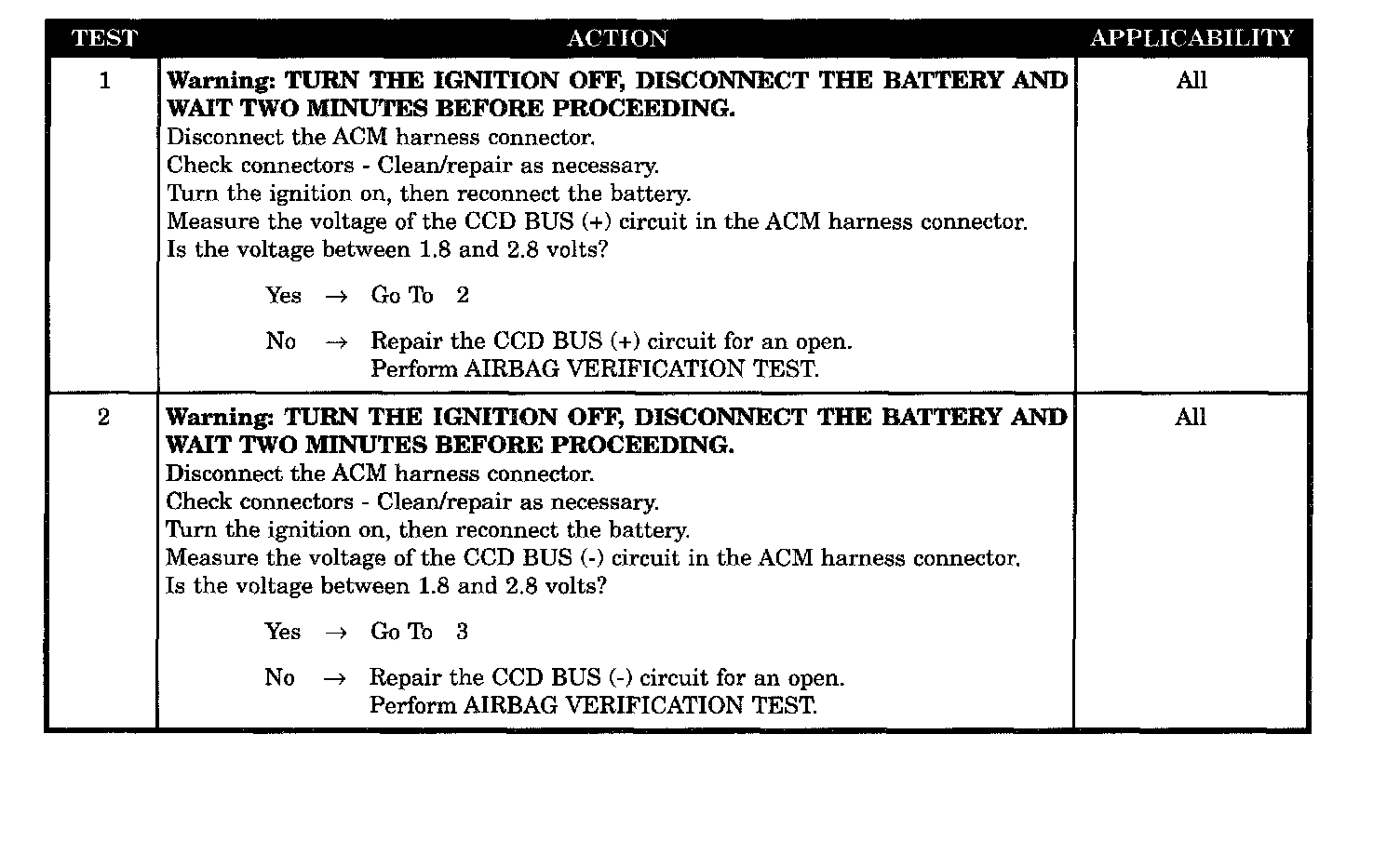

Test 1 - 2:

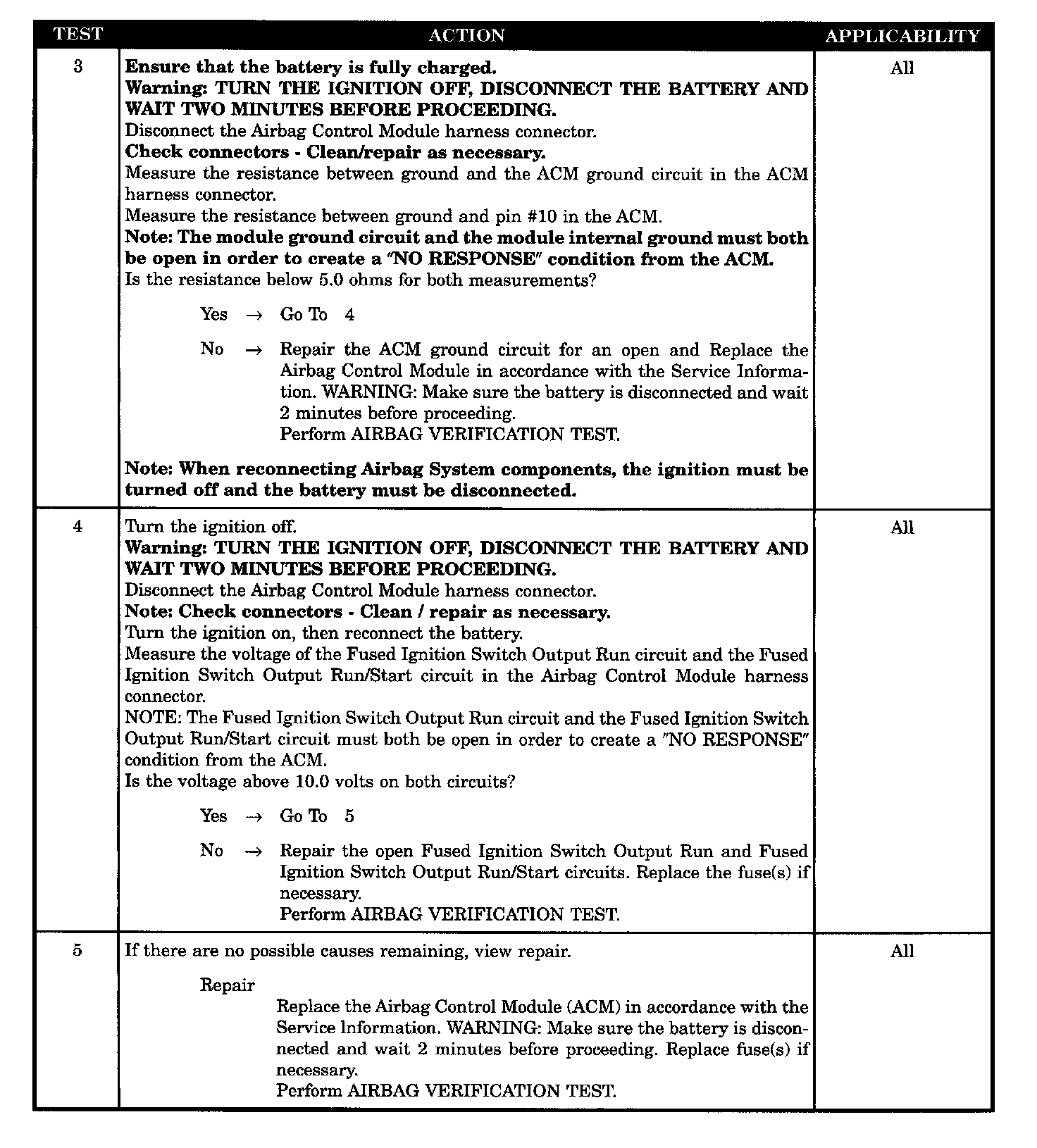

Test 3 - 5:

SYMPTOM
NO RESPONSE FROM AIRBAG CONTROL MODULE

POSSIBLE CAUSES
- CCD Bus (+) open to ACM
- CCD Bus (-) open to ACM
- ACM ground circuits
- Fused ignition switch output CKTS (run and run/start)
- Airbag control module
