Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Dodge
>>
2000
>>
Stratus V6-2.5L VIN H
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Vehicle Speed Sensor
>>
Diagrams
>>
Connector Views
Connector Views

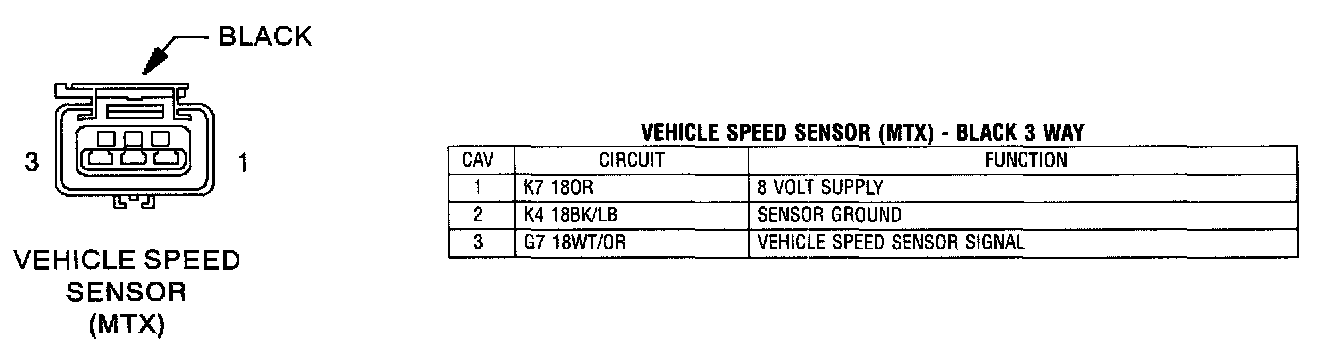

Vehicle Speed Sensor (MTX):

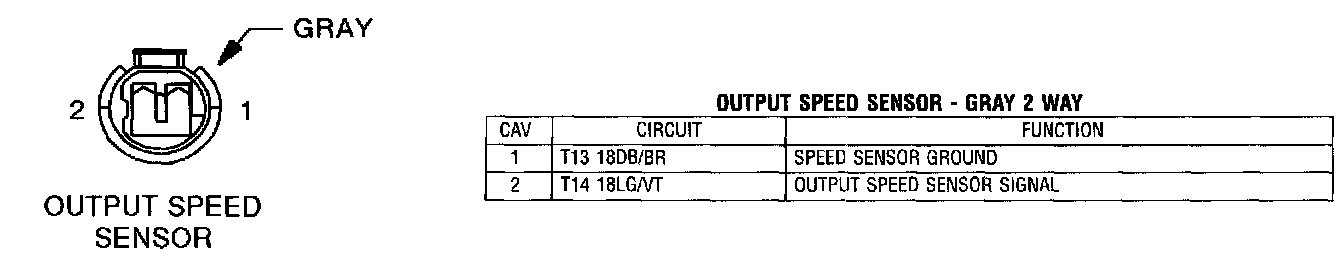

Output Speed Sensor:
