Canister Purge Solenoid
Canister Purge Solenoid

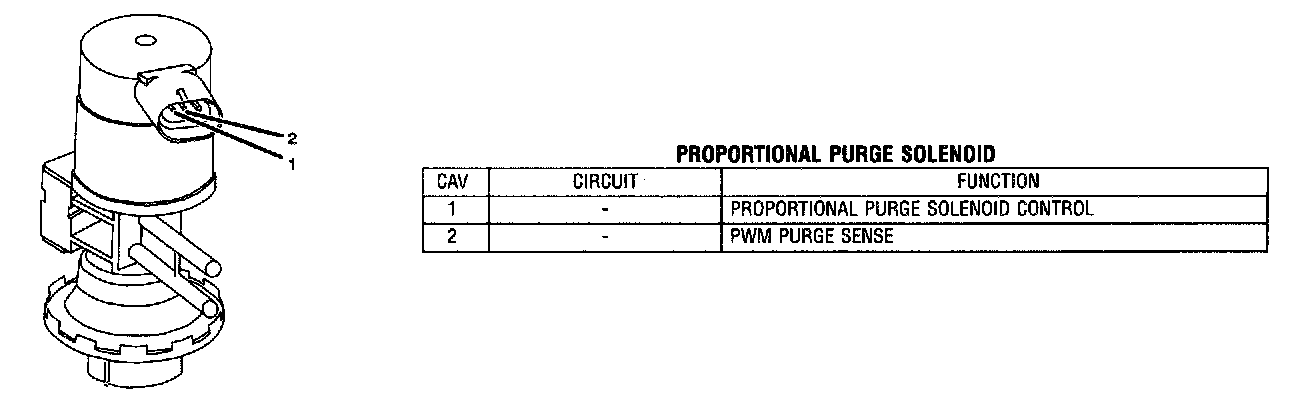

Proportional Purge Solenoid (Solenoid Side):

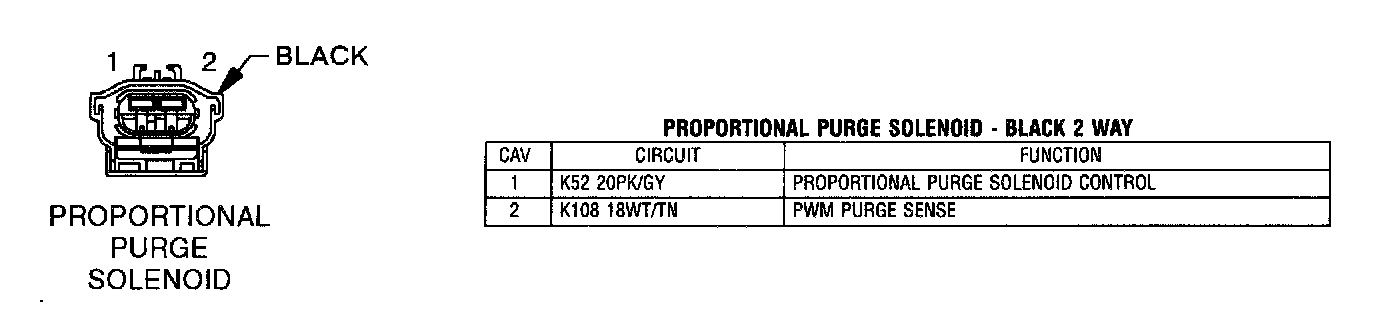

Proportional Purge Solenoid (Harness Side):
