Instrument Cluster Disassembly and Assembly

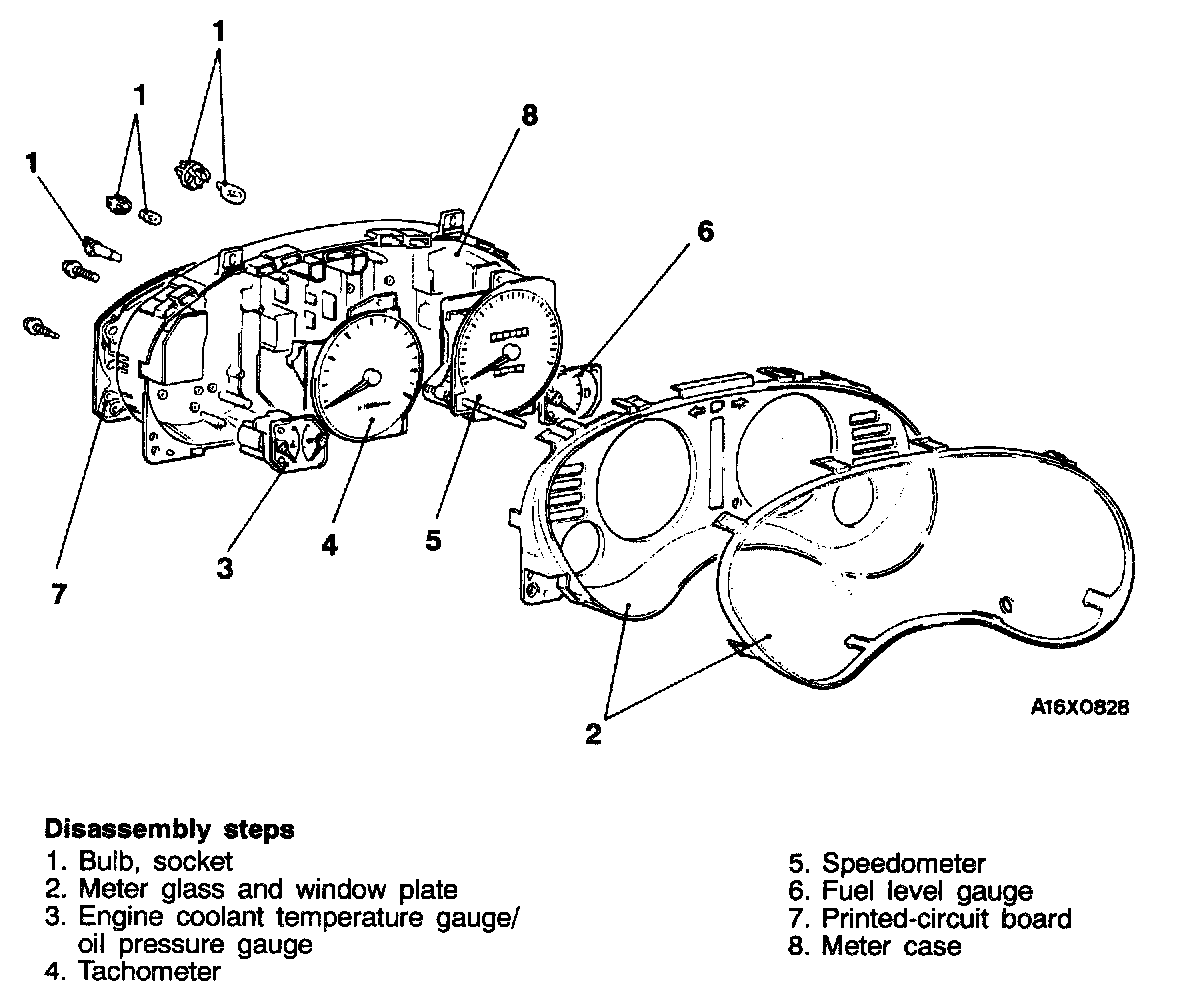

Disassembly
To disassemble, follow the steps listed.

Reassembly
To reassemble, reverse the steps listed.
