Windshield Washer Reservoir: Service and Repair

REMOVAL
1. Unlock and open the hood.

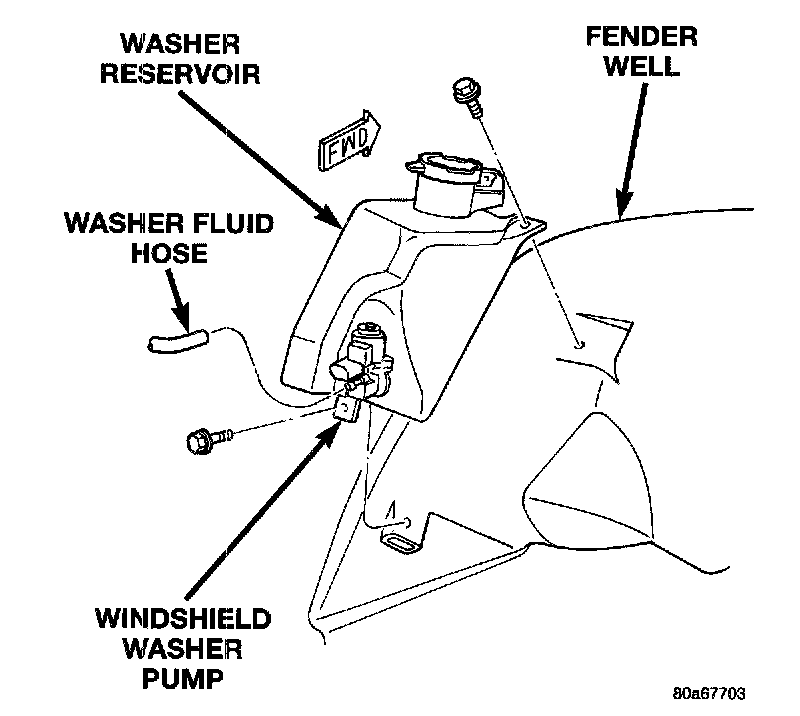

Windshield Washer Reservoir:

2. Remove screws attaching the reservoir.
3. Disconnect the wiring harness from the reservoir pump and sensor, if equipped.

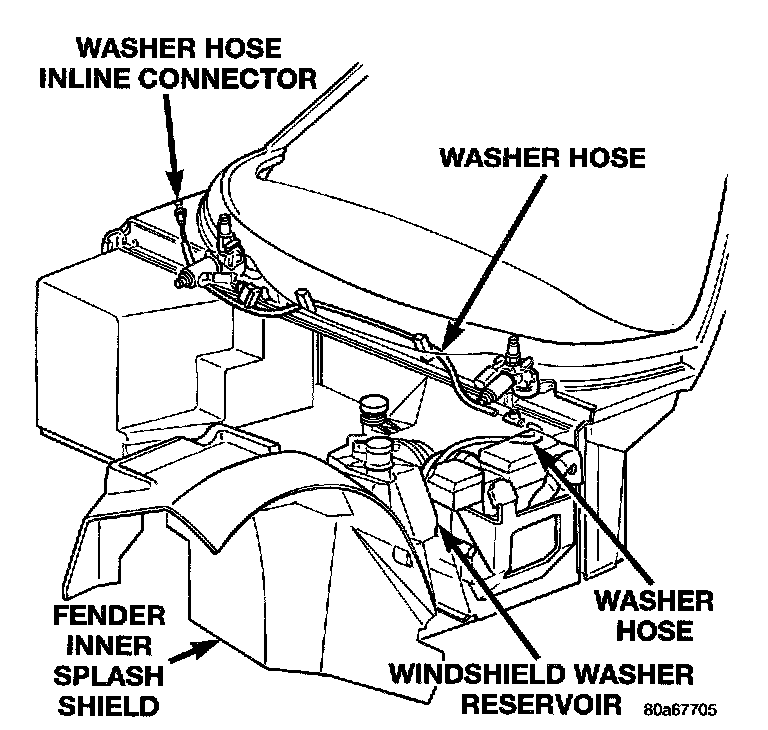

Windshield Washer Hoses:

4. Disconnect the washer hose and plug the liquid outlet to prevent the liquid leaking out.

INSTALLATION
For installation reverse above procedures. Tighten attaching nuts to 3 Nm (26 in. lbs.) torque.
