Driver/Vehicle Information Display

8w-46-2:

Buzzer Module
Fuse 11 (FB)
Fuse 13 (FB)
Fuse Block
G200
Illuminated Rearview Mirror
Message Center
Radio

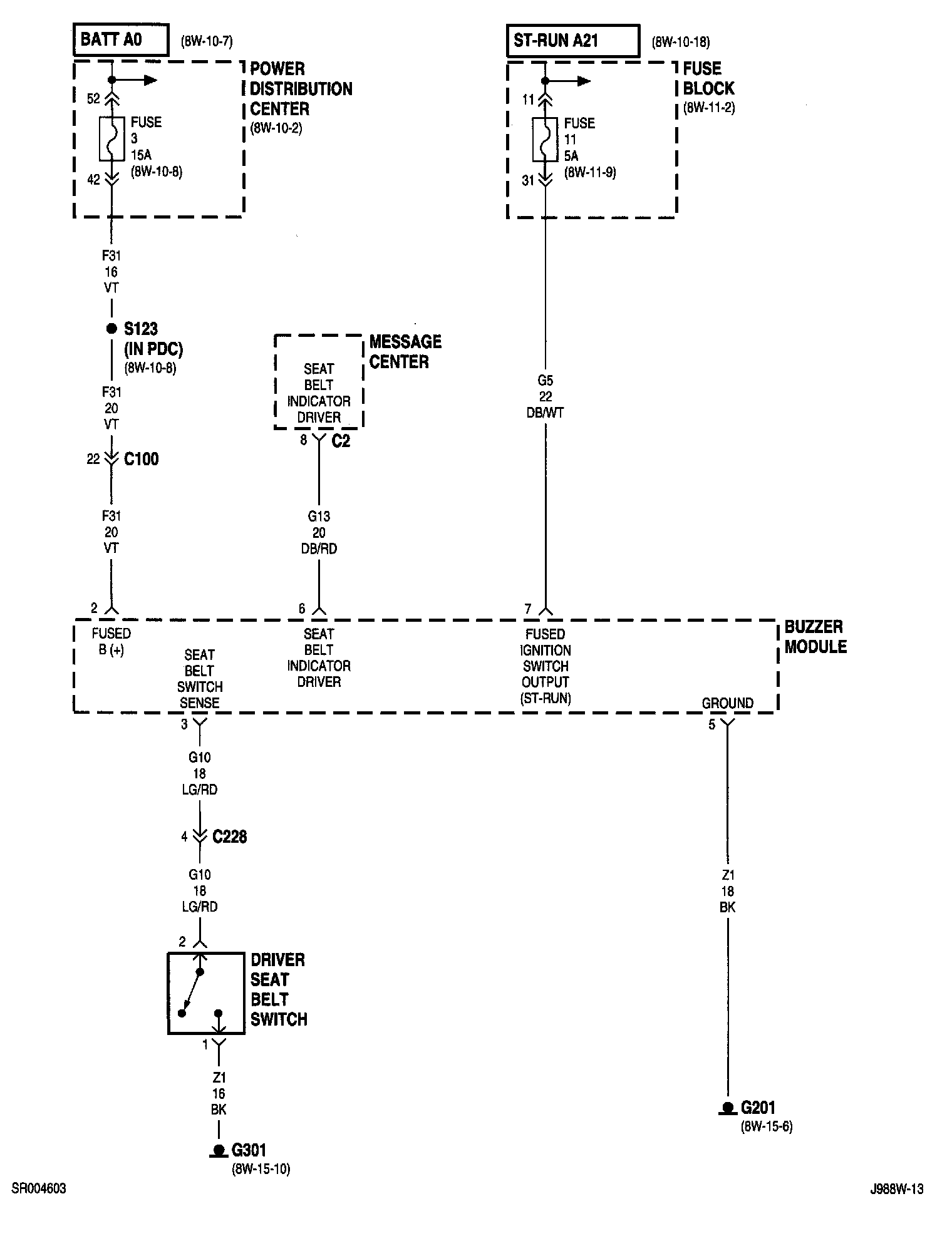

8w-46-3:

Buzzer Module
Driver Seat Belt Switch
Fuse 3 (PDC)
Fuse 11 (FB)
Fuse Block
G201
G301
Message Center
Power Distribution Center

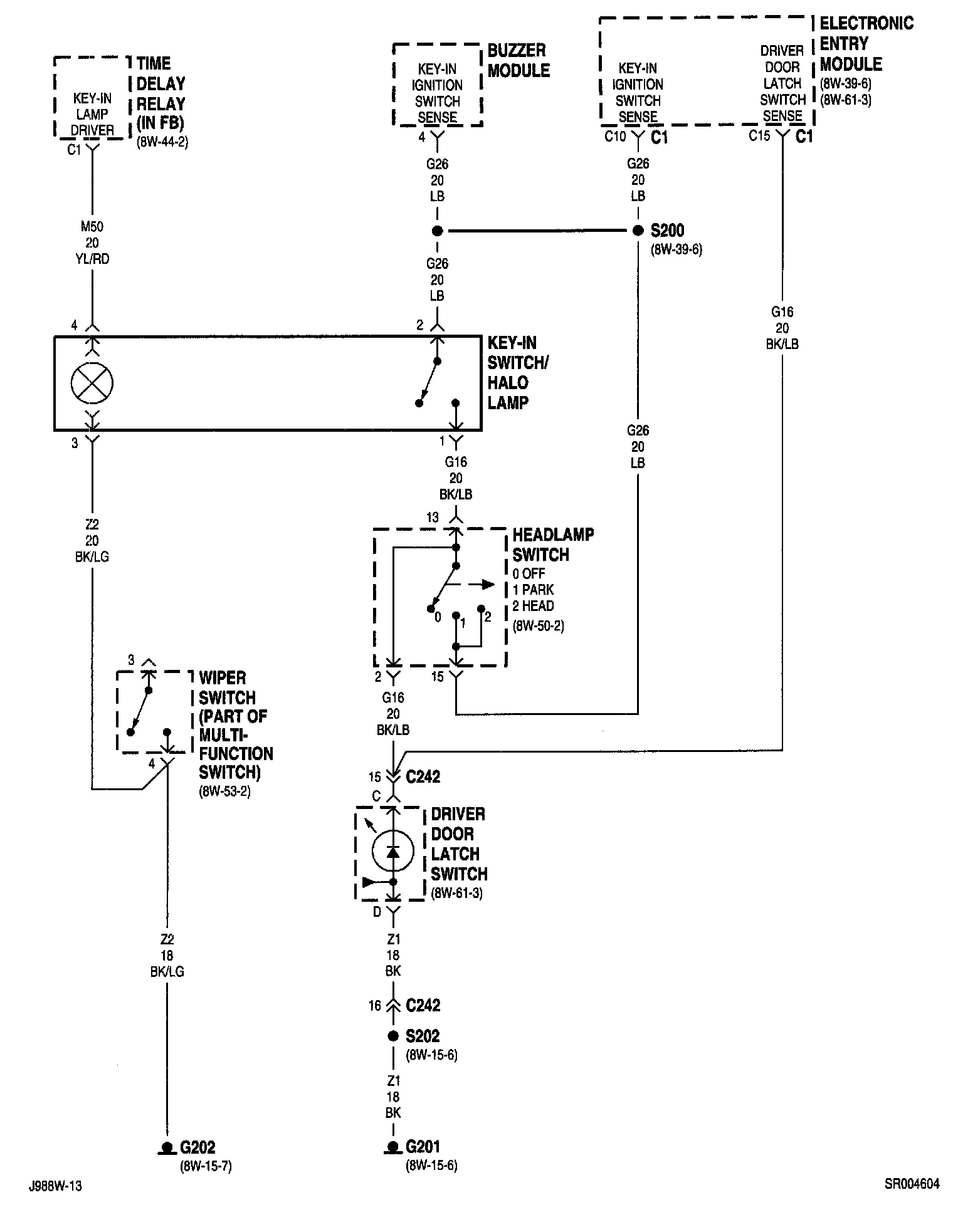

8w-46-4:

Buzzer Module
Driver Door Latch Switch
Electronic Entry Module
G201
G202
Headlamp Switch
Key-In Switch/Halo Lamp
Time Delay Relay
Wiper Switch

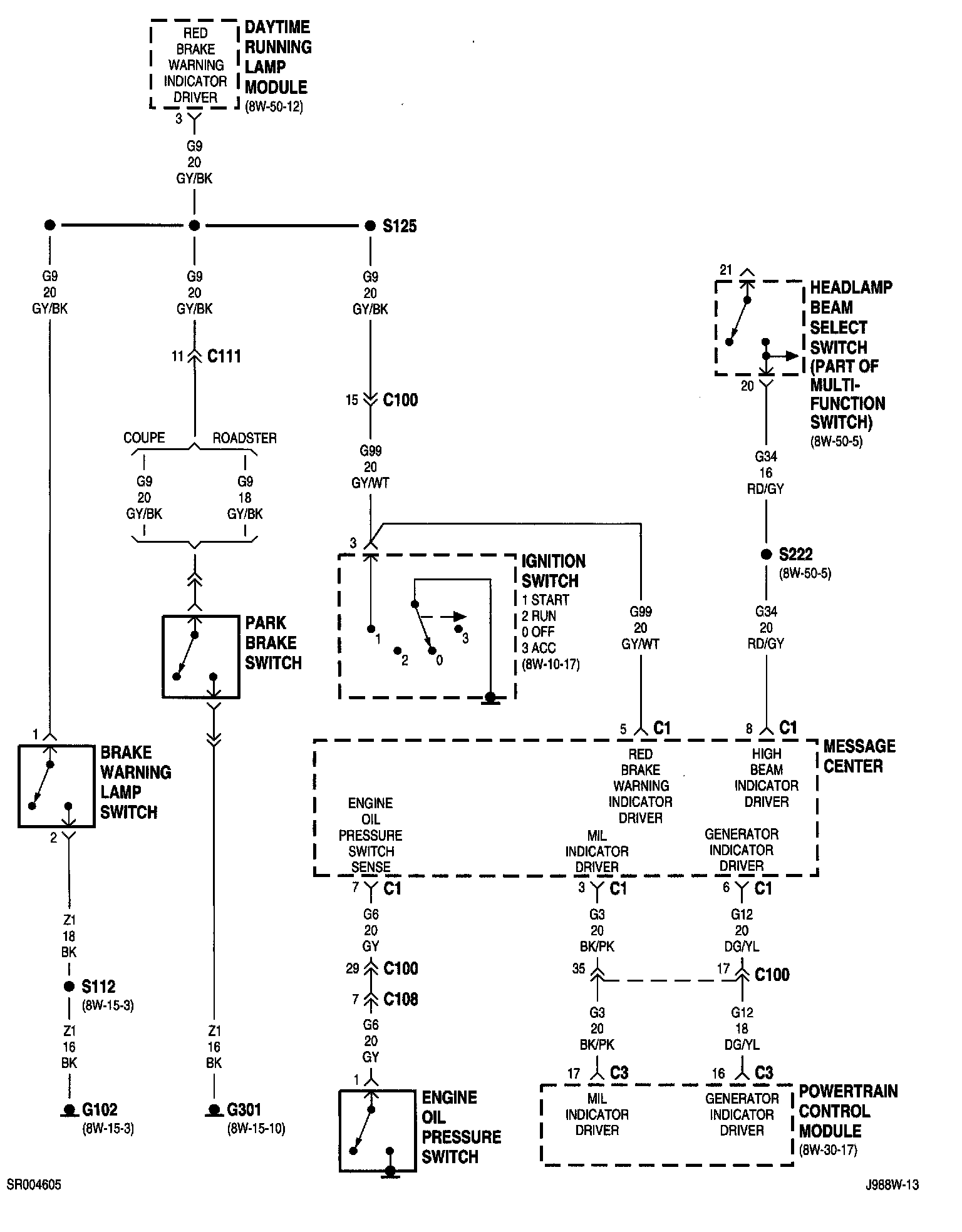

8w-46-5:

Brake Warning Lamp Switch
Daytime Running Lamp Module
Engine Oil Pressure Switch
G102
G301
Headlamp Beam Select Switch
Ignition Switch
Message Center
Park Brake Switch
Powertrain Control Module

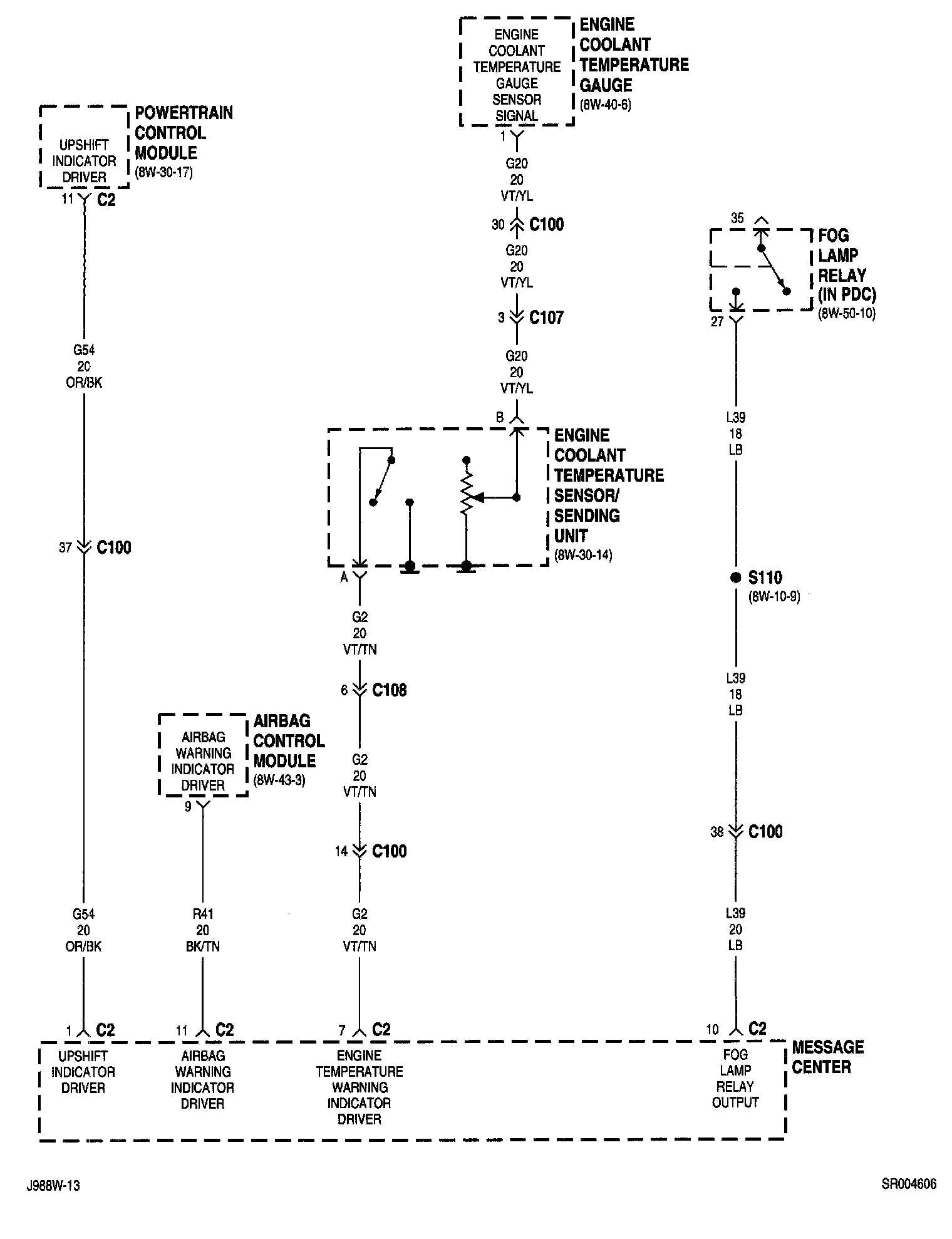

8w-46-6:

Airbag Control Module
Engine Coolant Temperature Gauge
Engine Coolant Temperature Sensor/Sending Unit
Fog Lamp Relay
Message Center
Powertrain Control Module

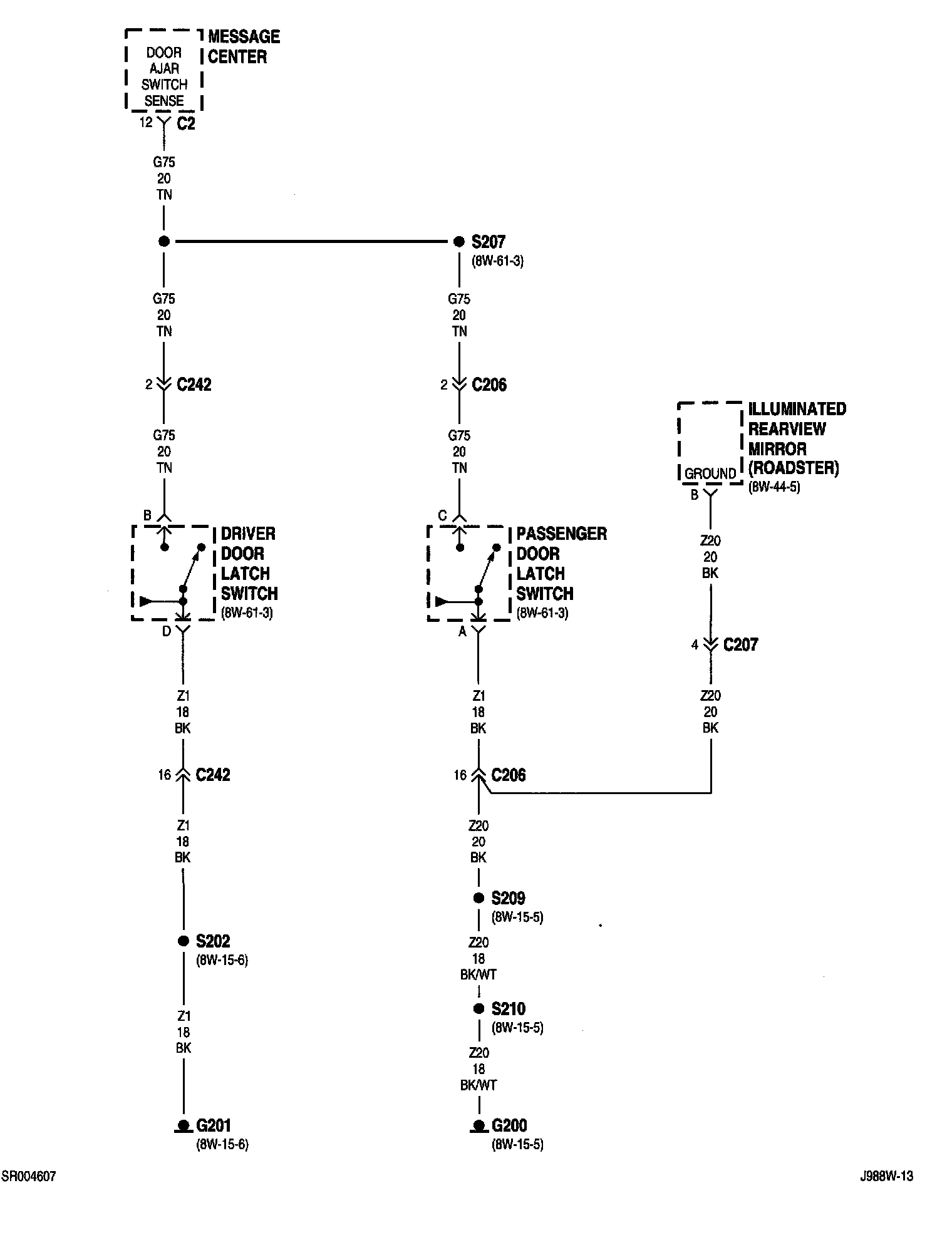

8w-46-7:

Driver Door Latch Switch
G200
G201
Illuminated Rearview Mirror
Message Center
Passenger Door Latch Switch

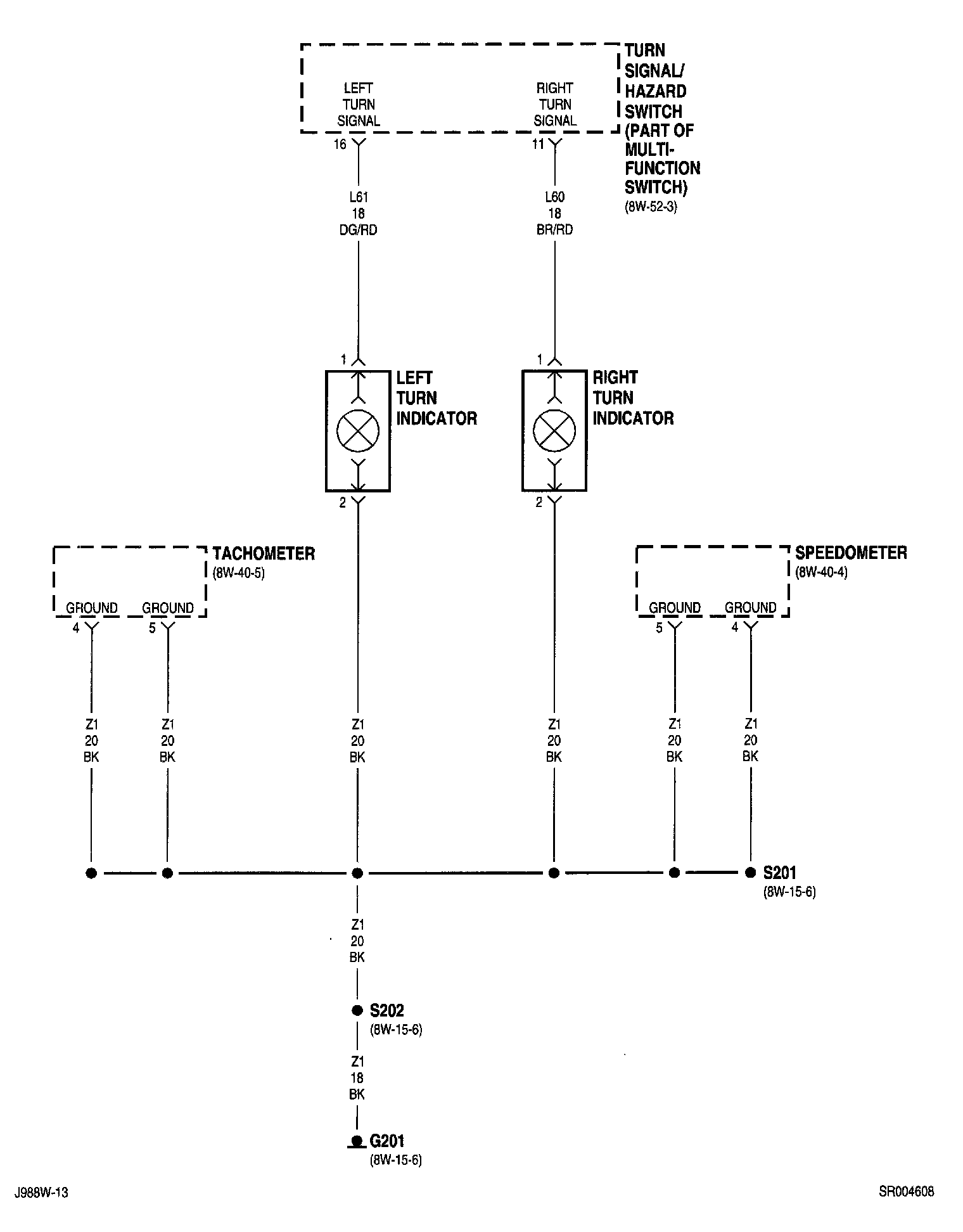

8w-46-8:

G201
Left Turn Indicator
Right Turn Indicator
Speedometer
Tachometer
Turn Signal/Hazard Switch


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
