Front Door Latch
Front Door Latch

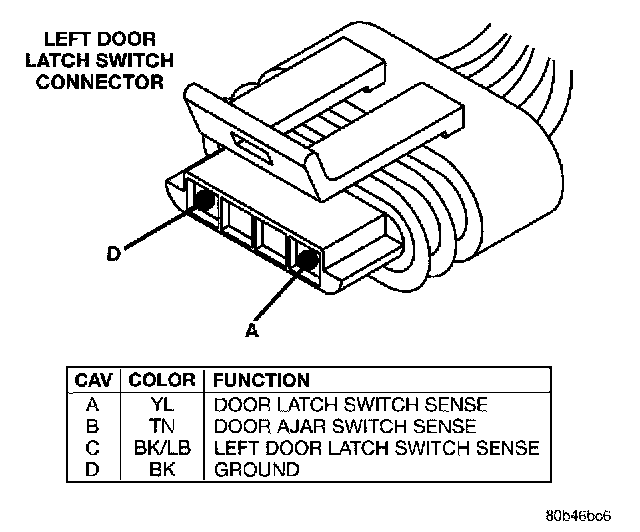

Left Door Latch Switch Connector:

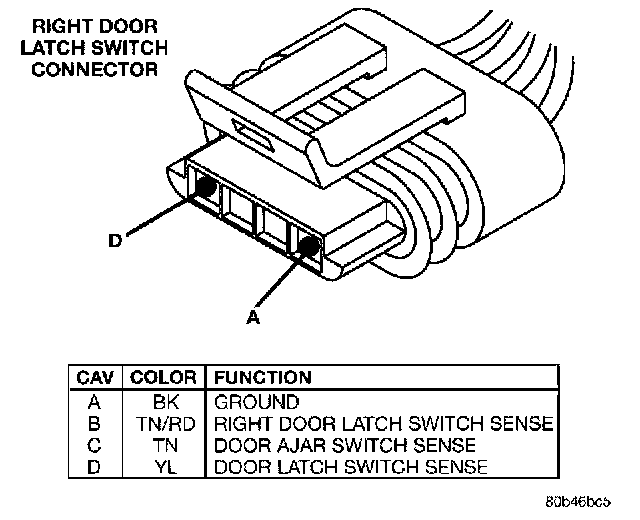

Right Door Latch Switch Connector:

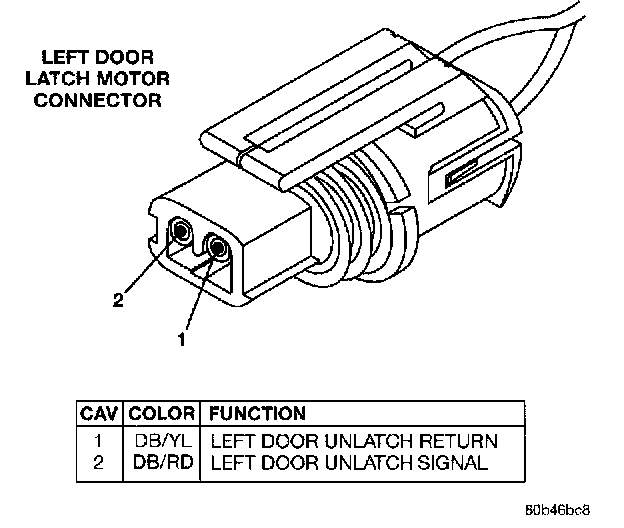

Left Door Latch Motor Connector:

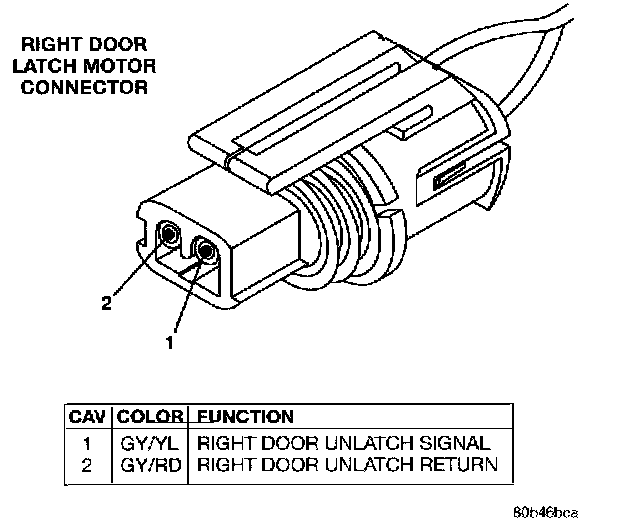

Right Door Latch Motor Connector:
