Air Bag Deactivation Switch
Air Bag Deactivation Switch
Passenger Airbag On/Off Switch 2-Way Connector:

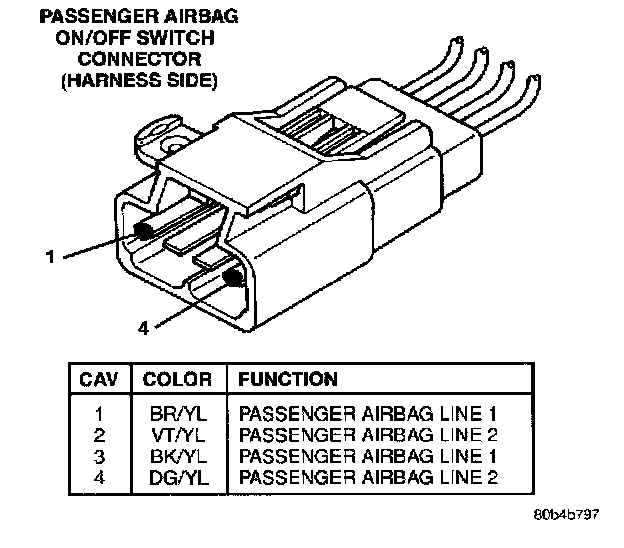

Passenger Airbag On/Off Switch Connector (Harness Side):

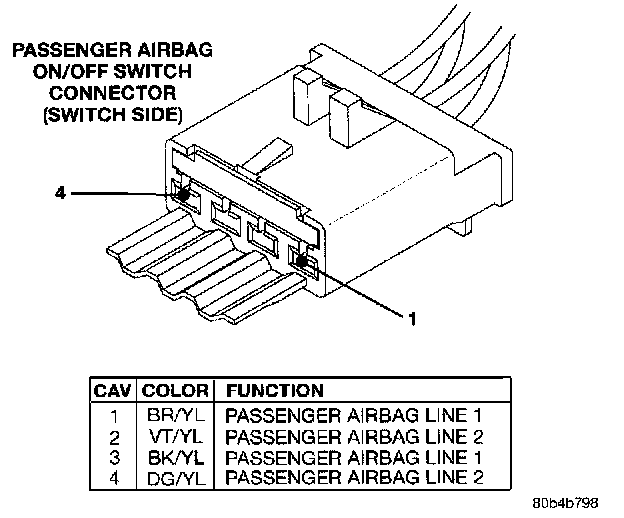

Passenger Airbag On/Off Switch Connector (Switch Side):
