Home
>>
Dodge
>>
1999
>>
Viper RT-10 V10-8.0L VIN E
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Driver/Vehicle Information Display
>>
Diagrams
>>
Connector Views
Connector Views

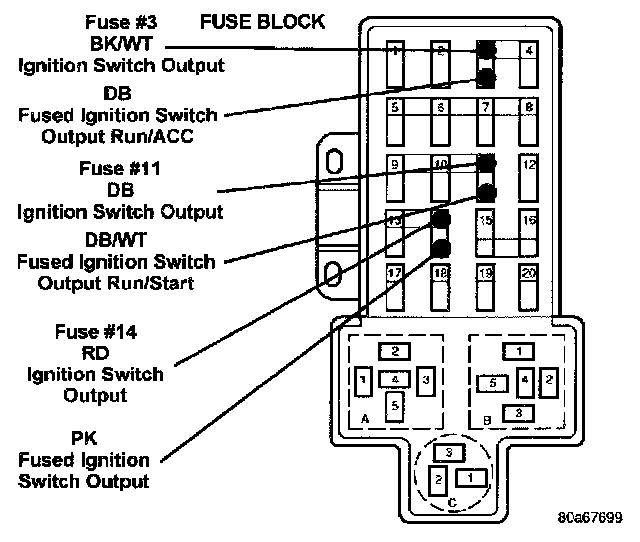

Fuse Block:

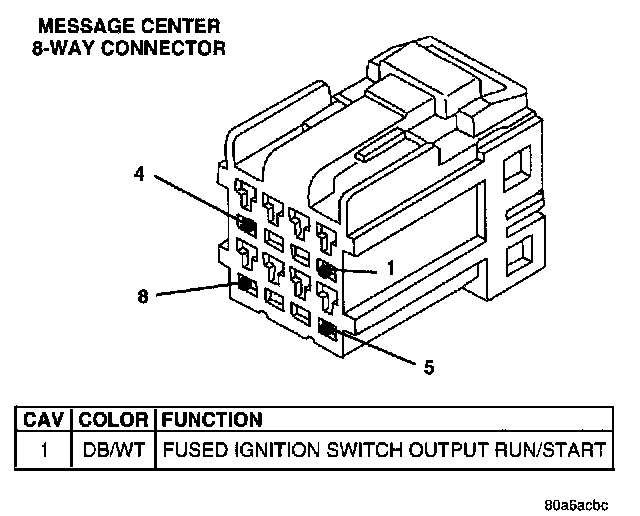

8-Way Message Center Connector:

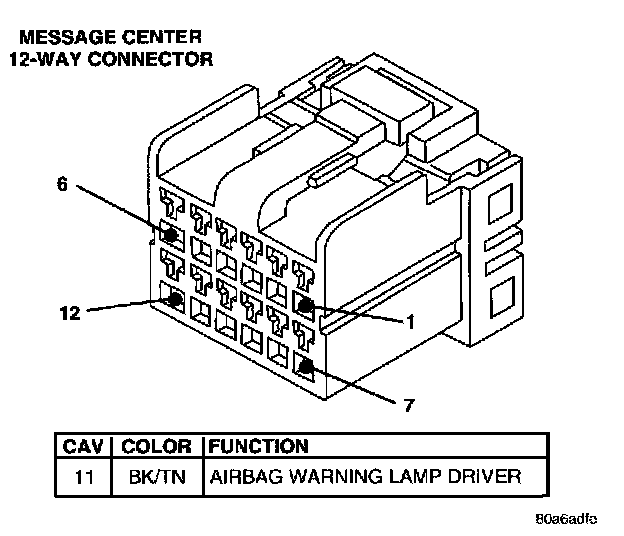

12-Way Message Center Connector:
