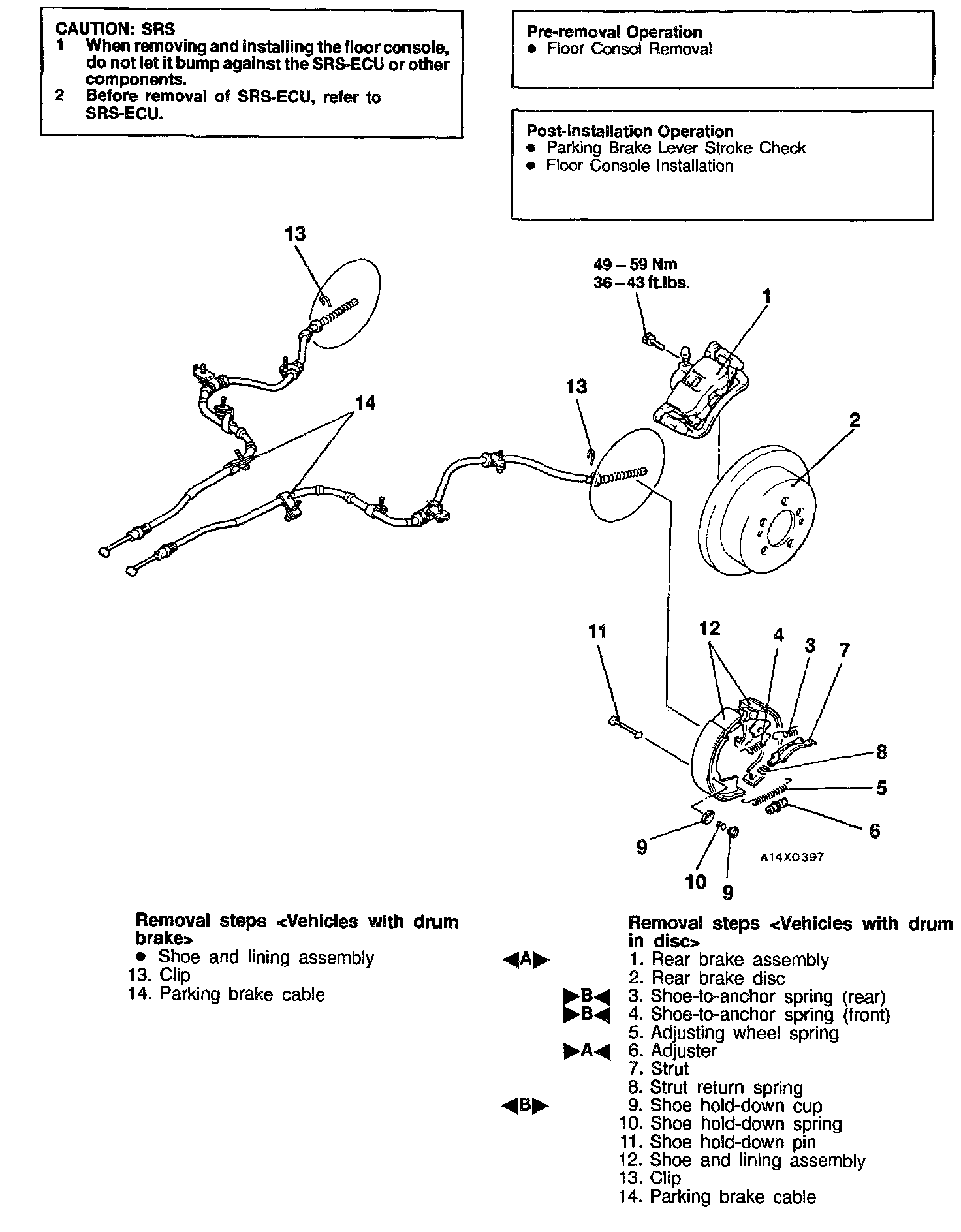

Parking Brake Cable: Service and Repair
REMOVAL
Removal Service Points
Rear Brake Assembly Removal
Removing Rear Brake Assembly:
Remove the rear brake assembly and support it with wire or similar.
Shoe Hold-Down Cup Removal
Removing Shoe Hold-Down Cup:
Extend the shoe and lining assembly, and remove the shoe hold-down cup.
INSTALLATION
Installation Service Points
>A< Adjuster Installation
Installing Automatic Adjuster:
Install the adjuster so that the shoe adjusting bolt of left hand wheel is attached towards the front of the vehicle, and the shoe adjusting bolt of right hand wheel is towards the rear of the vehicle.
>B< Shoe-To-Anchor Spring
Shoe-To-Anchor Spring:
The load on the respective shoe-to-anchor springs is different so the spring in the figure has been painted.
NOTE: The figure shows the left wheel; for the right wheel, the position is symmetrical.
