General Information

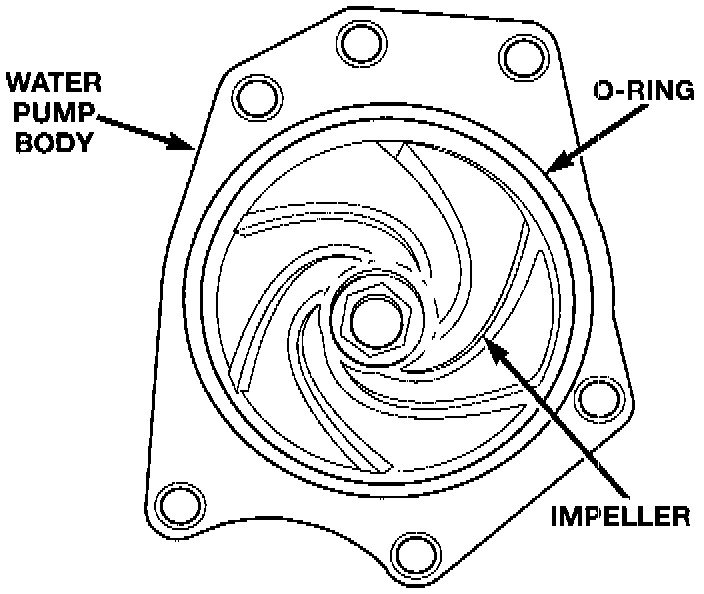

Figure 6-Water Pump-3.2L Engine:

The 3.2L pump has a plastic swept vane impeller. The housing bolts directly to the right rear timing belt cover, using a O-ring gasket for pump to cover sealing. The pump is driven by the engine timing belt.
