Harmonic Balancer - Crankshaft Pulley: Service and Repair

REMOVAL
1. Disconnect negative cable at right strut tower.
2. Remove upper radiator crossmember.
3. Remove fan module. Refer to Cooling System.
4. Remove the accessory drive belts.

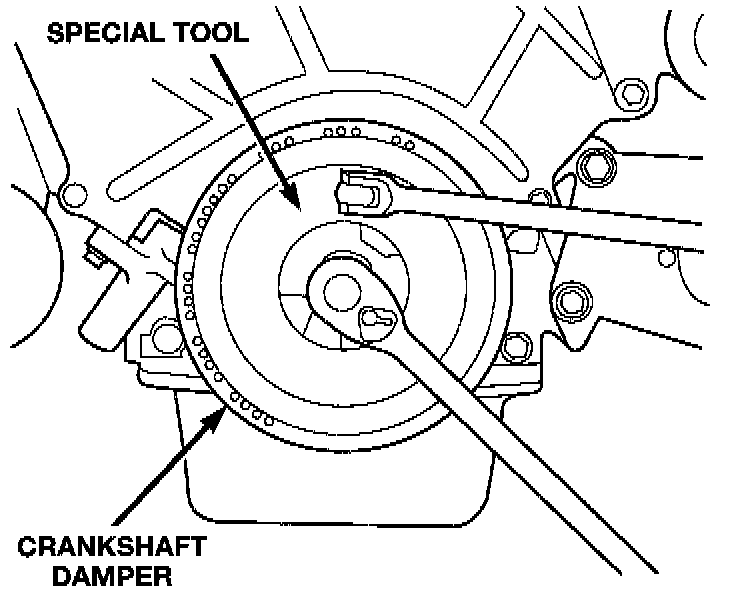

Figure 31-Crankshaft Damper Center Bolt-Removal And Installation:

5. Use Special Tool 8191 to hold crankshaft damper while removing center bolt.

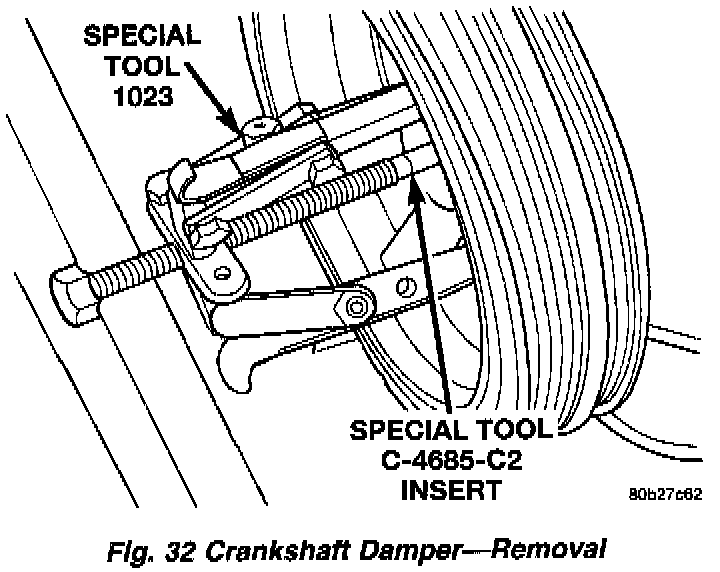

Figure 32-Crankshaft Damper-Removal:

6. Use Special Tool 1023 puller, and insert C-4685-C2, remove crankshaft damper.

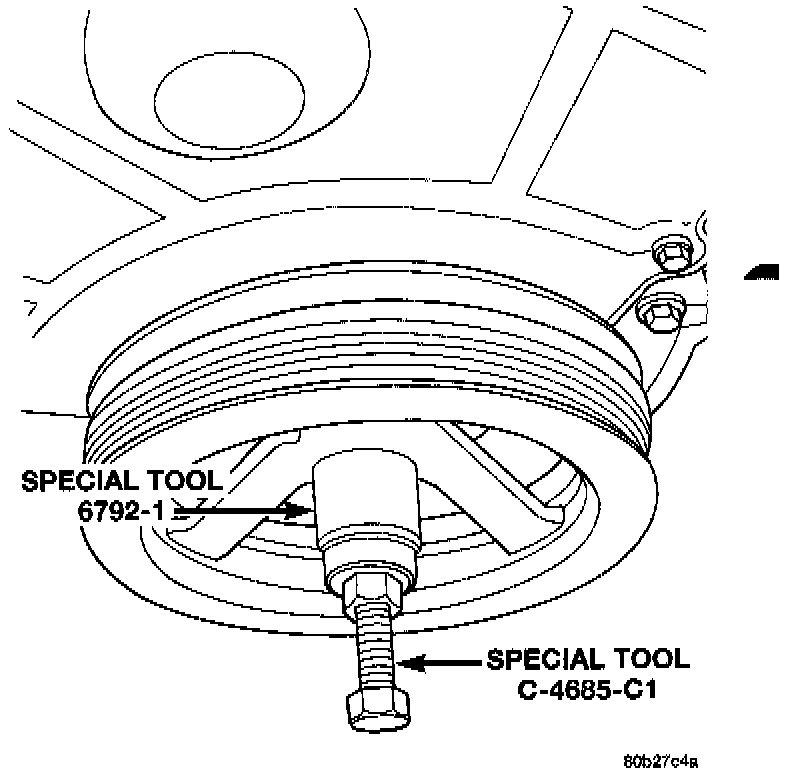

Figure 33 Crankshaft Damper - Installation:

INSTALLATION
1. Install crankshaft damper using Special Tools C-4685-C1 (5.9 inch) Bolt, with Nut and Thrust Bearing from 6792, and 6792-1 Installer. Install center bolt and tighten to 115 Nm (85 ft. lbs.).
2. Install accessory drive belts.
3. Install fan module.
4. Install upper radiator crossmember.
5. Connect negative cable.
