Air Temperature Sensor ( Ambient / Intake )
Air Temperature Sensor ( Ambient / Intake )

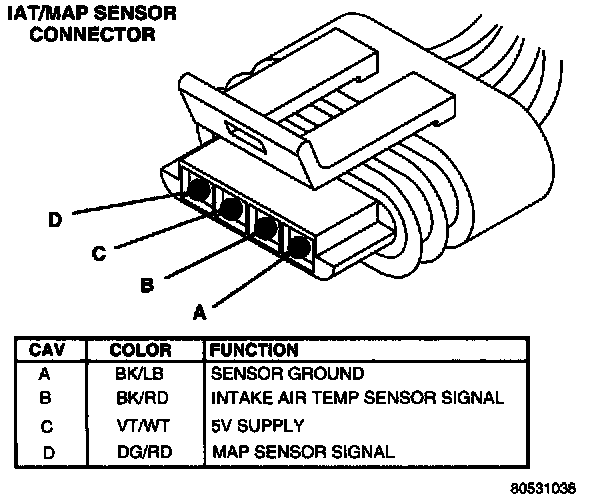

IAT/MAP Sensor Connector:
