NTC-7A Checking Throttle Position Sensor Calibration
NTC-7A Checking Throttle Position Sensor Calibration
Related Image:

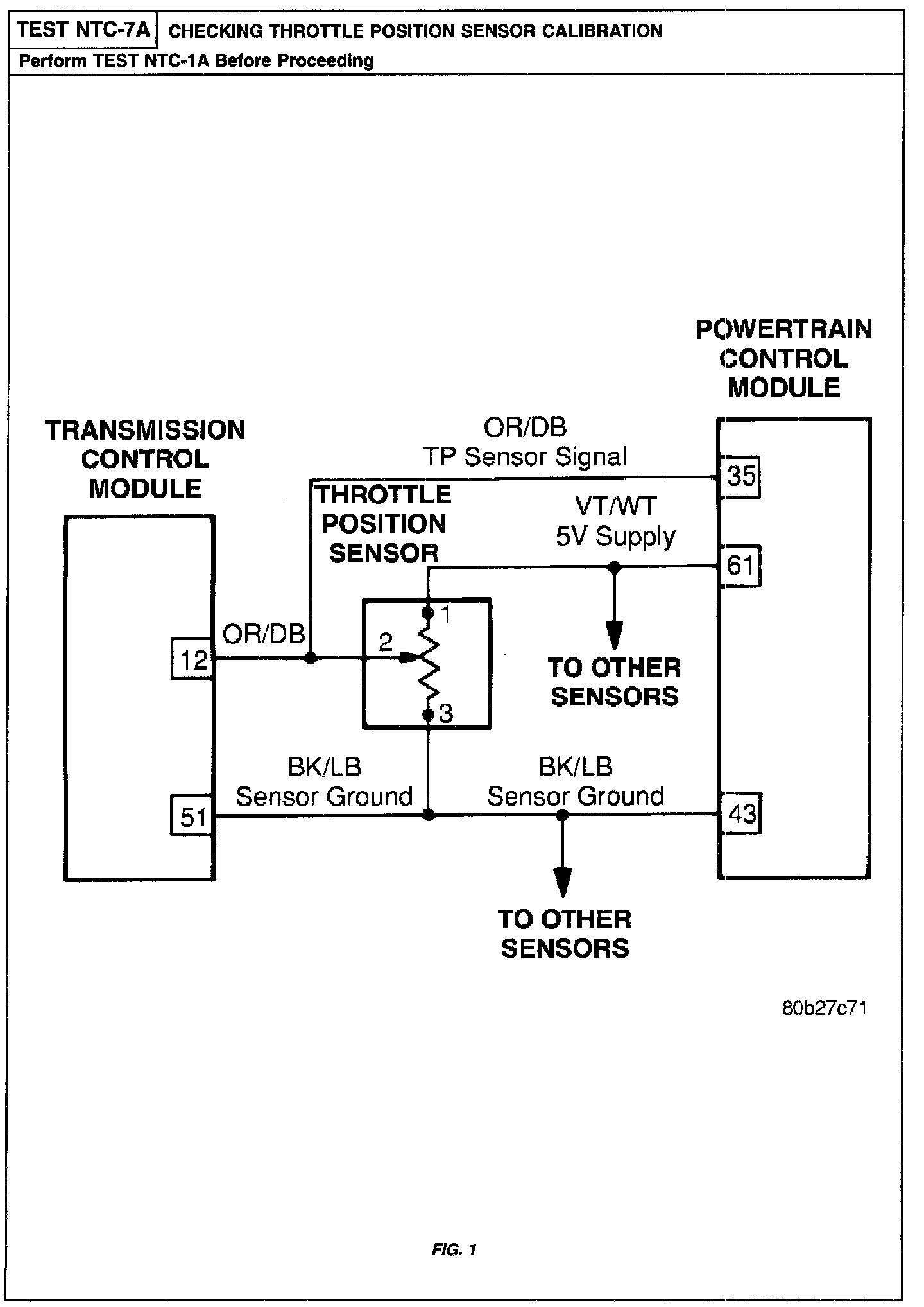

Diagnostic Chart:
