Center Mounted Brake Lamp Bulb: Service and Repair

REMOVAL
1. Release trunk lid latch and open trunk lid.
2. Remove trunk lid cover.

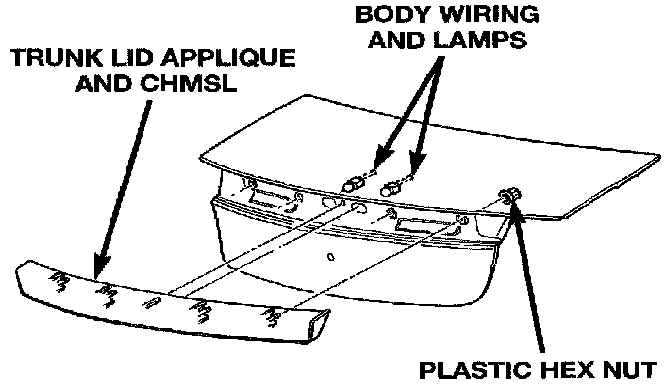

CHMSL - Intrepid:

3. Disconnect lamp socket from housing.
4. Remove bulb from socket.

INSTALLATION
1. Install bulb into socket.
2. Install socket into housing.
3. Verify CHMSL operation.
4. Install trunk lid cover.
